2 to 144 Fibers self-supporting aerial Fiber Optic Cable GYTC8S, excellent mechanical properties Armored Outdoor Optical Cable

Name: 2 to 144 Fibers self-supporting aerial Fiber Optic Cable GYTC8S, excellent mechanical properties Armored Outdoor Optical Cable
Brand: OPELINK
SKU: Y-FO-FC-046
Availability: InStock
Rating: 5 (1 reviews)

Item No.: Y-FO-FC-046

The GYTC8S armored loose tube fiber optic cable,Multimode or singlemode optional，Metal strength member, optical fiber loose tube structure,SZ stranded,cablecore filled with water blocking ointment,double-sided plastic coated steel tape PE sheath.

Product parameters
Brand Name:	OPELINK
Place of Origin:	Guangdong, China
Product name:	GYTC8S Fiber Optic Cable
Low Price:	220.0/km USD

INQUIRY

Description Parameters Company Profile Related product

2 to 144 Fibers Self-Supporting Fiber Optic Cable GYTC8S, excellent mechanical properties
Armoured Outdoor Optical Cable

Description:

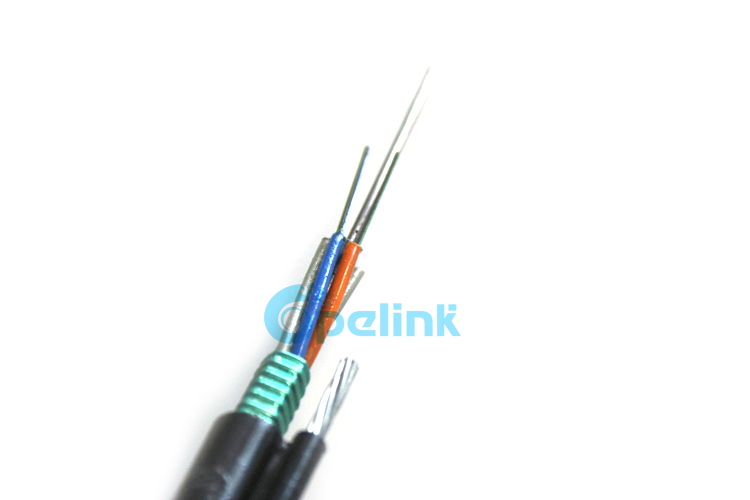

The GYTC8S armoured loose tube fiber optic cable, single-mode/multimode fibers are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic
strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

After a PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are
completed with a PE sheath to be a figure-8 structure.
2 to 144 Fibers GYTC8S self-supporting armored aerial Fiber Optic Cable, This is a product of Opelink that is highly trusted by customers

2 to 144 Fibers GYTC8S self-supporting armored aerial Fiber Optic Cable, This is a product of Opelink that is highly trusted by customers

Features：
.Excellent mechanical and environmental performance
.Small cable diameter, self-supporting, easily to installLow dispersion
.Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features
.Cross section shows figure 8
.Stranded wires as self supporting member providing excellent strain performance and convenient installation
Steel-wire strength member provides good tensility,ensures tensile strength
.Water blocking system to improve the water proof ability

Application：
1. Suitable for Self supporting Aerial
2. Long distance and local area network communication
3. Inter-building voice or data communication backbones.

Technical Parameters:

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm
GYTC8S 2-30	2-30	9.5 x 19.1	160.0	2000/6000	300/ 1000
GYTC8S 32-36	32-36	10.1 x 19.7	170.0	2000/6000	300/ 1000
GYTC8S 38-60	38-60	10.8 x 20.4	180.0	2000/6000	300/ 1000
GYTC8S 62-72	62-72	12.4 x 22.0	195.0	2000/6000	300/ 1000
GYTC8S 74-96	74- 96	13.1 x 22.7	222.0	2000/6000	300/ 1000
GYTC8S 98-120	98-120	15.7 x 22.3	238.0	2000/6000	300/ 1000
GYTC8S 122-144	122-144	15.5 x 25.1	273.0	2000/6000	300/ 1000

Note:For more details, please contact our sales
