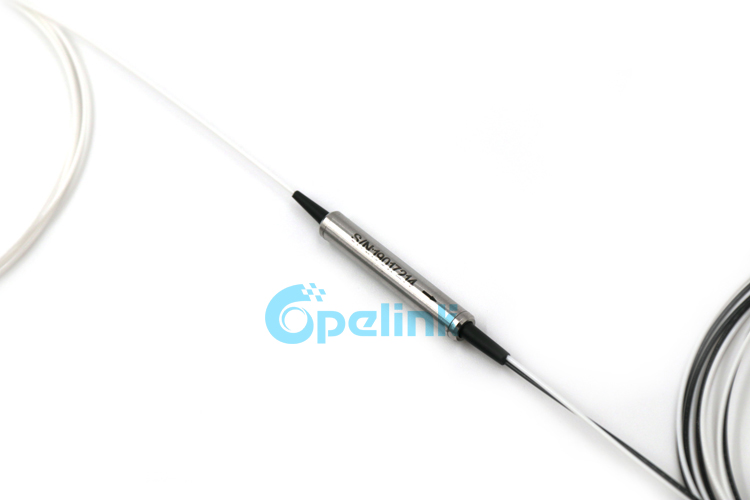

1x2 Fiber Optic PM PBS Polarization Beam Combiner / Splitter

Item No.: Y-FO-FS-010
The Polarization Beam Combiner / Splitter PBC / PBS can be used either as a polarization beam combiner to combine light beams from two PM input fibers into a single output fiber
INQUIRY
Description Parameters Company Profile Related Product
Description:
The Polarization Beam Combiner / Splitter PBC / PBS can be used either as a polarization beam combiner to combine
light beams from two PM input fibers into a single output fiber, or as a polarization beam splitter to split light from an input
fiber into two output fibers of orthogonal polarization states.

The splitters feature a rugged miniature housing to fit into compact spaces in equipment and systems. Light from a fiber is
first collimated, then sent through a beamsplitting optic to divide it into two beams by either a fixed ratio or into two orthogonal
polarizations. The resultant output beams are then coupled back into the output fibers.



Features:
Low Insertion Loss
High Stability and Reliability
High Reliability&Stability
High Extinction Ratio
Low Polarization Dependent Loss (PDL)
Low Wavelength Dependent Loss (WDL)


Applications:

EDFA & Raman Amplifier
Fiber Sensor System
Fiber Laser System
R&D Laboratories
Coherent communication systems
Polarization Division Mux/Demux
Polarization Mode Dispersion Compensator
Polarization extinction ratio measurements




Tags:
Fiber Optic PLC Splitter  | Optical CWDM/DWDM/AWG  | FTTH Drop Fiber Optic Cable  | Fiber Optic PatchCord/jumper/Patch cable  |
Fiber Optic Fast Connector  | Optical Switch  | Fiber Optic Adapter  | Fiber Optic Attenuator  | Fiber Optic Cable TerminalBox |

Specifications:
Parameter Unit Values
Center Wavelength nm 1310,1480,1550
Operating Wavelength Range nm ±40
Typ. Insertion loss dB  0.5
Max. Insertion loss dB 0.7
Min. Return Loss dB 50
Min. Extinction Ratio (for Splitter only) dB 22 20
Min. Directivity dB 50
Max. Optical Power (CW) mW 500
Max. Tensile Load N 5
Fiber Type   PM Panda Fiber on Port 1 & 2;Singlemode Fiber or PM Panda Fiber on Port 3
Operating Temperature -5 to +70
Storage Temperature -40 to +85
Note:Above specifications are for device without connector.
           For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
