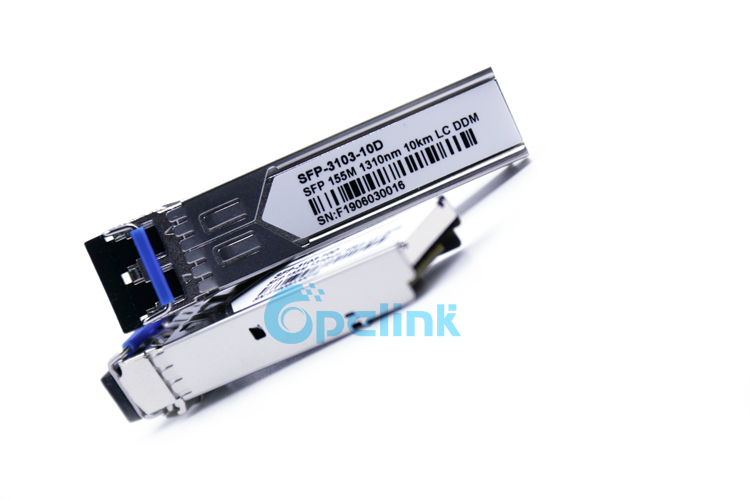

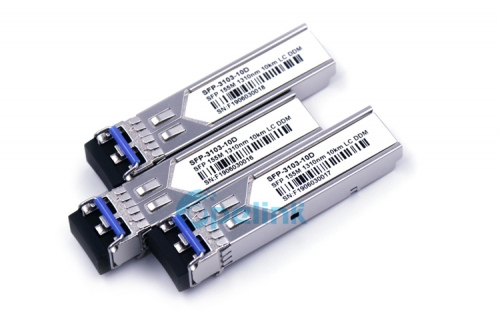

155Mbps SFP Optical Transceiver with DDM

Item No.: Y-FO-SF-005
The SFP Optical Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)
  • Brand Name: OPELINK
  • Place of Origin: Guangdong, China
  • Product name: SFP Optical Transceiver
  • Description


    The SFP transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 10km

    transmission distance with SMF.The transceiver consists of three sections: an uncooled DFB laser

    transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All

    modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source

    Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

    155Mbps SFP Optical Transceiver


    .Dual data-rate of 155Mbps operation

    .DFB wavelengths laser and PIN photodetector for 20km transmission

    .Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

    .Digital Diagnostic Monitoring:Internal Calibration or External Calibration

    .Compatible with SONET OC-24-LR

    .Compatible with RoHS

    .+3.3V single power supply

    .Operating case temperature: Commercial Temperature: 0 to +70°C; Industrial Temperature: -40 to +85°C

    .Gigabit Ethernet
    .Fiber Channel
    .Switch to Switch interface
    .Switched backplane applications
    .Router/Server interface
    .Other optical transmission systems



    Model No.: SFP Module
    Max. Data Rate: 155Mbps
    Operating Wavelength: 1310nm
    Transmission Distance: 10KM
    ROHS Lead Free: Yes
    Media Type: Singlemode
    Transmitter: DFB
    Receiver: PIN
    Voltage Supply(V): 3.3V
    Operating Temperature(℃): 0℃~70℃
    Connector:; LC
    Hot pluggable: Pluggable
    Certification: CE/FCC/RoHS/TUV/UL

    Note:For more details, please contact our sales
