Description

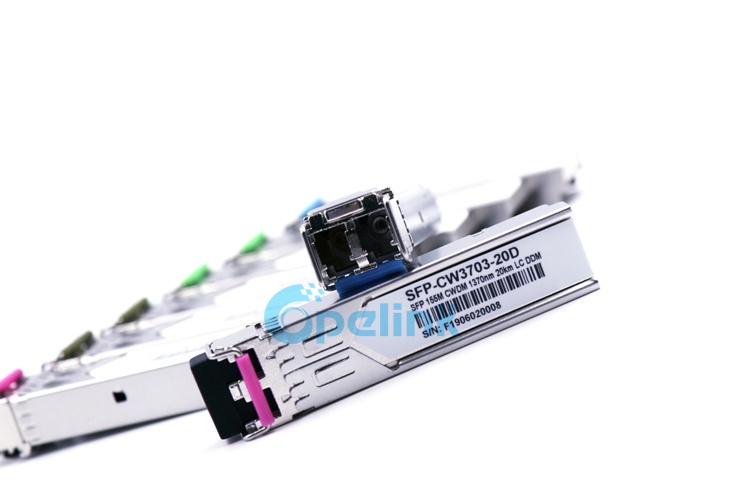

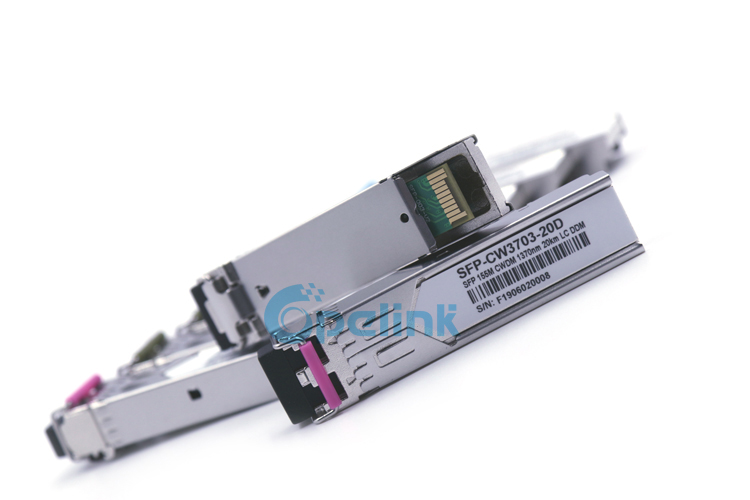

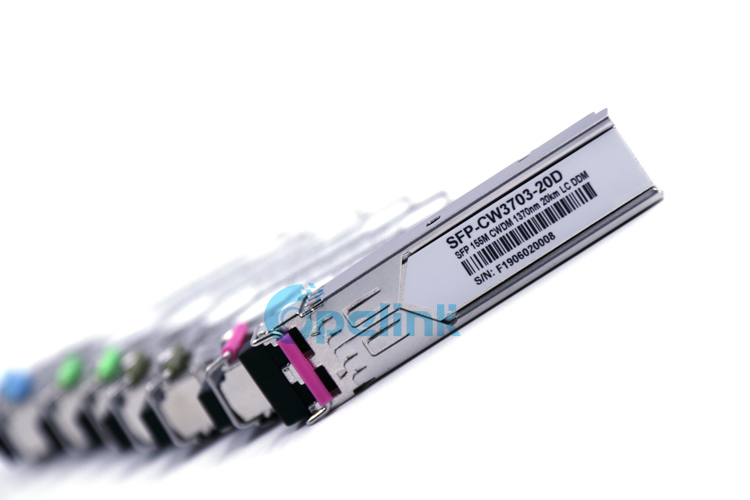

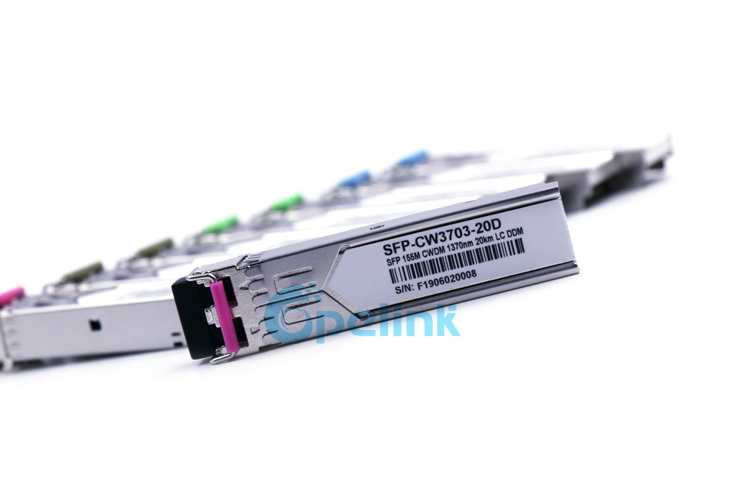

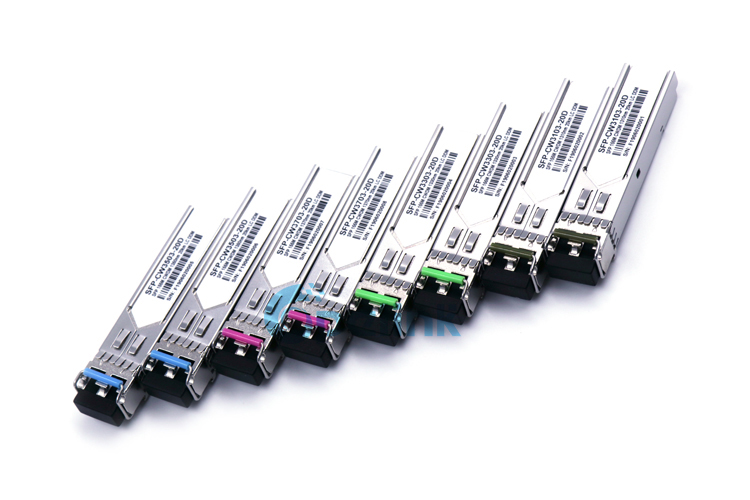

The SFP transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 20km
transmission distance with SMF.The transceiver consists of three sections: an uncooled CWDM DFB laser
transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All
modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source
Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features
.Dual data-rate of 155Mbps operation
.CWDM DFB wavelengths laser and PIN photodetector for 20km transmission
.Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
.Digital Diagnostic Monitoring:Internal Calibration or External Calibration
.Compatible with SONET OC-24-LR
.Compatible with RoHS
.+3.3V single power supply
.Operating case temperature: Commercial Temperature: 0 to +70°C; Industrial Temperature: -40 to +85°C
Application
.Gigabit Ethernet
.Fiber Channel
.Switch to Switch interface
.Switched backplane applications
.Router/Server interface
.Other optical transmission systems
Specification
| Model No.: | SFP CWDM Module |
| Max. Data Rate: | 155Mbps |
| Operating Wavelength: | 1270nm~1610nm |
| Transmission Distance: | 20KM |
| ROHS Lead Free: | Yes |
| Media Type: | Singlemode |
| Transmitter: | DFB |
| Receiver: | PIN |
| Voltage Supply(V): | 3.3V |
| Operating Temperature(℃): | 0℃~70℃ |
| Connector:; | LC |
| Hot pluggable: | Pluggable |
| Certification: | CE/FCC/RoHS/TUV/UL |
Note:For more details, please contact our sales
