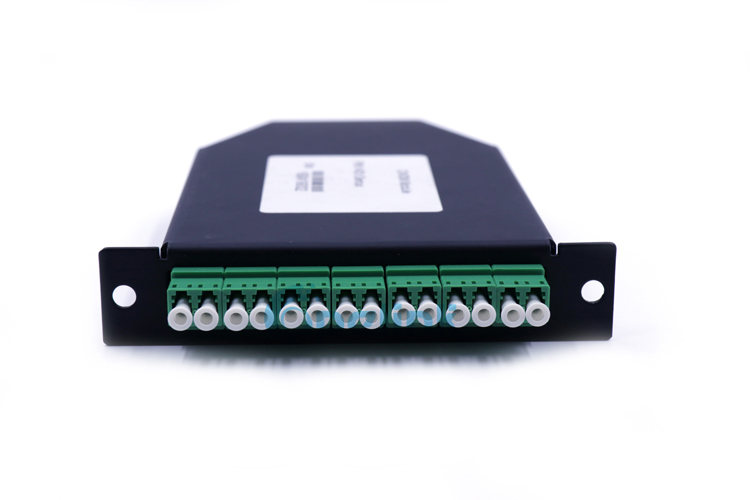

| Type | Channel Passband | Upgrade Port | Port | First Channel |
Pigtail | Fiber | Length | Connector （Input-Output） |
Package |
| M=Mux D=Demux M+D=Mux+ Demux |
1=100GHz 2=200GHz |
U= Yes 0= No |
1002=1X2 1004=1X4 1008=1X8 1016=1X16 XX=other |
C21 C22 C23 (Refer to ITU Channel Table) |
L=900um loose tube 2=2.0mm 3=3.0mm B= baare fiber A= Adaptor |
S1=G652D S2=G657A1 X= other |
0.5M=0.5M 1M=1M X=other |
SU=SC/UPC SA=SC/APC FU=FC/UPC FA=FC/APC ST=ST/UPC LA=LC/APC LU=LC/UPC 00=NONE XX= Other |
01,02,03, 04,05 H,L,U,G,X |
| 1CH | 2/4CH | 8CH | 16/18/40/48CH |
| 05 | 01/L/G/U | 02/L/G/U | 03/L/H/G/U |
| 04 |
| No. | Dimension | No. | Dimension |
| 05 | Φ5.5×L38 Stainless steel tube | 02 | 120× 80× 18 Plastic box |
| 04 | 90 X 20 X 9.5 Plastic box | L | 150 × 115 × 18 Aluminum box |
| 01 | 100 × 80 × 10 Plastic box | W | 150X65X16 |
| H | 150 × 115 × 18 Plastic box | Y | 127X70X11 |
| B | Φ5.0×L38 Stainless steel tube | U | 19’’x＝1,2,3,4 U rack mount |
| G | LGX box : 1G, 2G, 3G, 4G | X | Customized package |
| 03 | 141× 115 × 18 Plastic box |
| Parameter | Value | |||||
| Channels Number | 2 | 4 | 8 | 16 | 18 | |
| Central Wavelength(nm) | ITU-T Grid | |||||
| Bandwidth(@0.5dB Pass band)(nm) | ITU-T ±6.5 | |||||
| Channel Pass band(nm) | 20 | |||||
| I.L(dB) | Typ. | 1.2 | 1.6 | 2.2 | 3.2 | 3.8 |
| MAX. | 1.4 | 1.8 | 2.8 | 5.0 | 5.6 | |
| Ripple(dB) | ≤0.3 | |||||
| PDL(dB) | ≤0.10 | ≤0.15 | ≤0.20 | ≤0.25 | ≤0.30 | |
| Isolation(dB) | Adjacent Channel | ≥30 | ||||
| Non-adjacent Channel | ≥45 | |||||
| Directivity(dB) | ≥50 | |||||
| R.L(dB) | ≥45 | |||||
| Operating Temperature(℃) | -5~+75 | |||||
| Storage Temperature(℃) | -40~85 | |||||
| Note: 1.All the data above does not include connectors 2.For more details, please contact our sales |
||||||
