12CH CCWDM Module, 0.9mm LC/APC Optical Compact CWDM

Item No.: Y-FO-WD-019
Based on thin film filter, the CCWDM (Compact CWDM) MUX/DEMUX is a multi-channel CWDM device with compact package designed for cost-effective multi-wavelength CWDM network applications.
Description Parameters Company Profile Related Product
Description:
The CCWDM (Compact CWDM) MUX/DEMUX is a multi-channel CWDM device with compact package designed for
cost-effective multi-wavelength CWDM network applications. It is based on the Thin Film Filter (TFF) technology and and
free-space technology platform.

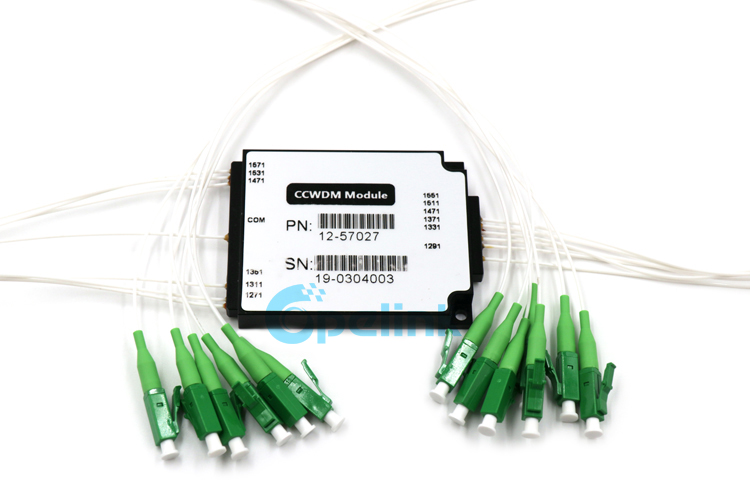

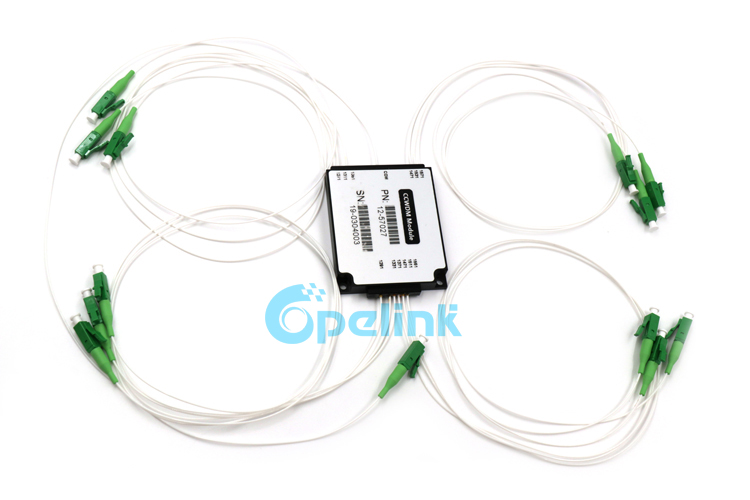

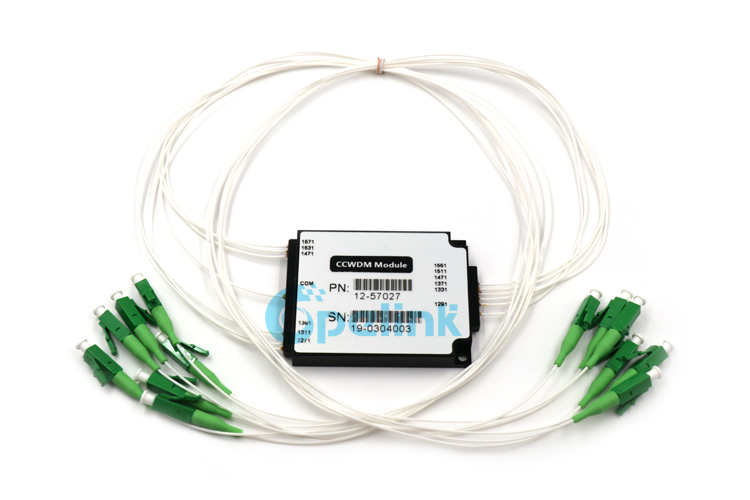

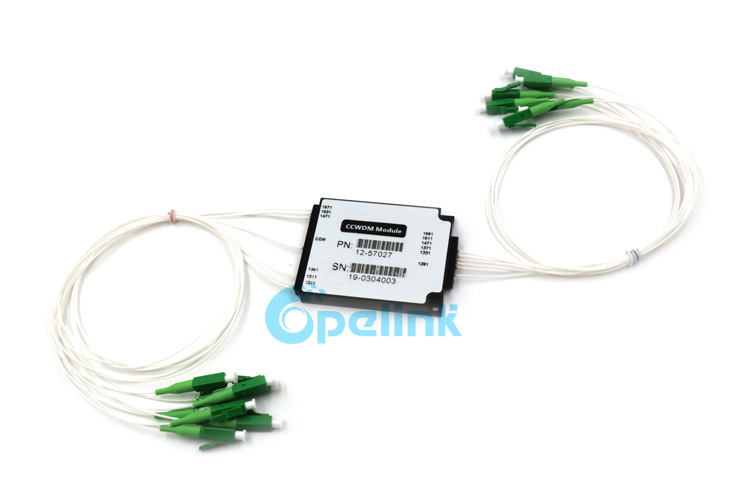

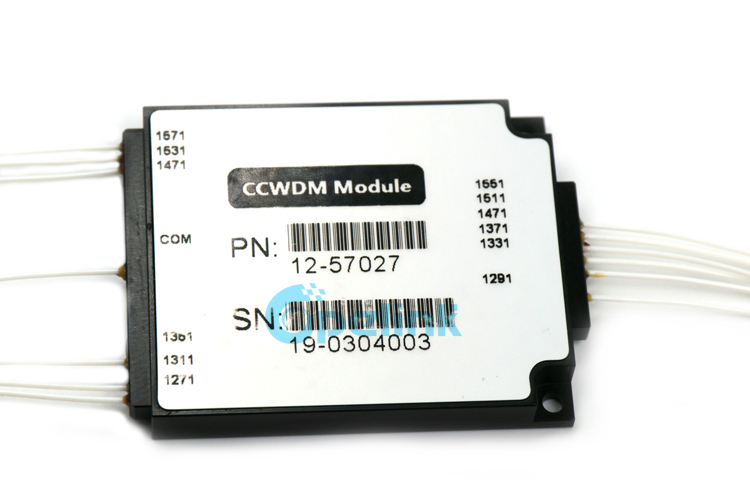

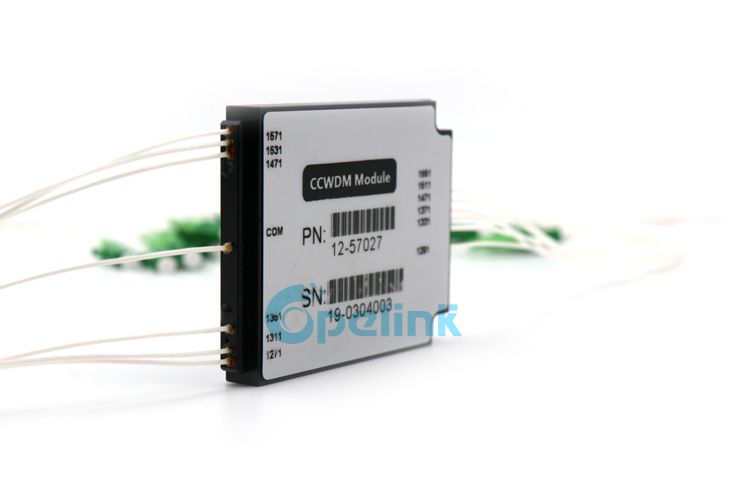

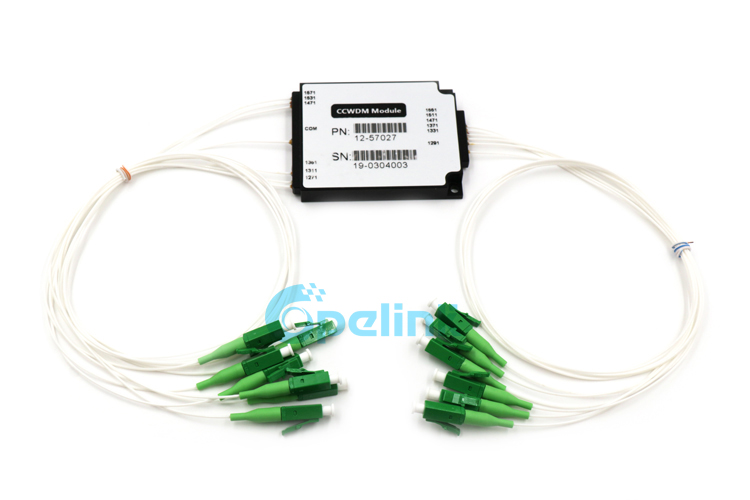

12CH CCWDM Module, LC/APC connector
Features:
High isolation
Compact design
Low Insertion Loss
High reliability and high stability
Low Polarization Dependent Loss
Wide operating wavelength range
Good channel-to-channel uniformity


Application:
Line Monitoring
CWDM Network
Telecommunication
Metro Area Networks
Access Network


Optical Specifications:
Parameter Value
Channels Number 4 8 12 18
Central Wavelength(nm) 1270-1610
Operating Wavelength(nm) 1260-1620
Bandwidth(@0.5dB Pass band)(nm) ITU-T ±6.5
Channel Pass band(nm) 20
I.L(dB) Typ. 1.2 1.5 2.0 2.5
MAX. 1.4 1.8 2.8 3.2
Ripple(dB) ≤0.4
PMD(dB) ≤0.1
PDL(dB) ≤0.20
Isolation
(dB)
Adjacent Channel ≥30
Non-adjacent Channel ≥40
Maximum optical Power(mw) 300
Directivity(dB) ≥50
R.L(dB) ≥45
Operating Temperature() -5~+75
Storage Temperature() -40~85
Note:1. All the data above does not include connectors
         2.For more details, please contact our sales
