Description

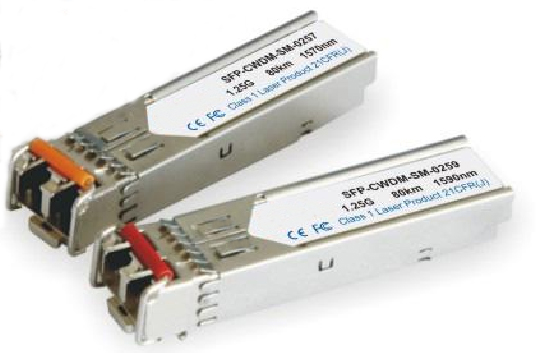

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier
(TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features
.Data-rate of 1.25Gbps operation
.
CWDM DFB wavelengths laser and PIN photodetector for 80km transmission
.
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
.Digital Diagnostic Monitoring:Internal Calibration or External Calibration
.Compatible with SONET OC-24-LR-1
.+3.3V single power supply
.
Operating case temperature: Commercial Temperature: 0 to +70°C; Industrial Temperature: -40 to +85°C
Applications
.
Gigabit Ethernet
.
Fiber Channel
.Switch to Switch interface
.
Switched backplane applications
.Router/Server interface
.Other optical transmission systems
