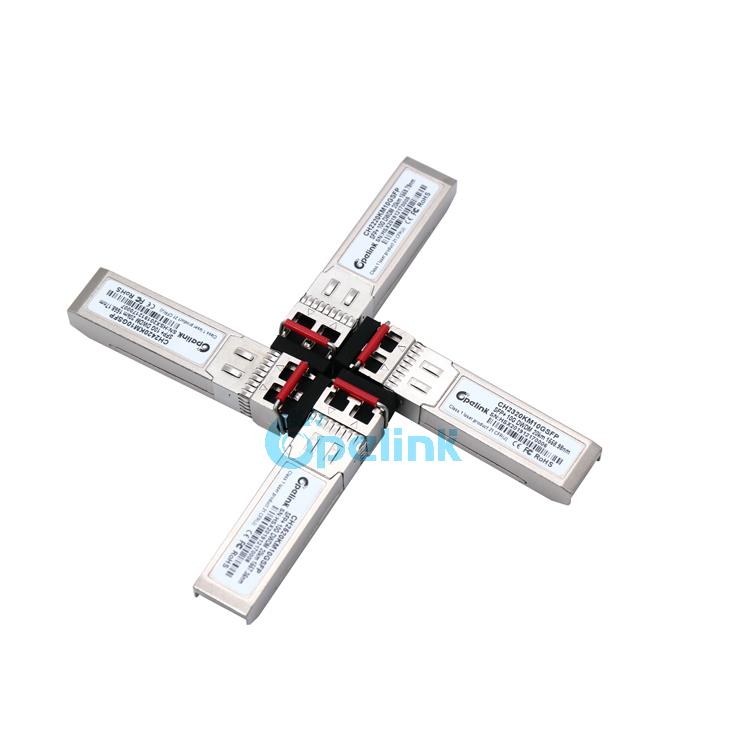

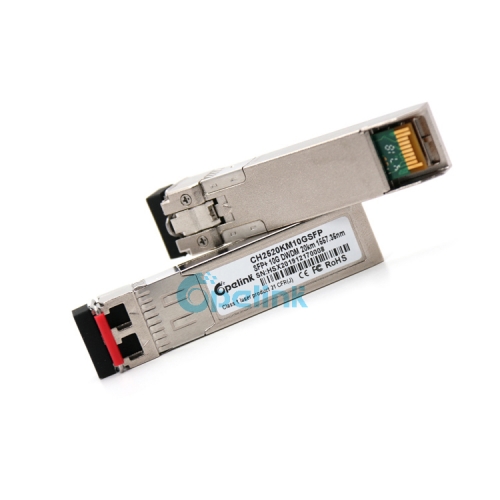

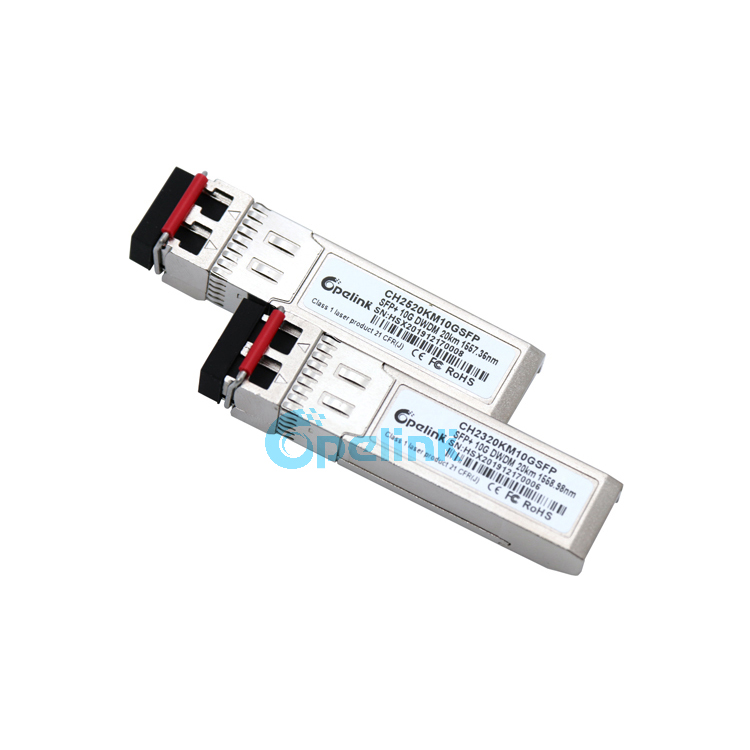

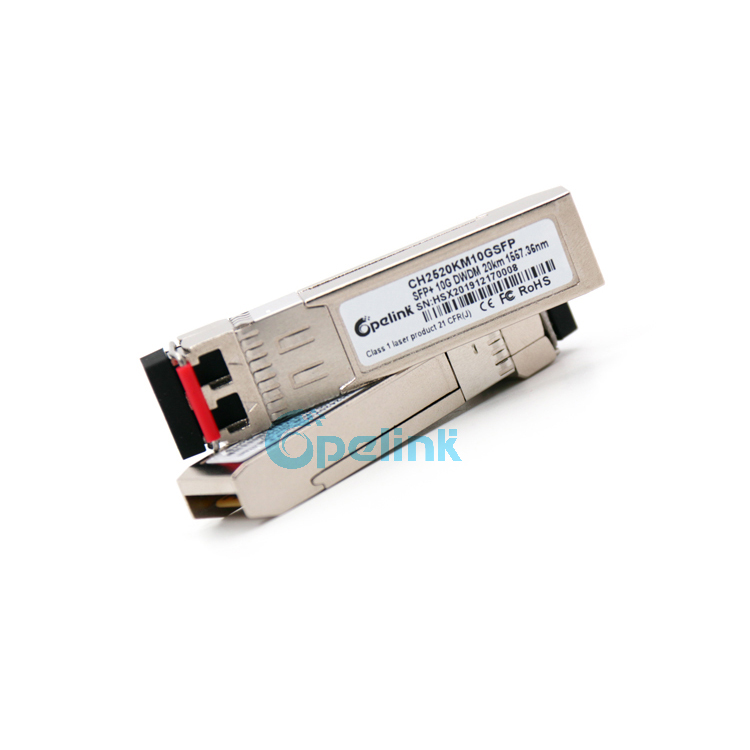

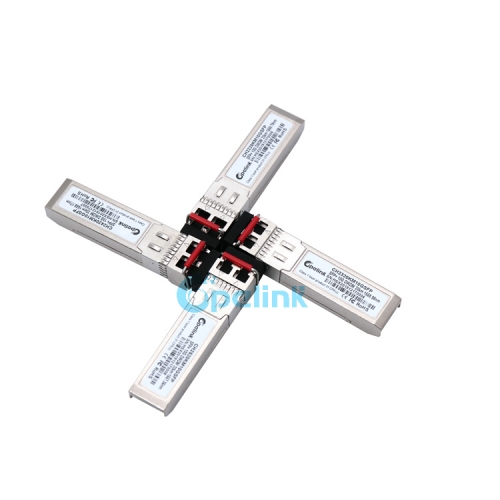

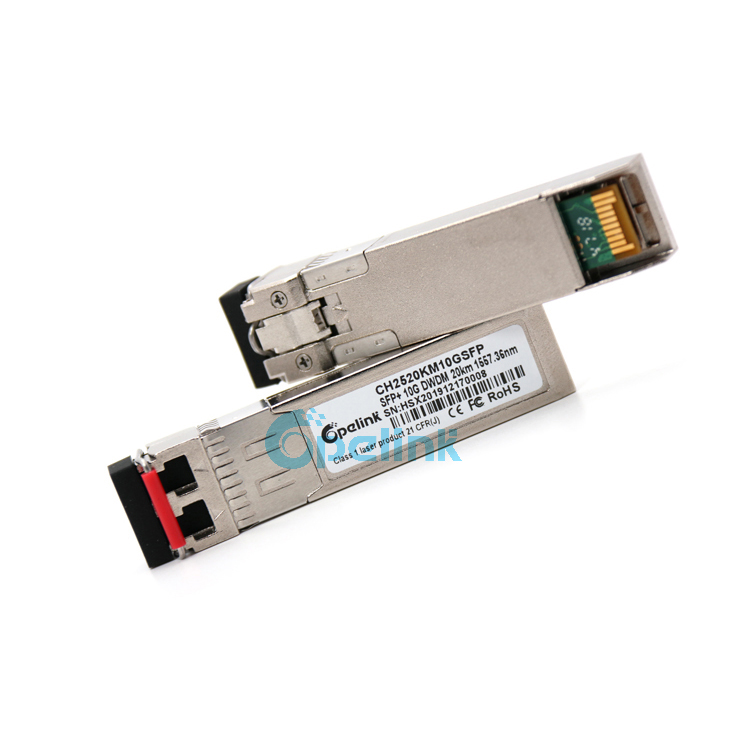

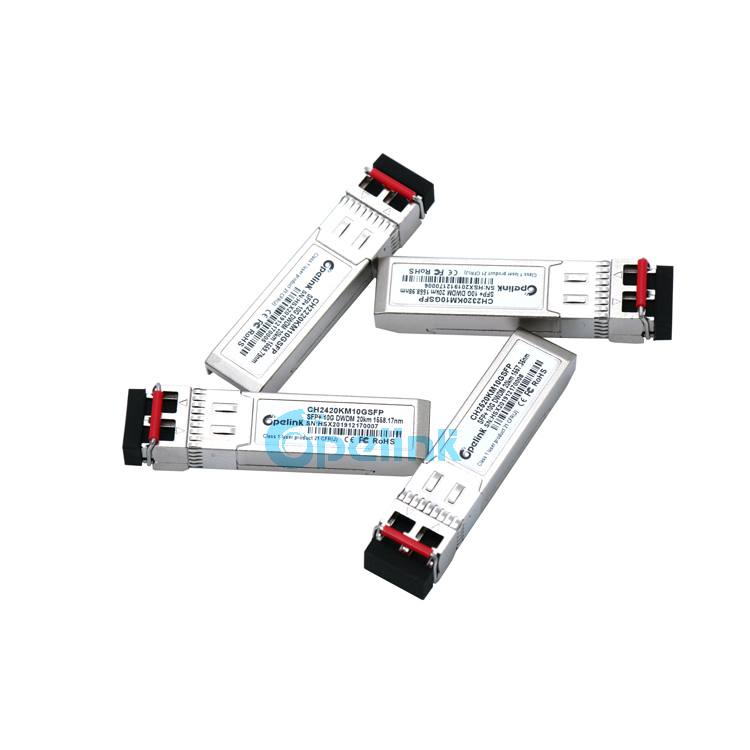

10Gb/s 20km SFP DWDM Transceiver Module for Data Channel

Item No.: Y-FO-SF-002
The SFP transceivers are high performance, cost effective modules supporting data-rate of 10Gbps and 20km transmission distance with SMF.
Description

Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 10Gbps and 20km transmission distance
with SMF. They are compliant with SFF-8431,SFF-8432, 10GFC Rev 4.0, and 10GBASE-ER/EW. The transmitter converts serial EML
electrical data into serial optical data compliant with the IEEE 802.3ae standard. The receiver converts serial optical data into serial EML
electrical data.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

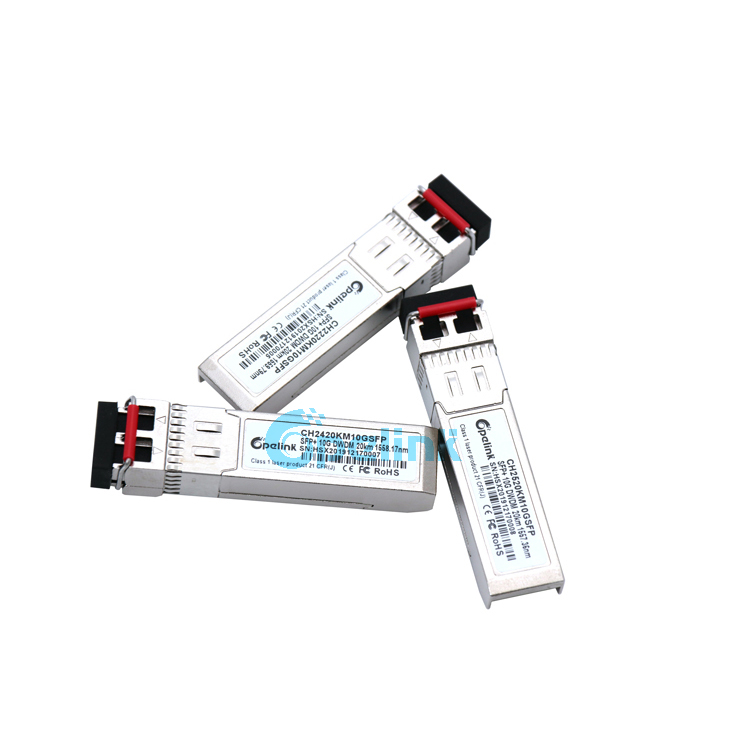

10Gb/s 20km SFP DWDM Transceiver Module

Features

.Compliant to SFP+ MSA
.Fully RoHS Compliant
.All metal housing for superior EMI performance
.Operating data rate up to 10Gbps
.High sensitivity Pin photodiode and TIA
.LC duplex connector
.Hot pluggable 20pin connector
.Low power consumption <1.5 W
.0℃ to 70℃ operating wide temperature range
.Single +3.3V±5% power supply
.Digital Monitoring SFF-8472 Rev 10.2 compliant


Application
.10GBASE-ER/EW
.10G Fiber Channel
.SFP+ MSA (SFF-8472)
.IEEE802.3ae

Specification

Model No.: SFP DWDM module
Max. Data Rate: 10Gbps
Operating Wavelength: ITU-T Grid
Transmission Distance: 20KM
ROHS Lead Free: Yes
Media Type: Singlemode
Transmitter: DFB
Receiver: PIN
Voltage Supply(V): 3.3V
Operating Temperature(℃): 0℃~70℃
Connector:; LC
Hot pluggable: Pluggable
Certification: CE/FCC/RoHS/TUV/UL

Note:For more details, please contact our sales
