Sub-unit Optical Fiber Distribution Cable, Multi-Fiber Indoor cabling Fiber Optic Cable, Up to 144 cores Multi Purpose Singlemode Fiber Cable

Item No.: Y-FO-FC-051

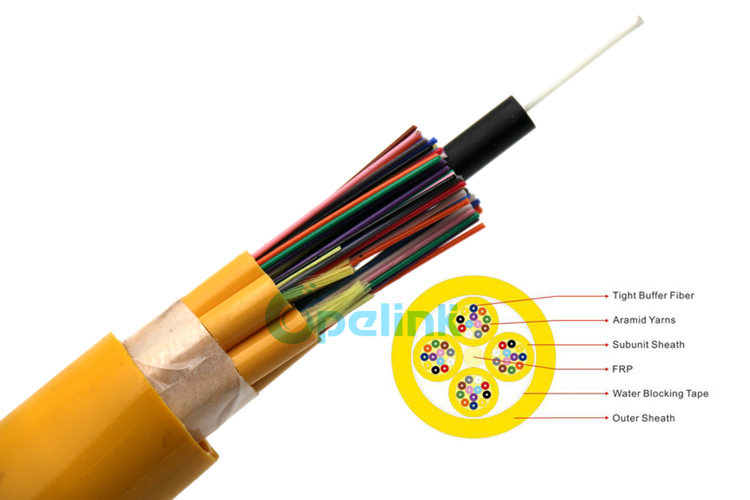

Our Sub-unit Optical Fiber Distribution Cable is Multi Purpose indoor Cabling Cable. Up to 144 cores, the distribution optical cable adopts a "sub-unit" design, which can simplify fiber identification, provide easy access and wiring of optical fiber
INQUIRY
Description Parameters Company Profile Related Product
Description:
Our Sub-unit Optical Fiber Distribution Cable is Multi Purpose indoor Cabling Cable. Up to 144 cores, the distribution optical cable adopts
a "sub-unit" design,which can simplify fiber identification, provide easy access and wiring of optical fiber, and improve the durability of the
optical cable through a dielectric central strength member.



Features:
Layer stranding type optical cable structure, non-metallic center strengthening core makes the optical cable can withstand greater tension;
The outer protective material has the advantages of corrosion resistance, waterproof, UV protection, flame retardant, environmental protection, etc;
Aramid strengthening elements, so that the optical cable has excellent tensile performance;


Application:
Used in pigtails and patchcords;
Used as access building cable;
Used in optical connections in optical communication equipment rooms and optical distribution frames;
Used in indoor cabling, especially used as breakout cable;
Specification:
Fiber count Cable OD(mm) Cable Weight(kg/km) Tensile
(N)
Crush
(N/100mm)
Bengding Radius(mm)
    PVC Jacket LSZH Jacket Long Term /Short Term Long Term /Short Term Static/Dynamic
24 12.3±0.5 117 124 200/660 300/1000 20D/10D
36 14.5±0.5 171 180 200/660 300/1000 20D/10D
48 14.8±0.5 161 170 400/1320 300/1000 20D/10D
72 17.5±0.5 244 254 400/1320 300/1000 20D/10D
96 20.7±0.5 351 366 400/1320 300/1000 20D/10D
144 24.8±0.5 443 451 400/1320 300/1000 20D/10D

Note:For more details, please contact our sales
