ST-ST Metal Female to Male Fiber Optic Attenuator, Plug-in Fixed Optical Attenuator

Item No.: Y-FO-OA-021
Opelink Optical Plug-in Attenuator(male-female) is avaliable in FC, SC, LC,ST and MU plug-in type. It's a precision device designedto provide accurate attenaution for a variety of network applications such as reducing the power level of an optical signal.
Description Parameters Company profile Related Product
Description:
ST-ST Fixed optical attenuators are used in the fiber optic links to reduce the optical power at a certain level.Commonly used fiber optic attenuators
are the female to male type, which is also called a plug fiber attenuator. They are with ceramic ferrules and there are various types to fit
different kinds of fiber optic connectors. Fixed value fiber optic attenuators can reduce the optical light power at a fixed level,Variable fiber
optic attenuators are with adjustable attenuation range. There are also attenuation fiber optic patch cables available, their function is same
as attenuators and are used inline.

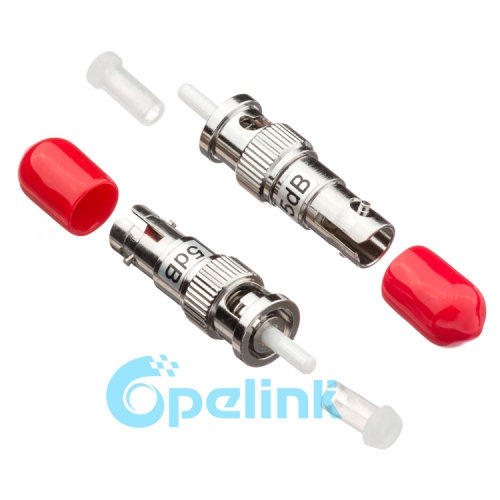

ST-ST Metal Female to Male fixed Optical Attenuator
Features:
Pluggable
Environmentally stable
High performance
Broadband coverage
Complied with Telcordia (GR-910-CORE and GR-1221-CORE)

Applications:
Power management in optical networks
Wavelength division multiplexing(WDM) system channel balancing
Erbium Doped Fiber Amplifiers (EDFA)
Optical add-drop multiplexers(OADM)
Receiver protection
Test equipment
compensation of different connector attenuation



Specifications:
Connector Type FC,SC,ST,LC,MU,Hybrid,etc.
Attenuation Value 1dB ~ 30dB
Model Fixed, In-line, Variable,Adapter (Female to Female), Connector (Male to Female)
Operating Wavelength SM:1240 ~ 1620nm (Dual 1310/1550nm) MM:850/1300nm
Return Loss UPC >55dB,APC >60dB
Attenuation Tolerance +/-0.5 dB for 1 to 5dB attenuation
+/-10% for 6 to 30dB attenuation
Maximum Optical Input Power: 1000mW(SM);200mW(MM)
Polarization Dependent Loss: ≤0.2dB
Exchangeability: ≤0.2dB
Repeatability: ≤0.2dB
Durability:≤0.2dB Typical 1000 matings
Operating Temperature Range: -40 ºCto 75ºC
Storage Temperature Range: -40ºC to 85ºC
Humidity: 95%RH
