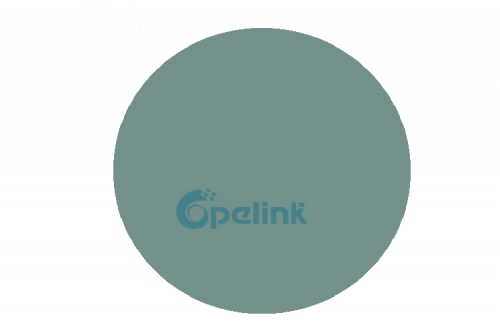

Silicon Carbide polishing paper for Use in Fiber Optic Connectors Grinding and Polishing

Item No.: Y-FO-LF-011
Silicon carbide polishing paper adopts ultra-precision coating technology. It uniformly disperses micron-sized silicon carbide powder with environmentally friendly high polymer materials, and coats it on the surface of a high-strength film.
Description

Description:

Silicon carbide polishing paper adopts ultra-precision coating technology. It uniformly disperses micron-sized silicon carbide powder with environmentally friendly high polymer materials, and coats it on the
surface of a high-strength film. It is then processed through high-precision cutting techniques.



Features:

.Excellent polishing effect suitable for fine surface treatment with different precision requirements.

.Stable quality with good consistency in polishing.

.Good durability and high grinding efficiency, effectively reducing production costs.

.Suitable for dry polishing and also suitable for polishing with water or oil as grinding medium.


Applications:

.Cutting angle, rough grinding, medium grinding, fine grinding of fiber connectors.

.Grinding and polishing of optical lenses, optical crystals, LEDs, LCDs.

.Polishing of magnetic heads and hard drives.

.To meet the ultra-precision grinding and polishing requirements of MPO/PC-12, MPO/PC-16, MPO/APC-16, MPO/PC-24, MPO/APC-24, FC/UPC, SC/UPC, ST/UPC, LC/UPC, MU/UPC, FC/APC,
MT-RJ, E2000 and other multimode/single-mode fiber connectors. also researched and produced a variety of ultra-precision polishing consumables and equipment to match them, including  professional
grinding and polishing papers for general fiber use, a series of  professional grinding and polishing machines,MPO/MTP-specific grinding and polishing papers, grinding and polishing fluids, and grinding
and polishing machine series


Specification:
Circle disk:Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm(8inch)
Square disk:114mm×114mm, 152mm×152mm(6inch), 228mm*228mm(9inch)
Ribbon:(Width)1.2mm、1.6mm、2.0mm、2.5mm、3.0mm、3.2mm、3.8mm、5.0mm、12.6mm;
                (Length)45m(150feet)、100m、183m(600feet)、200m
Particle Size:1um 、3um 、5um、9um、15um、16um、30um
Note: In addition to the specifications listed above, other products with customized specifications can be made according to the customer's needs.
