SC/PC Distribution Fiber Optic Pigtail, SM 9/125 Fanout 0.9mm Optical Fiber Pigtail

Item No.: Y-FO-FP-013
SC/PC Fanout Fiber Optic Pigtail is a piece of Distribution cable assembled with SC Connectors only in one side. the number of fanout fiber cable cores is determined by the customer.
Description Parameters Company Profile Related Product
Description:
Fiber optic pigtail is a piece of cable assembled with connectors only in one side. And the other side has no connectors. Then the other side is
usually spliced with other fiber optic cable. It is preinstalled in the fiber optic terminal box, ODF, fiber optic joint closure to connect the equipment.

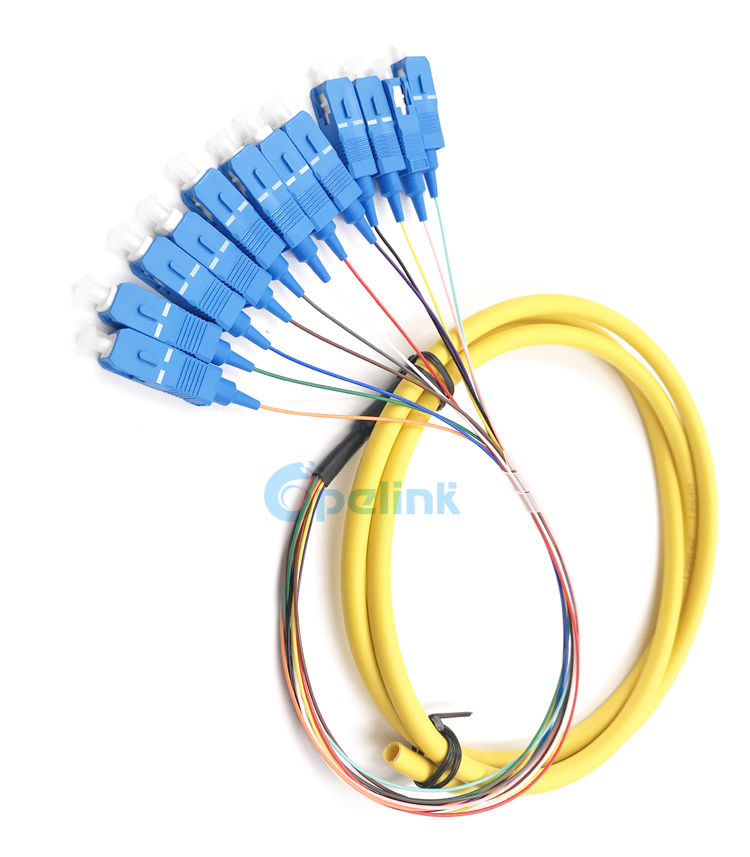

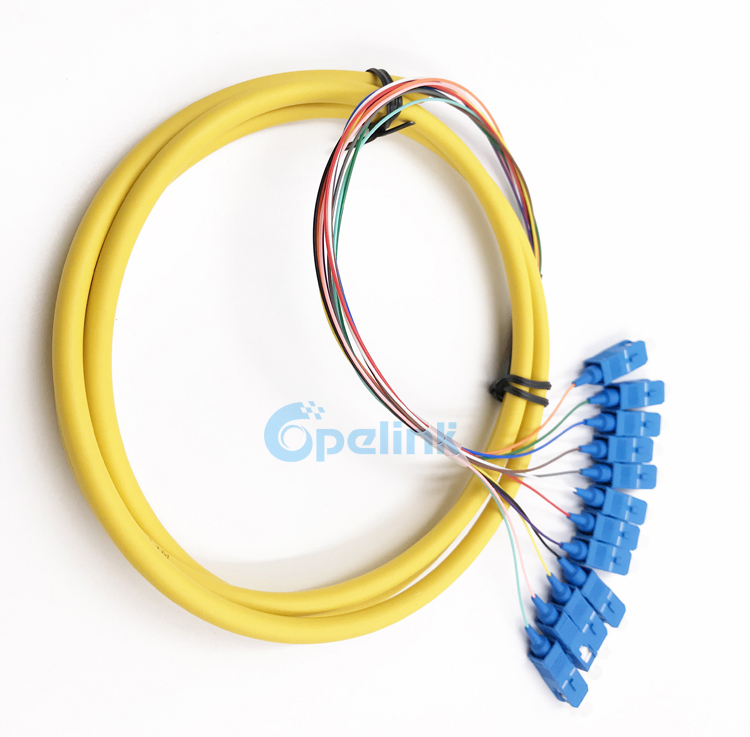

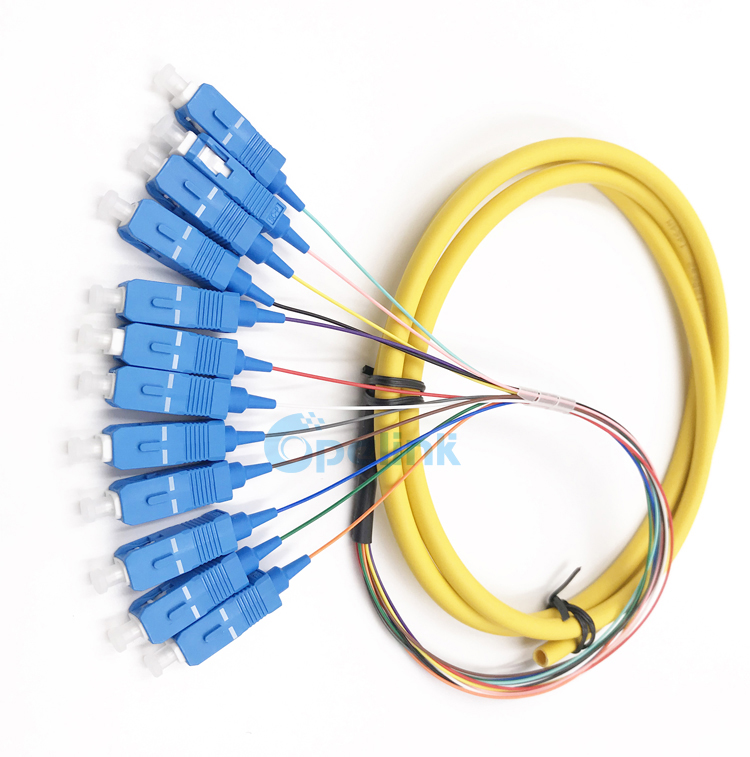

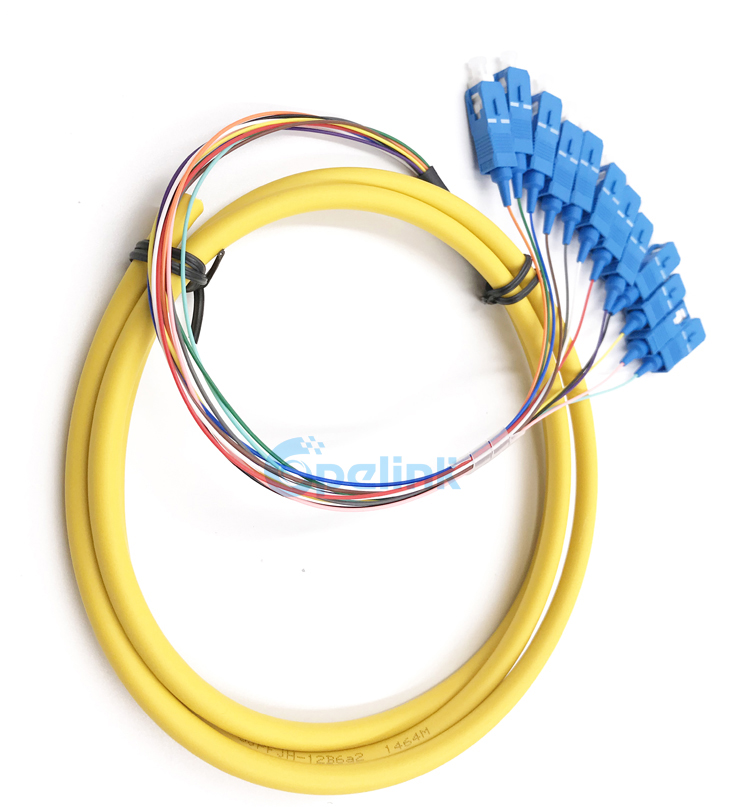

12 fibers SC/PC Distribution Fiber Optic Pigtail, Singlemode yellow color
Features:
Low insertion loss and High Return Loss
Good durability
Good exchangeability
High temperature stability
compliant with standards of Telcordia GR-326-CORE

Application:
Optical Fiber Communication Systems
Optical Access Network
Fiber optic data transmission
Optical Fiber CATV
Local Area Network (LAN)
Test Equipment

Product Introduction:
Connector:SC,FC,ST,LC,MU,MTRJ,E2000,  etc
Polishing type:PC,UPC,APC
Fiber Type:Singlemode(G652D,G657A),Multimode(OM1,OM2,OM3,OM4)
Fiber cable:Simplex,Duplex,Multi-core,Ribbon,Distribution, Armoured, etc
Cable OD:0.9mm,2.0mm,3.0mm,etc
Cable Material:PVC-OFNR,PVC-OFNP,LSZH, etc
Patchcord Length:1m,2m,etc

Ordering information:
Type Fiber Core Cable Type Cable OD Cable Material Cable
Color
Connector
(A End –B End)
Patchcord
Length
PT=Patchcord
PY=Pigtail
S1=G652D
S2= G657A1
M1=50/125
M2=62.5/125
M3=OM3
M4=OM4
S7=G657A1
S8=G657B3
XX=other
01=simplex
02=Duplex
03=Armoured
04=Distribution
05=Ribbon
06=breakout
07=drop cable
XX=other
L=0.9mm
2=2.0mm
3=3.0mm
XX=other


1=PVC
2=LSZH


01=Blue  02=Orange
03=Green  04=Brown
05=Slate  06=White
07=Red  08=Black
09=Yellow  10=Violet
11=Rose  12=Aqua
13=12Color  XX=other
SU=SC/UPC   SA=SC/APC
FU=FC/UPC    FA=FC/APC
LU=LC/UPC    LA=LC/APC
ST=ST/UPC
MPO=MPO/PC  MPA=MPO/APC
00=NONE
XX=Other


0.5M=0.5M
10M=10M
XXX=other






Optical Specifications:
Parameter Singlemode Patchcord/Pigtail Multimode Patchcord/Pigtail
Polishing  Type PC UPC APC PC
Insertion loss(dB) <=0.3dB,MTRJ<=0.5dB <=0.3dB <=0.3dB <=0.3dB,MTRJ<=0.5dB
Return loss(dB) >=45dB,MTRJ>=35dB >=55dB >=65dB
Operating temperature -20ºC~75ºC
Storage Temperature -40ºC~75ºC
100 mating cycles loss I.L changed≤0.1dB
Durability >1000 cycles

Geometric Specification:
Parameter PC  Polishing APC Polishing
SC Type LC Type
R.O.C 10~25mm 7~25mm 5~12mm
Apex Offset <50um <50um <50um
Fiber Height -125nm-50nm   -100nm-100nm
Polishing Angle     8°± 0.3°
