SC Fiber Optic Temporary Connector Black Round Type Bare Fiber Adapter

Item No.: Y-FO-FA-079
SC Bare Fiber Adapter, With exquisite appearance design, the product has an absolute competitive advantage in terms of performance and quality.
Description Parameters Company Profile Related Product
Description:
Bare fiber adapter are used as the medium to temporarily connect the bare fiber with fiber optic equipment. It's a very convenient way
as well as a most affordable method to connect un-terminated fibers with standard FC, SC, ST, LC receptacles. They are recommended
for power meter hook-ups, temporary system repairs or wherever a quick fiber connection is required.You only need to simply strip, cleave,
clean and insert the fiber, without the hassle of epoxy and epoxy curing steps. Broken fibers are easily removed with piano wire. There are
various types available: SC, FC, ST, LC,  etc. Both single mode and multi-mode types are available.

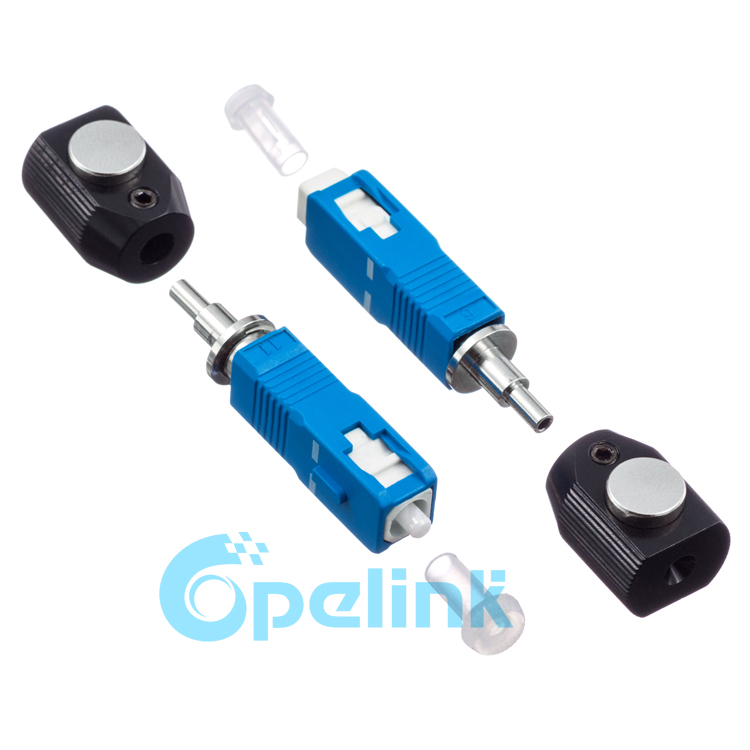

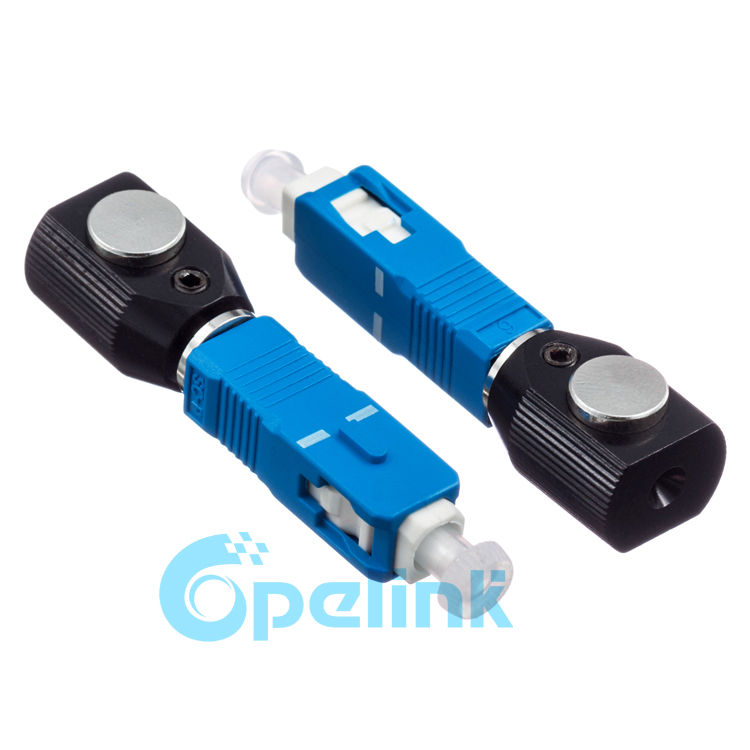

SC Black Round Type Bare Fiber Adapter
Features:
Stable capability and high reliability
Precise connecting
Outstanding Mechanical characters
Human-centered Design
Simple to use
Suitable for fiber with coating diameters of 250um & 900um

Application
Emergency repairs of fiber optic cable, temporary fiber connection and fiber optic cable fast test.
Bare Fiber Connection
Local Area Networks and Telecommunication Networks
Fiber optic testing, fiber optic cable repair
OTDRs, Power meters, Talk sets, etc
Fiber optic measurement in laboratory
Testing bare fiber, fiber on the reel, fiber before and after installation




  Specifications:
Parameter LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc
Multimode Singlemode
Light Characteristic Operating Wavelength 850nm & 1300nm 1310&1550nm
Typical Insertion Loss 0.2 dB 0.2dB
Mechanical Testing Repeatability ≤0.2dB
Exchange ≤0.2dB
Durabilty >1000 (times)
Temperature Storage Temperture -40~+85℃
Opearting Temperature -40~+85℃
