SC-FC Female to Female Mechanical adjustable Fiber optic Attenuator Variable optical Attenuator VOA

SC-FC Female to Female Mechanical adjustable Fiber optic Attenuator Variable optical Attenuator VOA

Name: SC-FC Female to Female Mechanical adjustable Fiber optic Attenuator Variable optical Attenuator VOA
Brand: OPELINK
SKU: Y-FO-OA-005
Availability: InStock
Rating: 5 (1 reviews)

Item No.: Y-FO-OA-005

SC Female to FC Female matching adjustable optical Attenuator, Its light decay values range from 1dB to 30dB, and this product can be used in applications where frequent adjustment of optical attenuation is required.

INQUIRY

Description Parameters Company Profile Related product

Description:
SC-FC Variable Optical Attenuator (VOA) is an important optical passive component in optical fiber communication. It can realize
real-time control of signals by attenuating the transmitted optical power. The variable optical attenuator can be combined
with optical components such as optical wavelength division multiplexer (WDM), spectroscopic detector (TAP PD), and erbium
doped fiber amplifier (EDFA) to form ROADM, VMUX, gain flat EDFA, etc. Overload protection of the optical receiver.

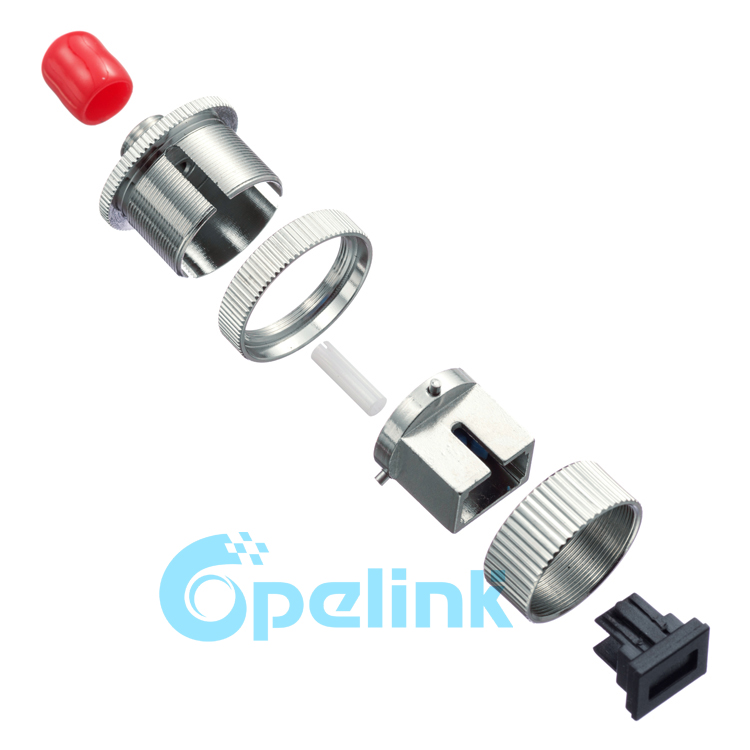

SC-FC Female to Female Mechanical adjustable optical Attenuator, metal housing

SC-FC Female to Female Mechanical adjustable optical Attenuator, metal housing

Feature:
Low back reflection and Low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range

Application:
Fiber communication on system test
Optical passive component test
Optics lab use
Subscriber loop
Fiber optical sensor
Testing equipment

Order Information:

type	End Face	Material	Housing Color	RL	Attenuation
SC=SC FC=FC LC=LC MU=mu ST=ST SA=SC Adap. FA=FC Adap.	P=PC A=APC	P=plastics M=metal	BL=Blue GR=Green BE=Beige AQ=Aqua ME=Metal	50=50dB 55=55dB 60=60dB 65=65dB	01=1dB 02=2dB 03=3dB 04=4dB 05=5dB 06=6dB 10=10dB xx=other

Specification:

Connector Type	FC,SC,ST,LC,MU,Hybrid,etc.
Attenuation Value	1dB ~ 30dB
Model	Fixed, In-line, Variable,Adapter (Female to Female), Connector (Male to Female)
Operating Wavelength	SM:1240 ~ 1620nm (Dual 1310/1550nm) MM:850/1300nm
Return Loss	UPC >55dB,APC >60dB
Attenuation Tolerance	+/-0.5 dB for 1 to 5dB attenuation
	+/-10% for 6 to 30dB attenuation
Maximum Optical Input Power: 200mW
Polarization Dependent Loss: ≤0.2dB
Exchangeability: ≤0.2dB
Repeatability: ≤0.2dB
Durability:≤0.2dB Typical 1000 matings
Operating Temperature Range: -40 ºCto 75ºC
Storage Temperature Range: -40ºC to 85ºC
Humidity: 95%RH
