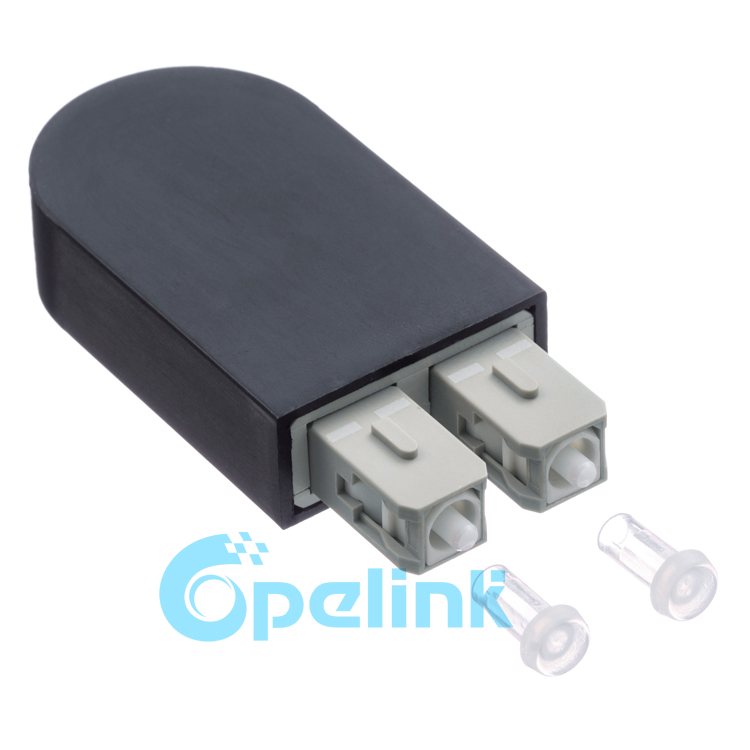

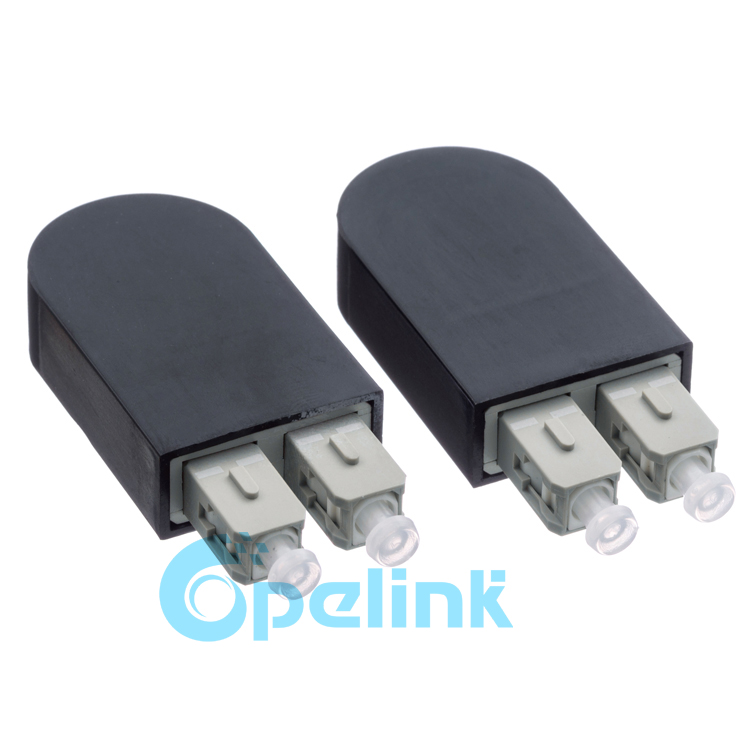

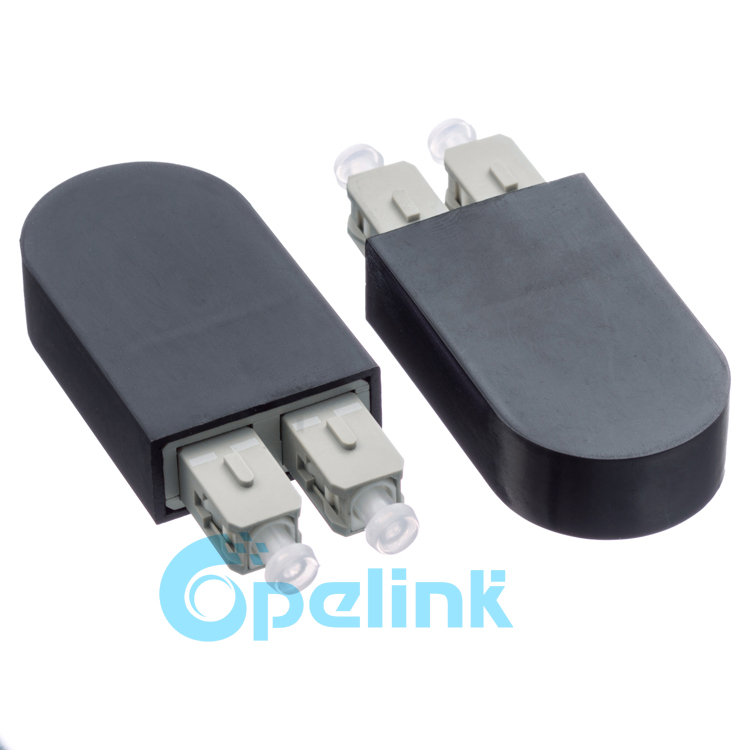

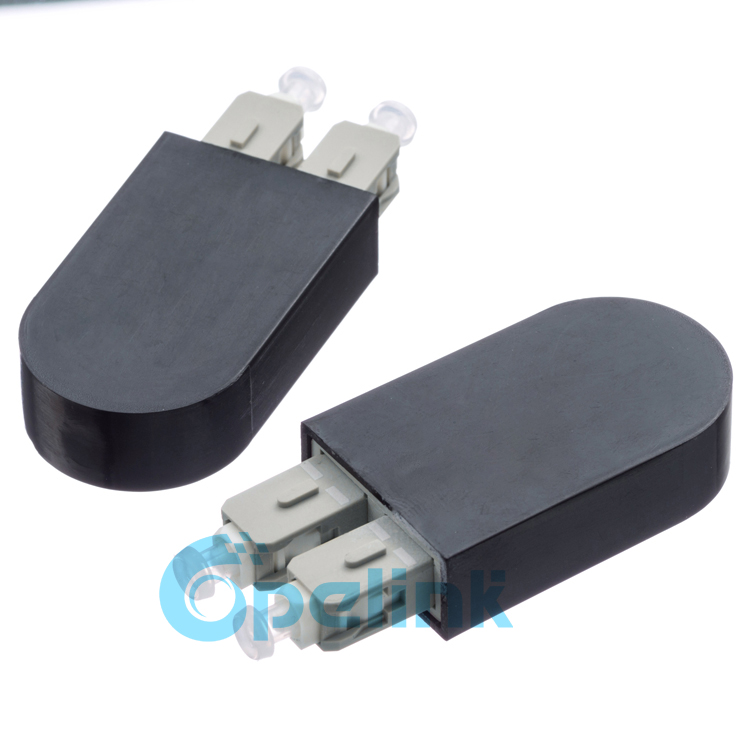

SC Duplex Multimode Fiber Loopback Module

Item No.: Y-FO-FP-008
Fiber Loopback Module is designed to provide a media of return patch for a fiber optic signal. Typically it is used for fiber optic testing applications or network restorations.
INQUIRY
Description Parameters Company Profile Related Product
Description:
Fiber Loopbacks are also called optical loopback adapters. They are designed for testing, engineering and the burnin stage of boards
or other equipment.
Optical loopback adapters provide system test engineers a simple but effective way of testing the transmission capability
and the receiver sensitivity of
network equipment.


Features:
1. Fiber Loopback Module provides a media of return path for a signal, whether the signal is for testing purposes or due to network restoration
2. In the case of testing, the loopback signal is used for diagnosing a problem
3. Sending a loopback test to a network equipment, one at a time, is a technique for isolating a problem
4.The fiber G657.A1 ,G657.A2 Can be chioced. 0.9mm or 2.0mm

Application:
R&D
Fiber labs
Telecom testing
FTTX testing
Equipment interconnection
Device pig-tailing
Premise networks
Patch panel applications
Communications connections
Loopback for network components testing


Tags:
Fiber Optic PLC Splitter  | Optical CWDM/DWDM/AWG  | FTTH Drop Fiber Optic Cable  | Fiber Optic PatchCord/jumper/Patch cable  |
Fiber Optic Fast Connector  | Optical Switch  | Fiber Optic Adapter  | Fiber Optic Attenuator  | Fiber Optic Cable TerminalBox |



Optical Specifications:
parameter Singlemode Multimode
Insertion loss(typical) 1.2dB 0.2dB
Insertion loss(Max) 1.5dB 0.7dB
Operating temperature range -20°C to +75°C
Storage temperature range -40°C to +75°C
Repeat Ability < 0.2dB (500 Cycle Passed)
Geometric Specification:
Parameter PC  Polishing APC Polishing
SC Type LC Type
R.O.C 10~25mm 7~25mm 5~12mm
Apex Offset <50um <50um <50um
Fiber Height -125nm-50nm   -100nm-100nm
Polishing Angle     8°± 0.3°
