SC/APC Boundle Distribution Fiber Pigtail, SM 9/125 Fanout 0.9mm Optical Fiber Pigtail

Item No.: Y-FO-FP-012
SC/APC Distribution Fiber Pigtail is a piece of Distribution cable assembled with SC/APC Connectors only in one side. the number of connectors is determined by the customer.
Description Parameters Company Profile Related Product
Fiber pigtail is a piece of cable assembled with connectors only in one side. And the other side has no connectors. Then the other side is
usually spliced with other fiber optic cable. It is preinstalled in the fiber optic terminal box, ODF, fiber optic joint closure to connect the equipment.

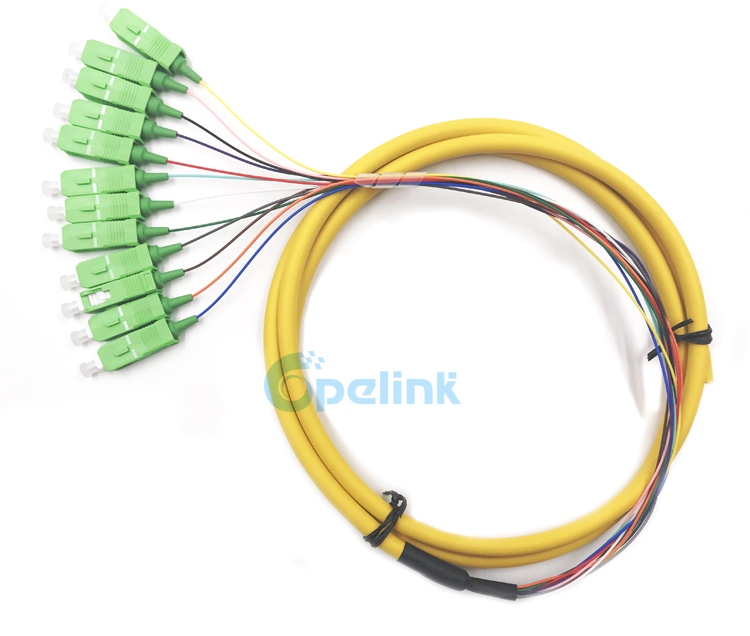

12-fiber SC/APC Boundle Distribution Fiber Pigtail, singlemode yellow color
Low insertion loss and High Return Loss
Good durability
Good exchangeability
High temperature stability
compliant with standards of Telcordia GR-326-CORE

Optical Fiber Communication Systems
Optical Access Network
Fiber optic data transmission
Optical Fiber CATV
Local Area Network (LAN)
Test Equipment
Product Introduction:
Connector:SC,FC,ST,LC,MU,MTRJ,E2000,  etc
Polishing type:PC,UPC,APC
Fiber Type:Singlemode(G652D,G657A),Multimode(OM1,OM2,OM3,OM4)
Fiber cable:Simplex,Duplex,Multi-core,Ribbon,Distribution, Armoured, etc
Cable OD:0.9mm,2.0mm,3.0mm,etc
Cable Material:PVC-OFNR,PVC-OFNP,LSZH, etc
Patchcord Length:1m,2m,etc

Optical Specifications:
Parameter Singlemode Patchcord/Pigtail Multimode Patchcord/Pigtail
Polishing  Type PC UPC APC PC
Insertion loss(dB) <=0.3dB,MTRJ<=0.5dB <=0.3dB <=0.3dB <=0.3dB,MTRJ<=0.5dB
Return loss(dB) >=45dB,MTRJ>=35dB >=55dB >=65dB
Operating temperature -20ºC~75ºC
Storage Temperature -40ºC~75ºC
100 mating cycles loss I.L changed≤0.1dB
Durability >1000 cycles

Geometric Specification:
Parameter  PC  Polishing APC Polishing
SC Type LC Type
R.O.C 10~25mm 7~25mm 5~12mm
Apex Offset <50um <50um <50um
Fiber Height -125nm-50nm   -100nm-100nm
Polishing Angle     8°± 0.3°
For more details, please contact our sales.
