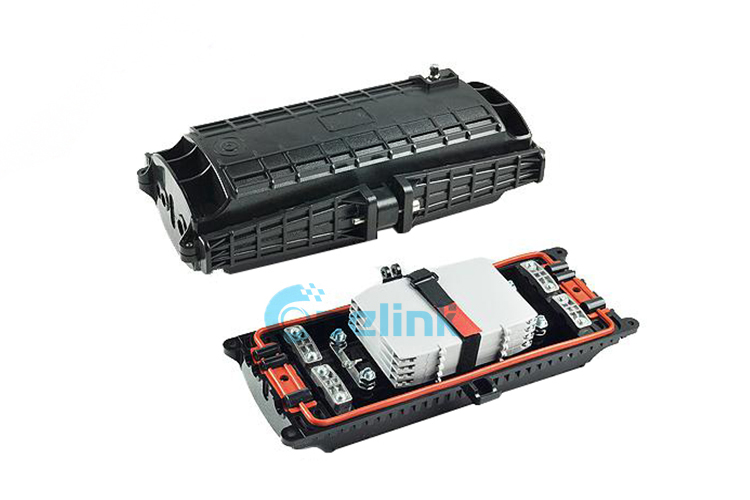

Outdoor Waterproof Optical Fiber Cable horizontal Dome Fiber Optic Splice Closure

Item No.: Y-FO-FD-004
The fiber optic splice closure is the equipment used to offer room for fusion splicing optical fibers. It also provides protection for fused fiber joint point and fiber cables.
INQUIRY
Description Parameters Company Profile Related Product

Description:
Vertical type of dome fiber optic splice closures is the equipment used to offer room for fusion splicing optical fibers.
It also provides protection for fused fiber joint point and fiber cables. There are mainly two types of closures: vertical
type and horizontal type. A large variety of fiber splice closures are designed for different applications, such as aerial,
duct fiber cables and direct burial. Generally speaking, they are usually used in outdoor environment, even underwater.
The optical fiber joint closure appy to cable splicing. Direct burial, manhole, hand hole, wall hanging and aerial placing
method is adopted. It provide reliable, solid and flexible protection and helpful to environment protection.

Features:
Heat shrinkable sealing structure.
High quality industrial plastic body material.
One oval hole and three round holes for cable entrance.
Suitable for cable diameter 5mm-25mm.
Support aerial under-ground pipeline man holes hand holes.
Protection level reaches IP68.


Application:
Aerial cable installation.
Pole mounted installation.
Wall mounted installation.
Man hole and hand hole installation.
FTTH access layer.

Dimension and capacity:

P/N Dimension
(mm)
Capacity
(Single Core)
Capacity
(Double Core)
4/6/8/12 core max
 capacity
OPE-GJS-H001 388*165*62 24 48 48/72/96/14
OPE-GJS-H002 410*200*110 48 96 96/144/`92/288
OPE-GJS-H003 410*255*110 144 288 288/432/576/864
OPE-GJS-H004 410*255*110 144 288 288/432/576/864
OPE-GJS-H005 420*185*106 48 96 96/144/192/288
OPE-GJS-H006 515*215*123 64 288 192/288/384/576
