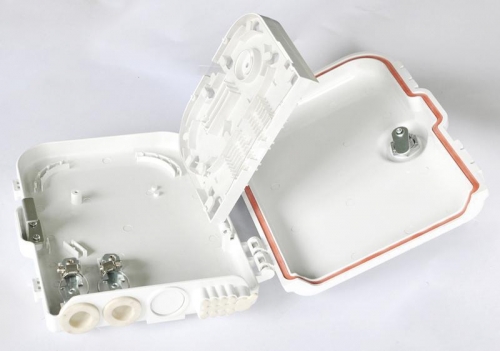

Outdoor Fiber optic cable Terminal Box Optical fiber Distribution Box OPE-FTTH-208

Item No.: Y-FO-FD-002
The fiber optic terminal box, It’s used for outdoor wall-mounting and pole -mounting.Lock Hasp structure makes it easy for open and close and guard against the theft.
Can meet the following Ф 12 cable into, and can meet the figure 8 or Φ 3.0mm cable prot
INQUIRY
Description Parameters Company profile Related Product
FTTH208 is FTTH passive optical points wiring special terminal box.
It’s used for outdoor wall-mounting and pole -mounting.Lock Hasp structure makes it easy for open and close and guard against the theft.
Can meet the following Ф 12 cable into, and can meet the figure 8 or Φ 3.0mm cable protective in splice connection;


Features:
1.Part no.: FTT-H208
2.Outer size(L×W×H): 240mm×195mm×66mm
3.Suitable splitter type: Mini splitter
4.Adaptor type: SC ; LC
5.Can be installed 1:8 SC or 1:16 LC Mini- splitter;
6.LC biggest for 16 core, SC biggest for 8 core.


Application :
1.Widely used in FTTH (Fiber To the Home) access network
2.Telecommunication Networks
3.CATV Networks
4.Data communications Networks
5.Local Area Networks
