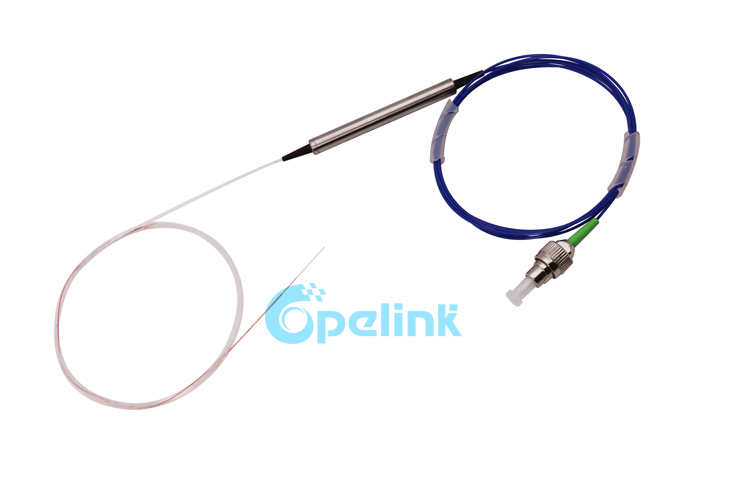

Low PDL 3 Ports Optical Circulator, input with FC/APC connector

Item No.: Y-FO-OC-004
We provide polarization insensitive and PM optical circulator, These circulators with high isolation, low insertion loss, and excellent environmental stability.
  • Brand Name: OPELINK
  • Place of Origin: Guangdong, China
  • Product name: Optical Circulator
  • Description Parameters Company Profile

    Description:

    Optical circulator is a special fiber optic device that is capable of separating optical power traveling in opposite

    directions in one optical fiber. It can be used to achieve bi-directional transmission over a single fiber. Because

    of its high isolation between the input and reflected optical power and its low insertion loss, optical circulator is

    widely used in advanced communication systems and fiber-optical sensor systems.

    3 Ports Optical Circulator sold by opelink
    Features:
    Low Insertion Loss
    Wide Band High Isolation

    Ultra-low PDL and PMD
    Compact In-Line Package
    High Stability and Reliability

    Application:
    Metro Area Network
    Wavelength Add/Drop
    Dispersion Compensation
    Bi-Direction Communication
    Fiber optic instruments
    EDFA, optical fiber amplifiers
    Dispersion compensation modules
    Optical fiber communication networks



    Order Information:
    Type Operating Wavelength Fiber type package cable type fiber length connector (Input-Output)
    3=3port
    4=4port
    13=1310nm
    15=1550nm
    16=1585nm
    CL=C+L Band 1525~1610nm
    S1=G652D
    S2=G657A1
    06=5.5x50mm
    Steel Tube
    04=90x20x9.5mm
    Plastic Box
    B=250um Bare Fiber
    L=900um Loose Tube
    2=2.0mm
    3=3.0mm
    0.5M=0.5M
    1M=1M
    XX=OTHER


    00=None
    FA=FC/APC
    FU=FC/UPC
    SA=SC/APC
    SU=SC/UPC
    ST=ST/UPC
    LU=LC/UPC
    Optical Specifications:
    Parameter Specification
    Configuration Port 1 to Port 2 to Port 3 Port 1 to Port 2 to Port 3 to Port 4
    Operation Wavelength (nm) 1310±30 or 1550±30 or 1585±30 1525 to 1610 1310±30 or 1550±30
    I.L (dB) Typical 0.6 1.0 0.8
    Maximum 0.8 1.2 1.0
    Typical Isolation (dB) 50 50 50
    Minimum Isolation (dB) 40 35 40
    Cross Talk (dB) ≥50 ≥50 ≥50
    Polarization Dependent Loss (dB) <0.15 <0.2 <0.2
    Polarization Mode Dispersion <0.1 <0.1 <0.1
    Return LossdB ≥50 ≥50 ≥50
    Power Handling (mW) 300 300 300
    Operating Temperature (℃) -0~+70 -0~+70 -0~+70
    Storage Temperature (℃) -40~+85 -40~+85 -40~+85
    Note:
    1.All the data above does not include connectors
    2.For more details, please contact our sales
