LC Fiber Optic Temporary Connector Round Type Bare Fiber Adapter

Item No.: Y-FO-FA-078
We are Leading Bare Fiber Adapter suppliers and wholesalers, to provide you with Professional Quality & competitive price Fiber Optic Temporary Connector.
  • Brand Name: OPELINK
  • Place of Origin: Guangdong, China
  • Product name: Bare fiber adapter
  • Low Price: 10.00 USD
  • Description Parameters Company Profile Related Product
    Description:
    LC Bare fiber adapter are used as the medium to temporarily connect the bare fiber with fiber optic equipment. It's a very convenient way
    as well as a most affordable method to connect un-terminated fibers with standard FC, SC, ST, LC receptacles. They are recommended
    for power meter hook-ups, temporary system repairs or wherever a quick fiber connection is required.You only need to simply strip, cleave,
    clean and insert the fiber, without the hassle of epoxy and epoxy curing steps. Broken fibers are easily removed with piano wire. There are
    various types available: SC, FC, ST, LC,  etc. Both single mode and multi-mode types are available.

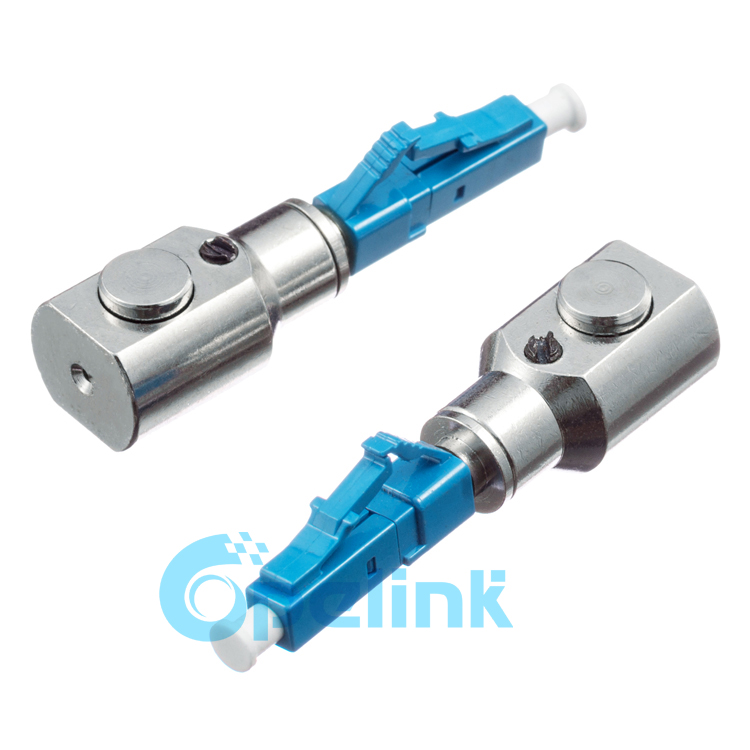

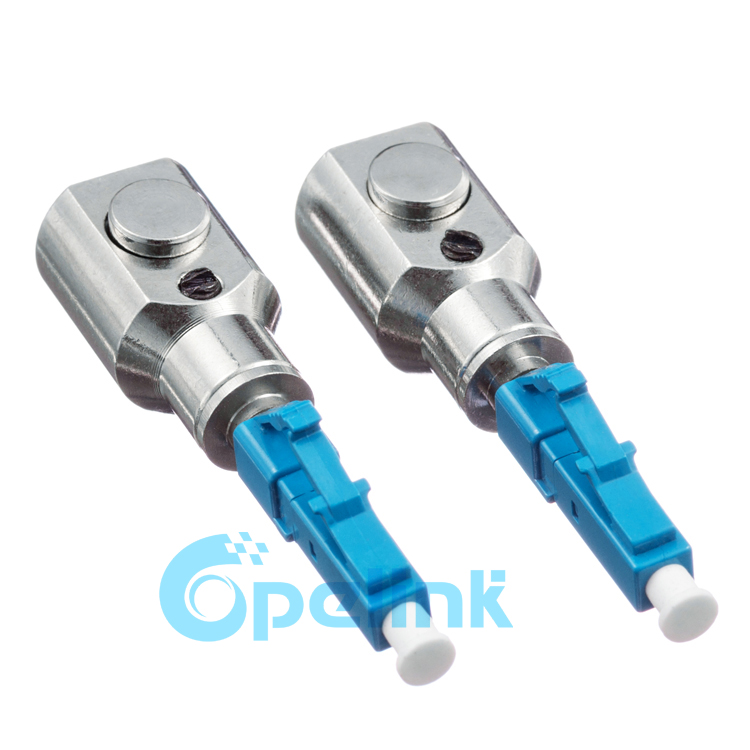

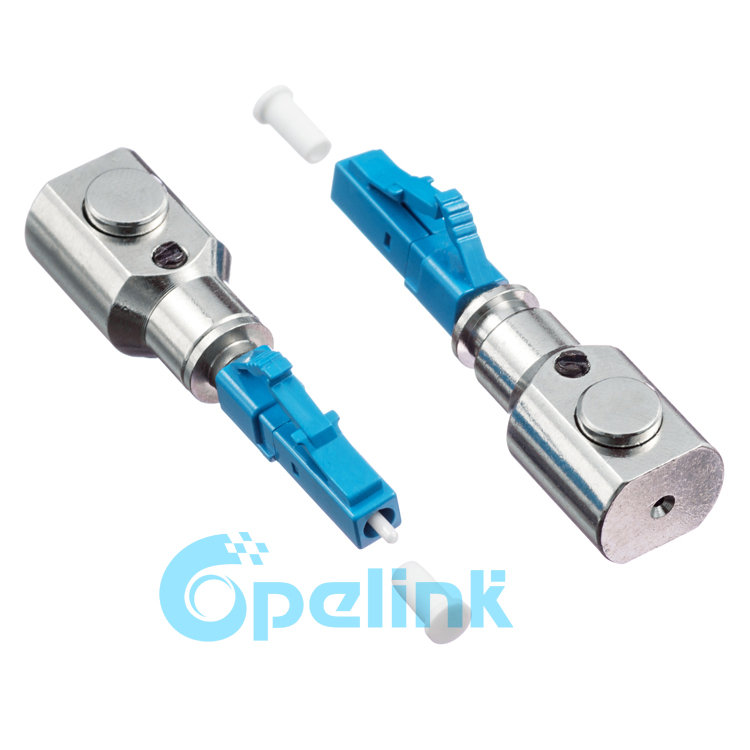

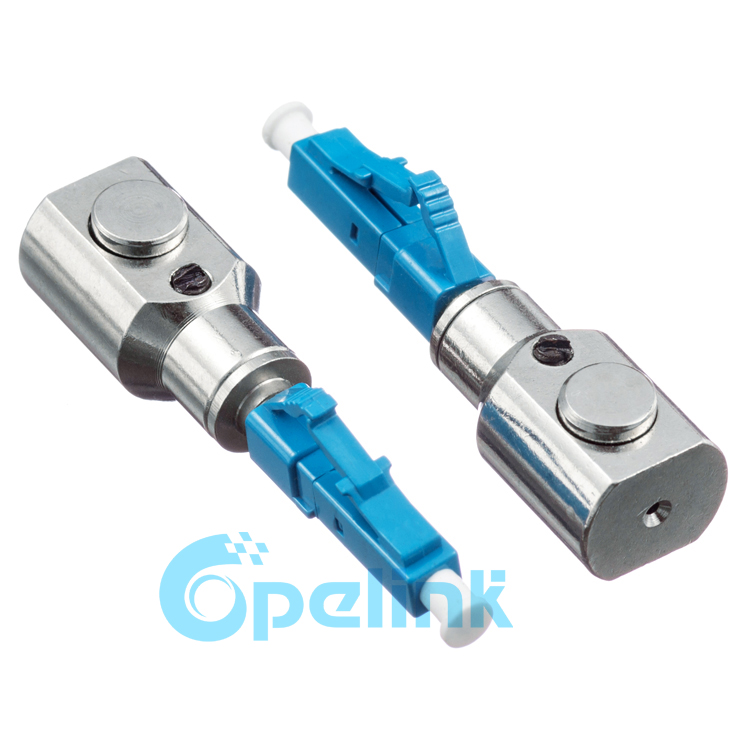

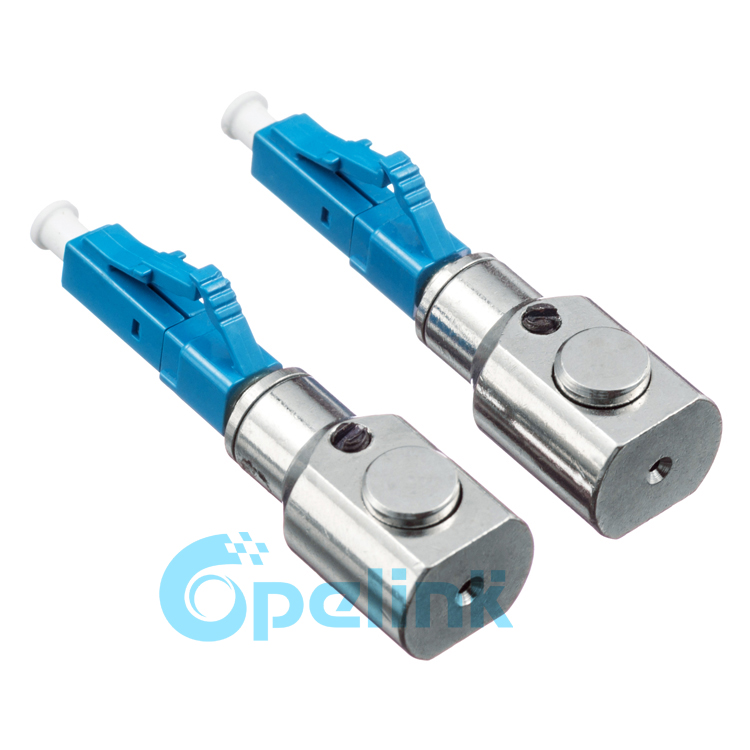

    LC Round Type Bare Fiber Adapter
    Features:
    Stable capability and high reliability
    Precise connecting
    Outstanding Mechanical characters
    Human-centered Design
    Simple to use
    Suitable for fiber with coating diameters of 250um & 900um

    Application
    Emergency repairs of fiber optic cable, temporary fiber connection and fiber optic cable fast test.
    Bare Fiber Connection
    Local Area Networks and Telecommunication Networks
    Fiber optic testing, fiber optic cable repair
    OTDRs, Power meters, Talk sets, etc
    Fiber optic measurement in laboratory
    Testing bare fiber, fiber on the reel, fiber before and after installation




      Specifications:
    Parameter LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc
    Multimode Singlemode
    Light Characteristic Operating Wavelength 850nm & 1300nm 1310&1550nm
    Typical Insertion Loss 0.2 dB 0.2dB
    Mechanical Testing Repeatability ≤0.2dB
    Exchange ≤0.2dB
    Durabilty >1000 (times)
    Temperature Storage Temperture -40~+85℃
    Opearting Temperature -40~+85℃
