What is the difference between GJXFH and GJXH?

GJXFH uses FRP non-metallic members (dielectric, indoor). GJXH uses steel wire (higher tensile, rodent-resistant, outdoor).

Why is G.657 fiber important for FTTH drop cables?

G.657 tolerates 10 mm bend radii vs. 30 mm for G.652 — critical for tight corners, walls, and small termination boxes without signal loss.

How many fibers for residential FTTH drop?

1 fiber for GPON/XG-PON. 2-core for redundancy/upgrade. 4-core for multi-dwelling units.

Home > Optical Passive products > Fiber Optic Cable > FTTH Drop Cable

GJXFH FTTH Cable, Bow-Type Metal Strength Member Drop Optical Fiber Cable GJXH

GJXFH FTTH Cable, Bow-Type Metal Strength Member Drop Optical Fiber Cable GJXH

Name: GJXFH FTTH Cable, Bow-Type Metal Strength Member Drop Optical Fiber Cable GJXH
Brand: OPELINK
SKU: Y-FO-FC-013
Availability: InStock
Rating: 5 (1 reviews)

Item No.: Y-FO-FC-013

We are outstanding FTTH Drop Optical Fiber Cable suppliers and wholesalers, to provide you with high quality Products and Service.

INQUIRY

Description Parameters Company Profile Related product

Product Overview

The GJXFH FTTH drop cable features a bow-type design optimized for indoor fiber-to-the-home installations. With 1-4 cores of G657A1/A2 bend-insensitive fiber, this cable enables tight bending in residential environments without signal loss.

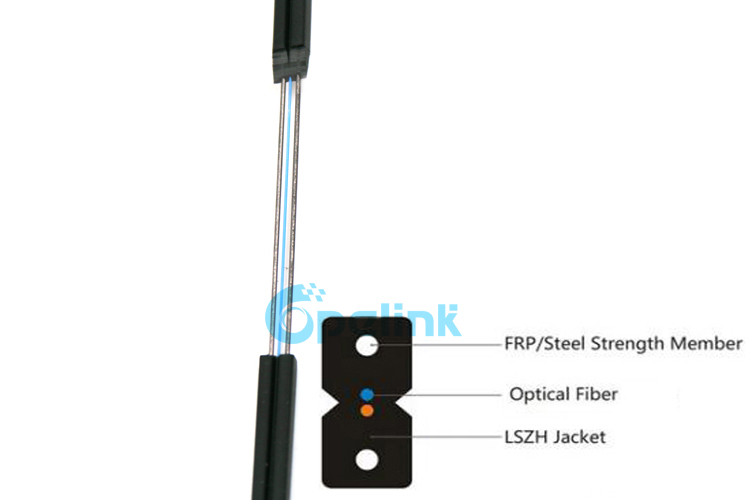

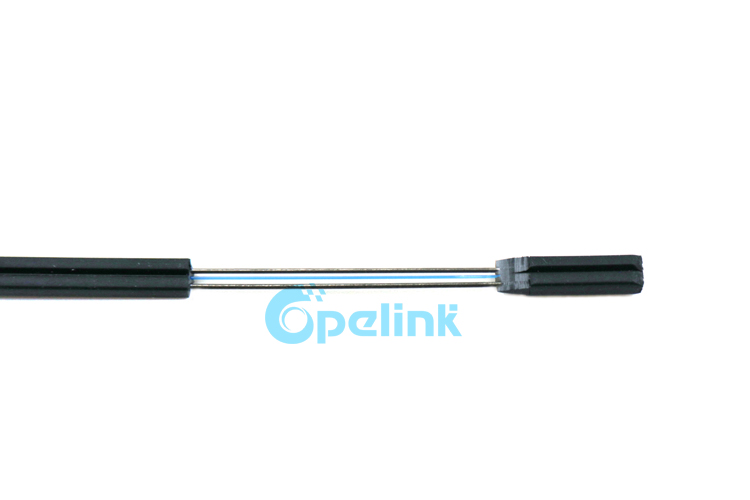

GJXFH Metal Strength Member FTTH Drop Fiber Cable

Technical Specifications

Parameter	Specification
Fiber Count	1-4 cores
Fiber Type	G657A1/A2 bend-insensitive
Structure	Bow-type, stranded steel
Outer Sheath	LSZH (Low Smoke Zero Halogen)
Bend Radius	10mm minimum
Temperature	-20°C to +60°C
Applications	FTTH, indoor cabling
Standards	ITU-T G.657, YD/T 1954

Key Applications

FTTH Installations: Last-mile connection from distribution point to home
Indoor Cabling: Routing through walls and conduits in buildings
Residential Networks: Connecting apartments and homes in MDUs
Office Buildings: Horizontal cabling in commercial spaces

Product Advantages

Bend-insensitive fiber allows tight corner routing
LSZH sheath for fire safety in indoor environments
Compact bow-type design for easy installation
Steel strength member for durability

Frequently Asked Questions

Q: Can it be used outdoors?
A: Not recommended for direct outdoor exposure without protection.
Q: What is the minimum bend radius?
A: 10mm without performance degradation.
Q: Is it suitable for aerial installation?
A: No, use GYTC8S or ADSS for aerial applications.

Specification：

Outer diameter(mm)		3.1x1.9(2)	4.0x2.0(4)
Nominal Weight(kg/km)		9.0	11
Crush Resistance (N/100mm)Long/Short term		300 1000	300 1000
Tensile Strength(N) Long/Short term		200 600	200 600
Min.Bending Radius(mm)	Dynamic	20H
	static	10H
Temperature Range		-20℃-70℃

Note:For more details, please contact our sales
