FTTH Fiber Drop Cable, Self-supporting Figure 8 stranded steel type Drop optical fiber Cable, Metal Strength Member Fiber Optic Cable, Gjyxch/GJYXFCH

Item No.: Y-FO-FC-036
FTTH Fiber Cable is also called butterfly cable or Bow-Type Drop cable for access network. OPELINK offer a full range of FTTH Cable applications, best price to you, inquiry to us.
  • Brand Name: OPELINK
  • Place of Origin: Guangdong, China
  • Product name: FTTH Fiber Optic Cable
  • Low Price: 50.00/km USD
  • Description Parameters Company Profile Related Product
    Description:
    FTTH Fiber Drop Cable for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the
    section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB) ,and other optical fiber access network

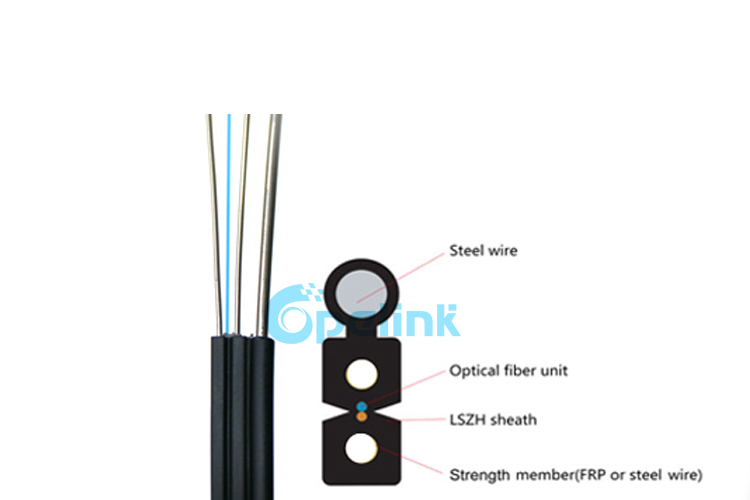

    users to introduce the section of the optical cable.The drop FTTH cables are with flame retardant jacket and with supporting wire, there
    are strengthen members inside the cables for supporting the whole cables, the whole cable meet the RoHS standards and contains no
    harmful components, in general,it is a highly recommended FTTH drop cables for use in the fiber to the home projects.

    Self-supporting FTTH Fiber Drop Cable, which is a very competitive product provided by opelink company
    Features:
    Adopt fiber with small bending radius (G.657),
    offering good bending resistance;
    Adopt all-dry structure and fiber with small bending radius,
    offering good bending resistance;
    Easy cable stripping without need of tools, easy cable fixation
    and low cost of installation.

    Application:
    As FTTH cable,for indoor horizontal and vertical cabling;
    Indoor cabling  under  carpet and along corner.
    Outdoor cable suitable as cable extending from outdoor (as aerial cable)
    to indoor




       Technical Parameters:

    Item Contents Value
    Fibre Count 1 2 4
    Self-supporting Strength member material Steel wire
    diameter (mm) 1.1mm
    Strength member material KFRP/Steel wire
    diameter (mm) 0.52/0.45 0.52/0.45 0.52/0.45
    Sheath Thickness (mm)
    0.40
    Cable  diameter(mm) Approx. 2.0*5.2(±0.1) 2.0*5.2(±0.1) 2.0*5.2(±0.1)
    Cable weight(kg/km) Approx. 18.5/20 19/20.5 20/21.5
    Operating  temperature range -40~+70
    Tensile Strength Short/ Long Term(N) 600/300
    Crush resistance short/long term (N/100mm) 1000/500

       Mechanical Characteristic
    Items Test Standard Specified Value Requirements
    Tension IEC 60794-1-2-E1 See Technical data Additional attenuation:
    0.4dB after test
    Crush IEC 60794-1-2-E3 See Technical data Additional attenuation:
    0.4dB after test
    Impact IEC 60794-1-2-E4 R=300mm, 10Nm,
    one in 3 different places
    Additional attenuation:
    0.4dB after test
    Repeated Bending IEC 60794-1-2-E6 R=30H Additional attenuation:
    0.4dB after test
    Temperature Cycling IEC 60794-1-2-F1 -40~+70 Attenuation change:
    0.4dB/km after test
        Notes:1.All optical measurements at 1550nm.
                  2.
    For more details, please contact our sales
