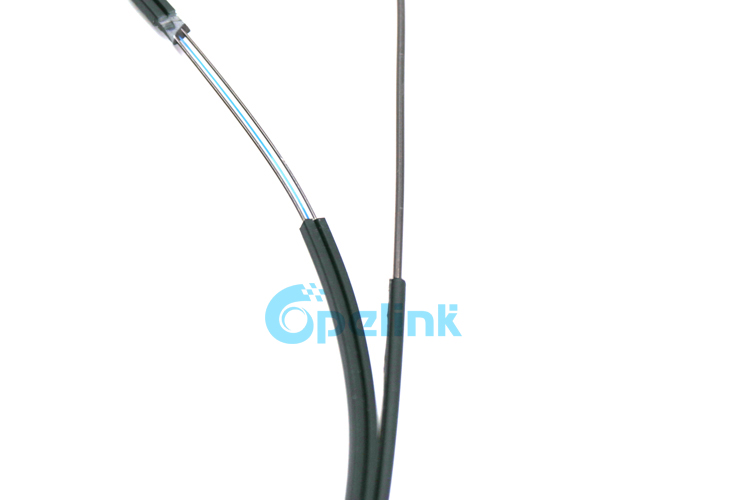

GJYXFCH FTTH Optical Fiber Cable, Self-supporting Drop fiber Optic Cable, Metal Strength Member FTTH Fiber Cable

Item No.: Y-FO-FC-041
GJYXFCH FTTH Optical Fiber Cables for telecommunication, suitable for FTTH network ,users to introduce the section of the cable, but also apply to the FTTO network and FTTB network
Description Parameters Company Profile Related Product
Description:
GJYXFCH FTTH Optical Fiber Cable for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the
section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB) ,and other optical fiber access network
users to introduce the section of the optical cable.The drop FTTH cables are with flame retardant jacket and with supporting wire, there
are strengthen members inside the cables for supporting the whole cables, the whole cable meet the RoHS standards and contains no
harmful components, in general,it is a highly recommended FTTH drop cables for use in the fiber to the home projects.

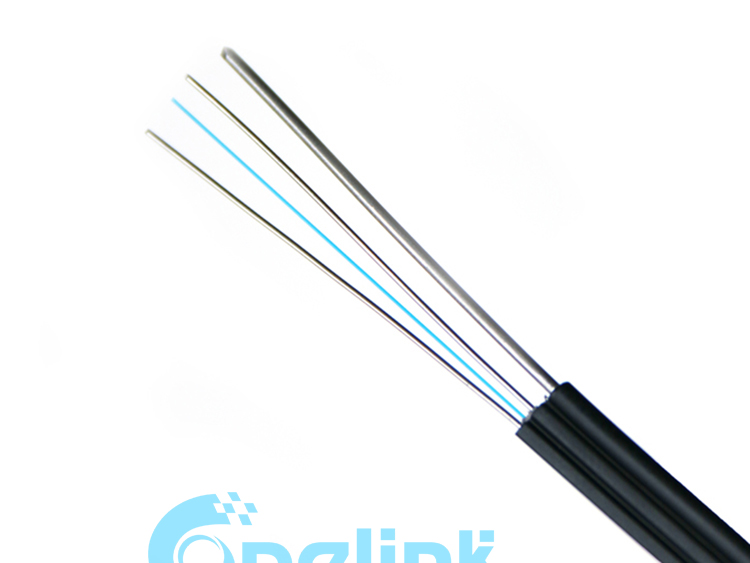

Self-supporting Metal Strength Member FTTH Fiber Cable
Features:
Adopt fiber with small bending radius (G.657),
offering good bending resistance;
Adopt all-dry structure and fiber with small bending radius,
offering good bending resistance;
Easy cable stripping without need of tools, easy cable fixation
and low cost of installation.

Application:
As FTTH cable,for indoor horizontal and vertical cabling;
Indoor cabling  under  carpet and along corner.
Outdoor cable suitable as cable extending from outdoor (as aerial cable)
to indoor




   Technical Parameters:

Item Contents Value
Fibre Count 1 2 4
Self-supporting Strength member material Steel wire
diameter (mm) 1.1mm
Strength member material KFRP/Steel wire
diameter (mm) 0.52/0.45 0.52/0.45 0.52/0.45
Sheath Thickness (mm)
0.40
Cable  diameter(mm) Approx. 2.0*5.2(±0.1) 2.0*5.2(±0.1) 2.0*5.2(±0.1)
Cable weight(kg/km) Approx. 18.5/20 19/20.5 20/21.5
Operating  temperature range -40~+70
Tensile Strength Short/ Long Term(N) 600/300
Crush resistance short/long term (N/100mm) 1000/500

   Mechanical Characteristic
Items Test Standard Specified Value Requirements
Tension IEC 60794-1-2-E1 See Technical data Additional attenuation:
0.4dB after test
Crush IEC 60794-1-2-E3 See Technical data Additional attenuation:
0.4dB after test
Impact IEC 60794-1-2-E4 R=300mm, 10Nm,
one in 3 different places
Additional attenuation:
0.4dB after test
Repeated Bending IEC 60794-1-2-E6 R=30H Additional attenuation:
0.4dB after test
Temperature Cycling IEC 60794-1-2-F1 -40~+70 Attenuation change:
0.4dB/km after test
    Notes:1.All optical measurements at 1550nm.
              2.
For more details, please contact our sales
