FC-FC Plug-in Fixed Optical Attenuator, Connector type Fiber Optic Attenuator

Item No.: Y-FO-OA-013
FC-FC Plug-in Fixed Optical Attenuator, Metal shell protection, thread locking, reliable link, economical price, welcome to consult.
Description Parameters Company profile Related Product
FC-FC Fixed optical attenuators are used in the fiber optic links to reduce the optical power at a certain level.Commonly used fiber optic attenuators
are the female to male type, which is also called a plug fiber attenuator. They are with ceramic ferrules and there are various types to fit
different kinds of fiber optic connectors. Fixed value fiber optic attenuators can reduce the optical light power at a fixed level,Variable fiber
optic attenuators are with adjustable attenuation range. There are also attenuation fiber optic patch cables available, their function is same
as attenuators and are used inline.

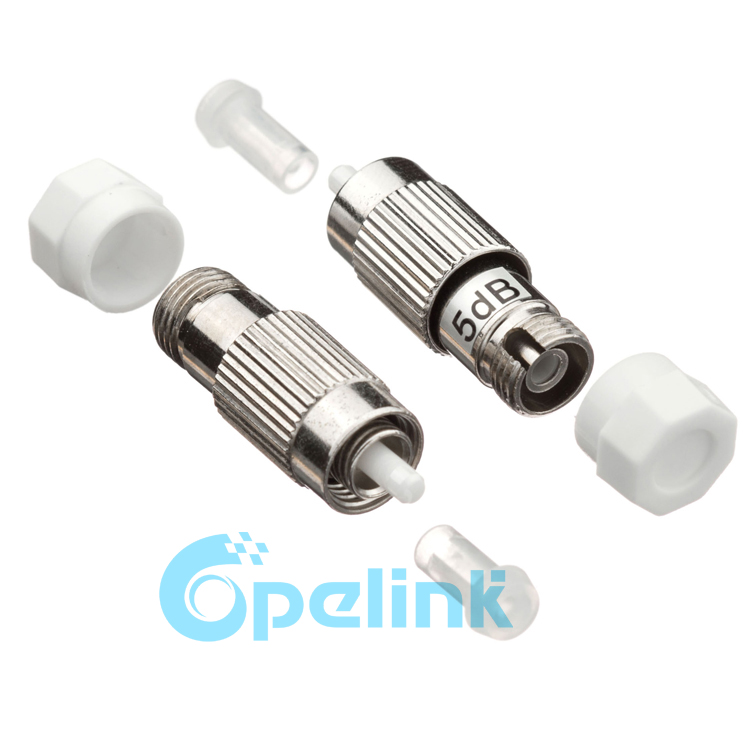

FC-FC Plug-in Fixed Optical Attenuator, metal housing
Environmentally stable
High performance
Broadband coverage
Complied with Telcordia (GR-910-CORE and GR-1221-CORE)

Power management in optical networks
Wavelength division multiplexing(WDM) system channel balancing
Erbium Doped Fiber Amplifiers (EDFA)
Optical add-drop multiplexers(OADM)
Receiver protection
Test equipment
compensation of different connector attenuation

Connector Type FC,SC,ST,LC,MU,Hybrid,etc.
Attenuation Value 1dB ~ 30dB
Model Fixed, In-line, Variable,Adapter (Female to Female), Connector (Male to Female)
Operating Wavelength SM:1240 ~ 1620nm (Dual 1310/1550nm) MM:850/1300nm
Return Loss UPC >55dB,APC >60dB
Attenuation Tolerance +/-0.5 dB for 1 to 5dB attenuation
+/-10% for 6 to 30dB attenuation
Maximum Optical Input Power: 1000mW(SM);200mW(MM)
Polarization Dependent Loss: ≤0.2dB
Exchangeability: ≤0.2dB
Repeatability: ≤0.2dB
Durability:≤0.2dB Typical 1000 matings
Operating Temperature Range: -40 ºCto 75ºC
Storage Temperature Range: -40ºC to 85ºC
Humidity: 95%RH
