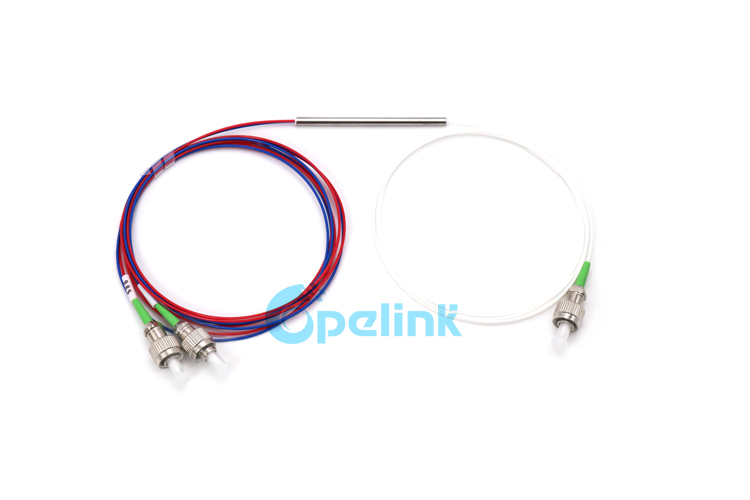

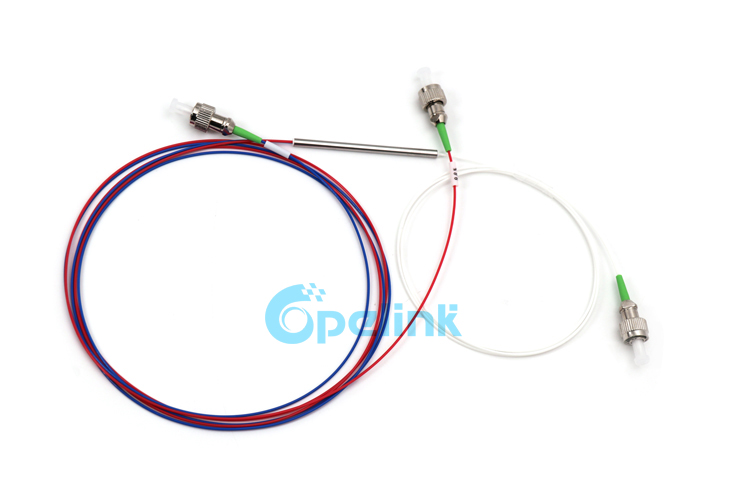

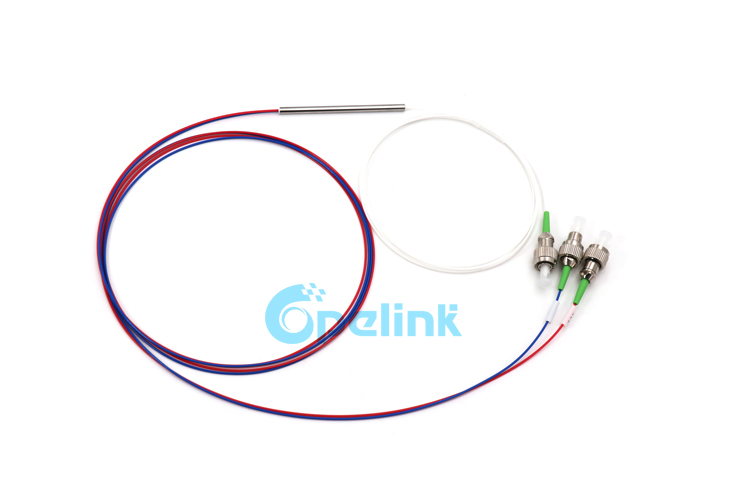

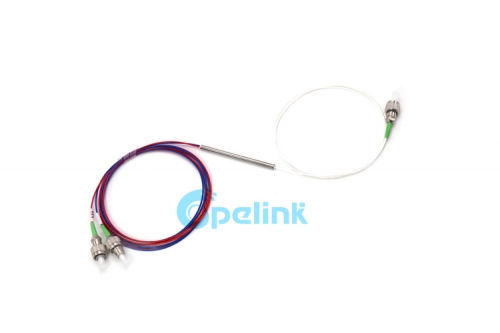

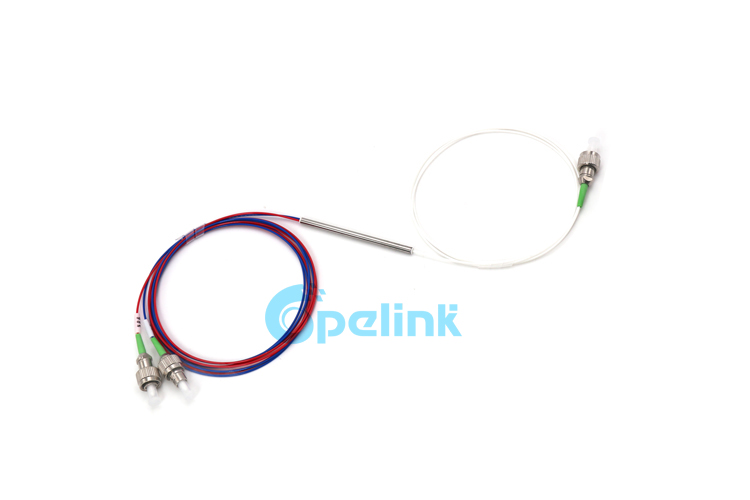

FBT Optical Splitter: 1x2 Optical Coupler Splitter, 0.9mm FC/APC Steel Tube, Singlemode

Item No.: Y-FO-FS-044
FBT Optical Splitter is called Fiber Optic FBT Coupler, We offer 1xN, 2xN singlemode and multimode Fiber couplers, Choose us, Give you competitive prices.
Description Parameters Company Profile Related Product
Description:
FBT Optical Splitter is tied to two or more fibers, and then melted in a cone machine, pull tensile and real-time
monitoring of changes in splitting ratio, melt tensile splitting ratio to meet the requirements end, wherein one end of a fiber optic
reserved ( The remaining cut off) as the input terminal and the other end a multitude of road outputs.

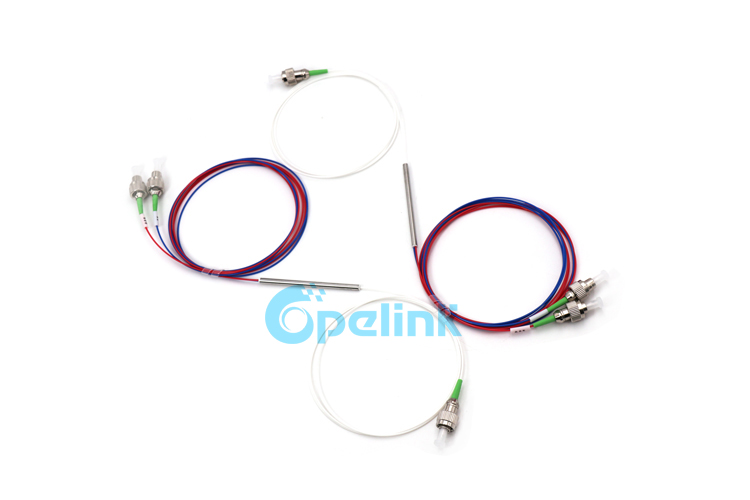

1x2 FC/APC Steel Tube FBT Optical Splitter, which is a very competitive product provided by opelink company
Features:
Low insertion loss, low PDL
High credibility and stability
Industry standard and custom housing available
Various coupling ratio and connector available

Application:
Optical communication system
CATV System
System and signal monitoring
Fiber to the home (FTTH)

Order Information:

Type Port Wavelength  Ratio Fiber Pigtail Type
Input-output
 Length
Input-output
Connector
Input-output
Type S=Coupler  W=WDM
Port 1001=1x1, 1002=1x2, ..., 4004=4x4, ..., 1032=1x32, 2032=2x32
Wavelength 98=980, 13=1310, 14=1490, 15=1550, 1314=1310&1490, 1315=1310&&1550,
345=1310&1490&1550, 85=850, 9815=980&1550, 8513=850&1310
Coupling Ratio 01=1/99, 02=2/98,... 05=5/95,...10=10/90,...45=45/55,...00= 50/50 equal ratio, X=Others
/ 01=1dB, 02=2dB,...05=5dB...10=10dB...... X=Others
Fiber Type S1=G652D  S2= G657A1  M5=50/125  M6=62.5/12  M3=OM3  M4=OM4  XX=other
Pigtail Type B=250µm Bare fiber, L=900µm Loose tube,  2=2.0mm,  3=3.0mm,  A=Adapter
Pigtail Length 0.5M=0.5M  10M=10M  XXX=other
Connector Type FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None,
FU/FA= input FC/UPC / output FC/APC,  XX=Others
Packing Dimension 01,02,03,04,05,H,L,U,G,X



























Optical Specifications:
Table(1)
Coupling Ratio Insertion Loss(dB)
P  Grade S  Grade
50/50 ≤3.4 ≤3.6
45/55 ≤3.7/2.7 ≤3.8/2.9
40/60 ≤4.4/2.6 ≤4.7/2.8
35/65 ≤4.8/2.0 ≤4.9/2.10
30/70 ≤5.7/1.9 ≤6.0/2.0
25/75 ≤6.9/1.3 ≤6.5/1.4
20/80 ≤7.6/1.2 ≤8.0/1.3
15/85 ≤8.6/0.7 ≤8.9/0.88
10/90 ≤11.0/0.65 ≤11.5/0.8
5/95 ≤14.2/0.4 ≤14.8/0.5
2/98 ≤18.5/0.25 ≤19.0/0.35
1/99 ≤21.5/0.2 ≤22.0/0.3
Excess Loss(Typ.)(dB) ≤0.1
PDL(Max.)(dB) ≤0.1
Operating Wavelength(nm) 1310±40, 1550±40,1310/1550±40,1310/1550/1490±40 or 850, 850/1310 custom wavelength
Directivity(dB) ≥55
Return Loss(dB) ≥50
Port Configuration 1×2 or 2×2
Note:All the data above does not include connectors.

Table
(2)
Parameter Specification
Operating Wavelength(nm) 1310±40, 1550±40,1490±10
Fiber Type SMF
(1×N)(2×N) N=3 N=4 N=5 N=6 N=8 N=10 N=16 N=24 N=32
IL(MAX)(dB) 5.4 6.9 8.1 8.9 10.3 11.5 13.8 15.6 17.2
Uniformity(dB) 0.5 0.7 1.1 1.3 1.5 1.7 1.8 2 2.2
PDL(dB) ≤0.20 ≤0.20 ≤0.30 ≤0.30 ≤0.30 ≤0.40 ≤0.40 ≤0.50 ≤0.50
Return Loss(dB) ≥55
Directivity(dB) ≥50














 Note:All the data above does not include connectors.
