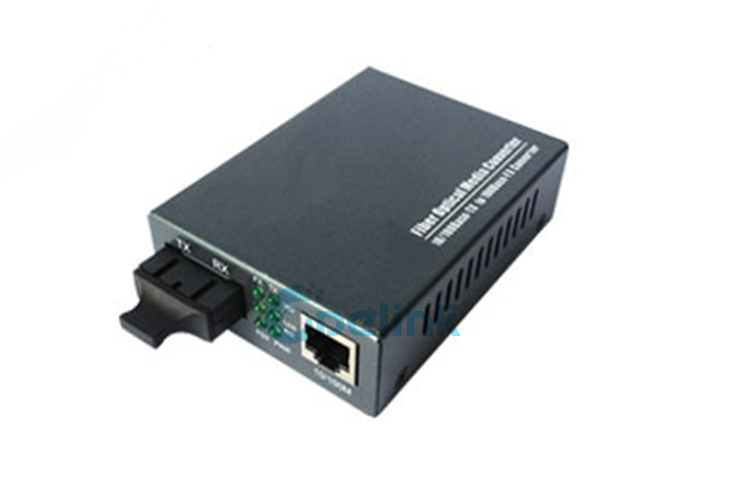

Ethernet Fiber Optic Media Converter 10/100Base-Tx

Item No.: Y-FO-MC-002
Opelink supply 10/100Base Ethernet Fiber Media Converters, 1000Base Gigabit Fiber Media Converter,SFP Fiber Media Converter, Options in singlemode dual fiber, multimode dual fiber and singlemode single fiber.
10/100Mbps adaptive fast Ethernet fiber media converter (also called optical-to-electric medium converter), which can implement mutual conversion between 10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal. This type of fiber converter can extend the transmission distance of a network from100m over copper wires to 120Km (single-mode full duplex). FC610A supports two different types of network connection medium: 10/100Base-TX and 100Base-FX, with the application of the switching technology and the storing & forwarding technology. It supports transmission in dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fibers.
Ethernet Fiber Optic Media Converter 10/100Base-Tx
1.Auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex.
2.UTP port supports MDI/MDI-X auto crossover.
3.Indicator function of link fault (LFP): When optical fiber or UTP is at fault, the converter could stop all the link. (Optional)
4.Multiple Optical Transceiver could be chosen: SC, ST or FC, singlemode / multimode
5.Supporting 1600 bytes packet for management
6.Converter working mode could be chosen: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.
7.Internal Circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
8.Internal or External switching power: for users to choose.

Parameter Specifications
Access mode 10/100Mbps
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control
Wavelength 850nm/1310nm/1550nm
Transmission distance Dual-fiber multi-mode: 2 km;
Dual-fiber single mode: 20/40/60/80/100/120 km;
Single fiber single mode: 20/40/60/80/100 km
Category-5 twisted pairs: 100m
Port One RJ45 port: for connecting STP/UTP category-5 twisted pairs
One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm)
Single mode, dual fiber: SC or FC (9/125μm)
Single mode Single fiber: SC or FC (9/125μm)
Conversion means Store and Forward mode or Cut-Through mode
Buffer space Built in 128Kb RAM for data buffer
Flow control Full duplex: flow control;
Half duplex: back pressure
BER <19-9
MTBF 100,000 hours
LED indicator POER (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M)
Power supply External: AC90~264V/DC100~380V input, 5V1A output
Internal: AC90~264V/DC100~380V input
Power consumption <40W (the chassis at full load), <2W
Operating temperature -10~55ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing

Access Control Systems.
Building and Environmental Control Systems.
Tamper Switch.
10/100 Mbps Ethernet Media Converter.
High Speed Computer Links
