Distribution Fiber Optic Cable, Indoor Optical Fiber Bundle Cable

Distribution Fiber Optic Cable, Indoor Optical Fiber Bundle Cable

Item No.: Y-FO-FC-008

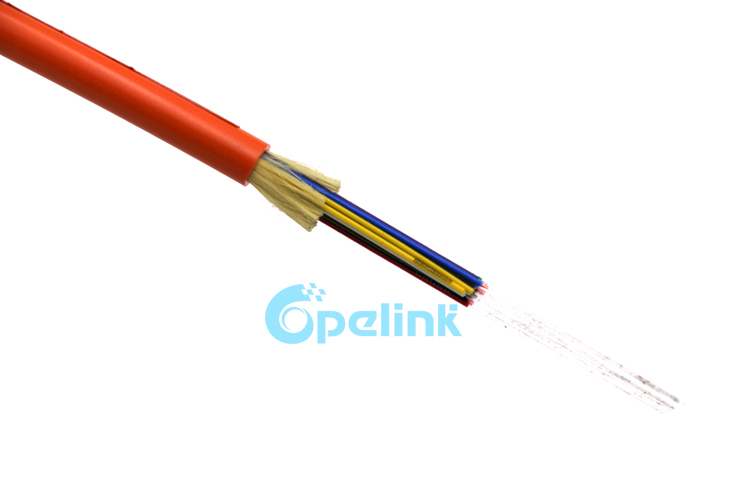

Indoor Distribution Optical Fiber bundle cable is made by evenly
applying strands of Aramid yarns or High strength glass Yarns as
the strength member over 900μm or 600μm tight buffer fibers
and then is completed with PVC(LSZH)jacket.

INQUIRY

6-2 Distribution Fiber Cable

Description Parameters Company Profile Related Product

Product Overview

Our indoor distribution fiber cable features a bundled design optimized for building backbone and horizontal cabling applications. The tight-buffered fibers provide excellent protection while maintaining flexibility for easy installation in conduits and cable trays.

Technical Specifications

Parameter	Specification
Fiber Count	2-48 cores
Fiber Type	Single-mode or Multimode
Buffer Type	Tight buffer 900μm
Strength Member	Aramid yarn
Sheath	PVC or LSZH
Outer Diameter	5-12mm depending on count
Temperature	-20°C to +60°C
Standards	IEC 60794, TIA-568

Key Applications

Building Backbone: Vertical cabling between floors
Horizontal Distribution: Zone cabling to work areas
Data Centers: Under-floor and overhead routing
Campus Networks: Inter-building connections

Product Advantages

Tight-buffered for direct connector termination
Flexible design for easy conduit installation
Multiple sheath options for different environments
Color-coded fibers for easy identification

Frequently Asked Questions

Q: Can it be used outdoors?
A: Not recommended without additional protection.
Q: What is the bend radius?
A: 10x outer diameter during installation.
Q: Is plenum rated available?
A: Yes, with LSZH sheath option.

Specification：

Fiber count	Cable OD（mm）	Cable Weight（kg/km）		Tensile Strength (N)	Crush Resistance (N/100mm)	Bengding Radius（mm）
Fiber count	Cable OD（mm）	PVC Jacket	LSZH Jacket	Long Term /Short Term	Long Term /Short Term	Static/Dynamic
4	4.8±0.3	16	18	130/440	300/1000	20D/10D
6	5.1±0.3	20	23	130/440	300/1000	20D/10D
8	5.6±0.3	27	31	130/440	300/1000	20D/10D
12	6.2±0.3	32	36	130/440	300/1000	20D/10D
24	8.1±0.3	53	57	200/660	300/1000	20D/10D

Note:For more details, please contact our sales
