Breakout Optical Fiber Cable, Singlemode Indoor cabling Fiber Optic Cable, GJBFJV Multi-Fiber Optical Cable

Breakout Optical Fiber Cable, Singlemode Indoor cabling Fiber Optic Cable, GJBFJV Multi-Fiber Optical Cable

Name: Breakout Optical Fiber Cable, Singlemode Indoor cabling Fiber Optic Cable, GJBFJV Multi-Fiber Optical Cable
Brand: OPELINK
SKU: Y-FO-FC-050
Availability: InStock
Rating: 5 (1 reviews)

Item No.: Y-FO-FC-050

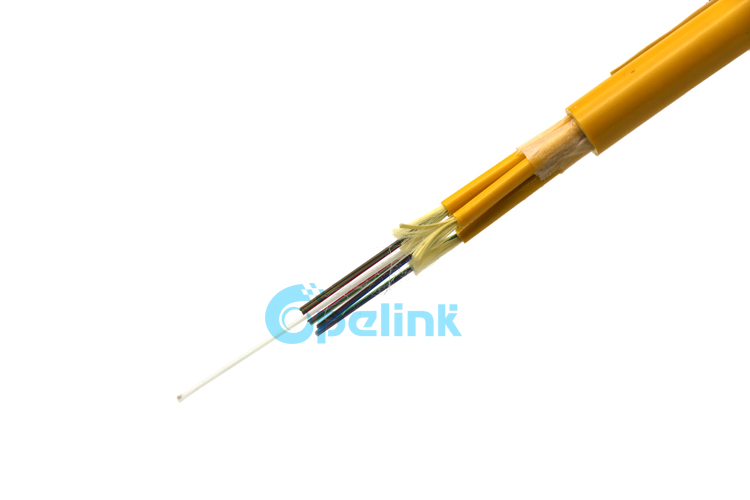

Breakout Optical Fiber Cable made of single-core optical cable stranded (or twisted around the central strengthening core to form a cable core), add some necessary aramid fibers, and then squeezing a layer of PVC (LSZH, TPU) and other materials.

INQUIRY

Description Parameters Company Profile Related Product

Description:
Breakout Optical Fiber Cable made of single-core optical cable stranded (or twisted around the central strengthening core to form a cable core), add some necessary aramid fibers, and then squeezing a layer of PVC (LSZH, TPU) and other materials.
Our product has the characteristics of softness, flexibility, and convenient operation. It has good mechanical and environmental performance, excellent flame retardant performance and easy peeling characteristics.
This is a singlemode breakout Optical Fiber Cable for indoor cabling, and it is also a cost-effective product of Opelink

This is a singlemode breakout Optical Fiber Cable for indoor cabling, and it is also a cost-effective product of Opelink

Features：
Layer stranding type optical cable structure, non-metallic center strengthening core makes the optical cable can withstand greater tension；
The outer protective material has the advantages of corrosion resistance, waterproof, UV protection, flame retardant, environmental protection, etc；
Aramid strengthening elements, so that the optical cable has excellent tensile performance；

Application：
Suitable for optical fiber active link jumper of optical communication instrument, equipment, computer room and optical distribution frame

Specification:

Fiber count	Cable OD（mm）	Cable Weight（kg/km）		Tensile (N)	Crush (N/100mm)	Bengding Radius（mm）
Fiber count	Cable OD（mm）	PVC Jacket	LSZH Jacket	Long Term /Short Term	Long Term /Short Term	Static/Dynamic
4	7.4±0.5	50	56	130/440	300/1000	20D/10D
6	8.4±0.5	66	74	200/660	300/1000	20D/10D
8	9.8±0.5	91	101	200/660	300/1000	20D/10D
12	12.4±0.5	140	155	200/660	300/1000	20D/10D
24	12.4±0.5	140	155	400/1320	300/1000	20D/10D
36	14.4±0.5	181	201	400/1320	300/1000	20D/10D
48	16.4±0.5	208	255	400/1320	300/1000	20D/10D

Note:For more details, please contact our sales
