Armoured Waterproof Fiber Optic PatchCord, Pigtail

Item No.: Y-FO-FP-038
Amored fiber optic pigtail, are with stainless steel tube inside the outer jacket to protect the central unit of the cable. They are flexible and can be bend randomly without being broken.
Product parameters
Brand Name: OPELINK
Place of Origin: Guangdong, China
Product name: Waterproof Fiber Optic Pigtail
Low Price: 15.00 USD
Description Parameters Company Profile Related Product

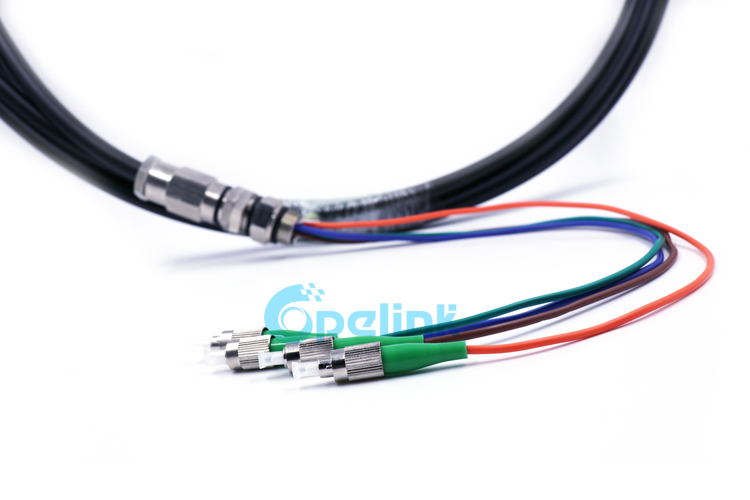

Waterproof Fiber Pigtail/PatchCord can be used in harsh environment.It is mainly used in outdoor connection of the optical transmitter.

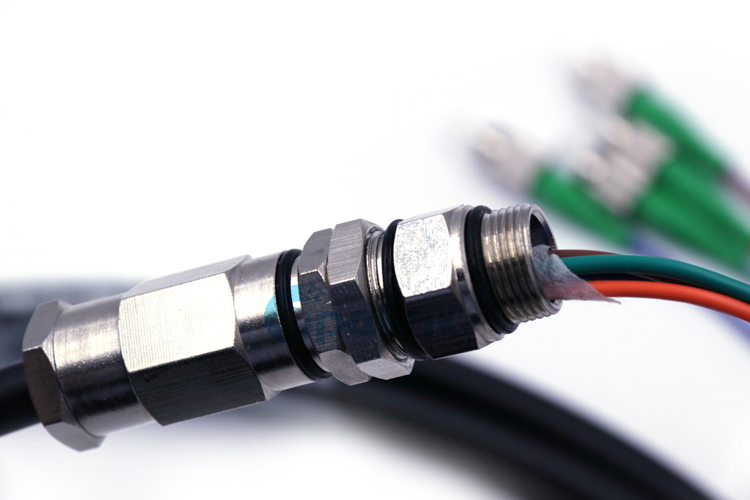

Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.

.2, 4, 6, 8 and 12 cords optional
.Good reliability and stability
.Excellent water-resistance performance
.Applicable connector: LC/SC/FC/ST
.Waterproof, rigid and anti-corrosive copper connector

.Optical fiber communication networks
.Telecommunication network
.Connection of equipment in the open air
.Installation and debugging in harsh conditions

Fiber Optic PLC Splitter  | Optical CWDM/DWDM/AWG  | FTTH Drop Fiber Optic Cable  | Fiber Optic PatchCord/jumper/Patch cable  |
Fiber Optic Fast Connector  | Optical Switch  | Fiber Optic Adapter  | Fiber Optic Attenuator  | Fiber Optic Cable TerminalBox |

Optical Specifications:
Parameter Singlemode Patchcord/Pigtail Multimode Patchcord/Pigtail
Polishing  Type PC UPC APC PC
Insertion loss(dB) <=0.3dB,MTRJ<=0.5dB <=0.3dB <=0.3dB <=0.3dB,MTRJ<=0.5dB
Return loss(dB) >=45dB,MTRJ>=35dB >=55dB >=65dB
Operating temperature -20ºC~75ºC
Storage Temperature -40ºC~75ºC
100 mating cycles loss I.L changed≤0.1dB
Durability >1000 cycles
Geometric Specification:
Parameter PC  Polishing APC Polishing
SC Type LC Type
R.O.C 10~25mm 7~25mm 5~12mm
Apex Offset <50um <50um <50um
Fiber Height -125nm-50nm   -100nm-100nm
Polishing Angle     8°± 0.3°
