9CH DWDM Module , 0.9mm LC/PC ABS BOX Mux & Demux Optical DWDM with Express port

Item No.: Y-FO-WD-057
9CH DWDM Mux  Demux Module, not only have excellent performance, but also have absolute competitive advantage and strength.
Description Parameters Company Profile Related Product
Description:

          DWDM(Dense Wavelength Division Multiplexing)is a Technology That Puts Data Different Sources Together on an Optical Fiber,
with Each Signal Carried at the Same Time on Its Own Separate Light Wavelength.

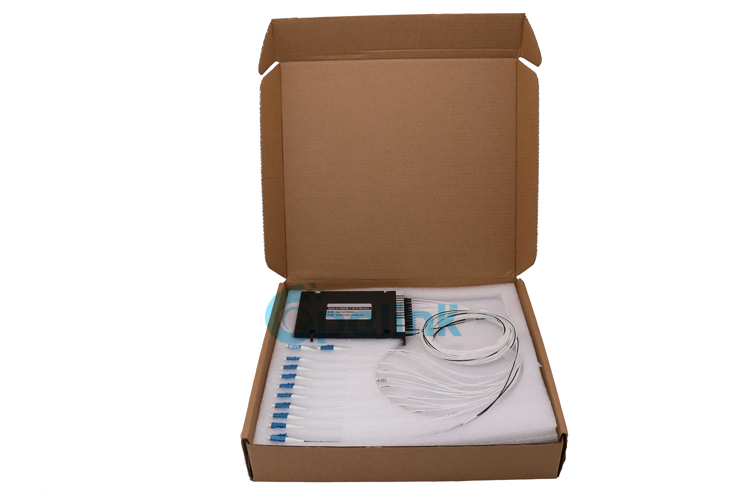

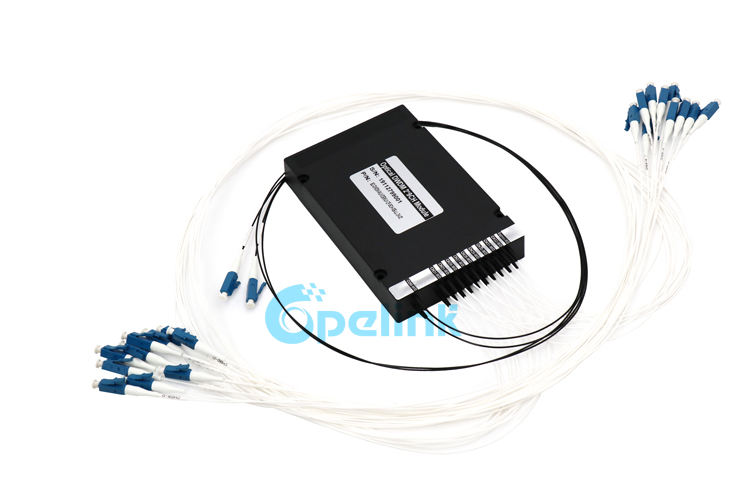

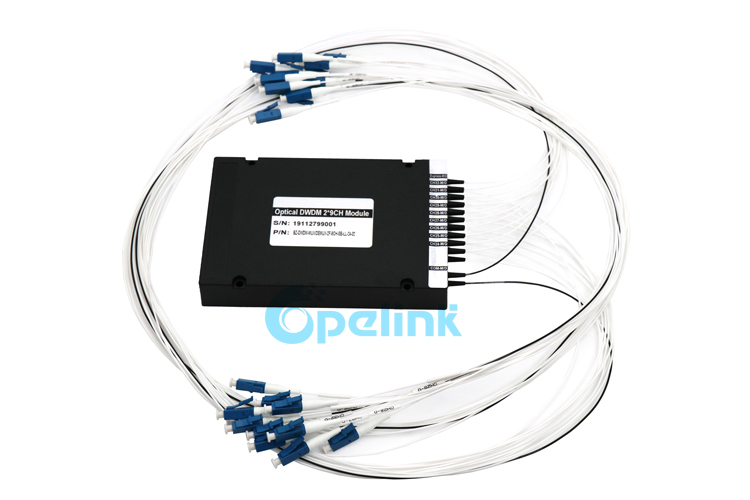

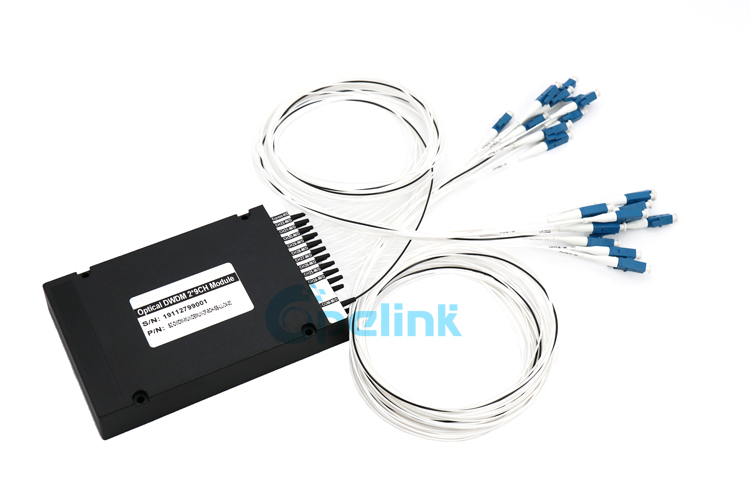

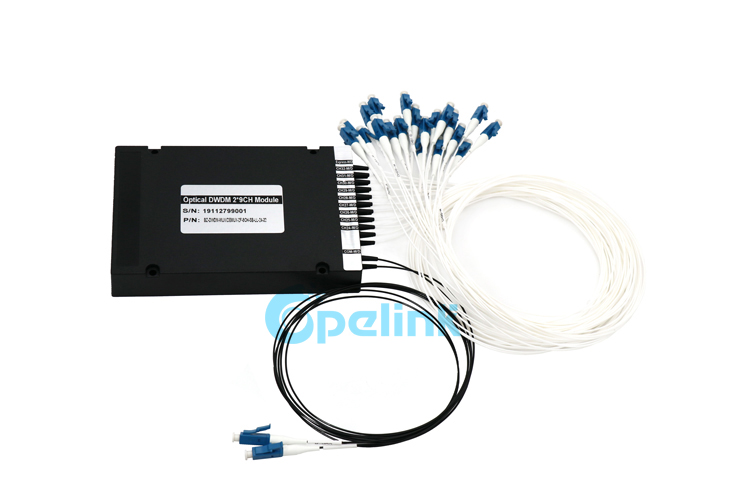

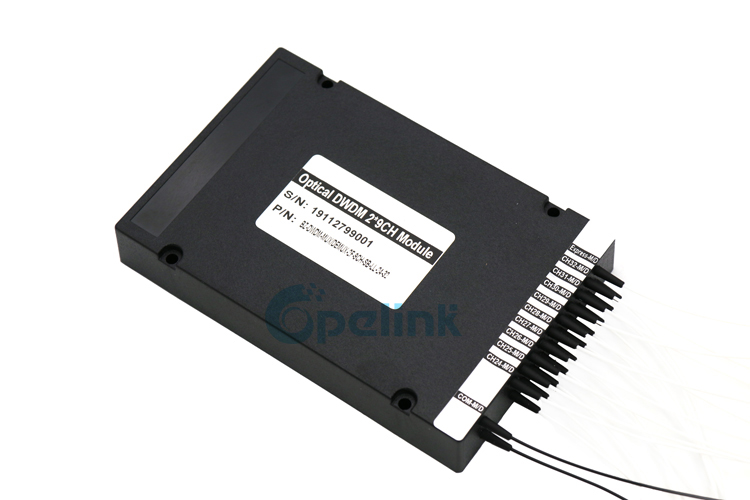

9CH DWDM Module with EXP port, ABS BOX packaging

Features:
High  Isolation
Compact  Design
Low insertion loss, low PDL
Good channel-to-channel uniformity

High Reliability and Stability
Application:
DWDM Network
Channel Add/Drop

Wavelength Routing
CATV Fiber Optical System

Order Information:
Type Channel Passband Upgrade Port Port First
Channel
Pigtail Fiber Length Connector
(Input-Output)
Package
M=Mux
D=Demux
M+D=Mux+ Demux

1=100GHz
2=200GHz

U= Yes
0= No
1002=1X2   1004=1X4
1008=1X8
1016=1X16
XX=other
C21
C22
C23
(Refer to ITU Channel Table)
L=900um loose  tube
2=2.0mm
3=3.0mm
B= baare fiber
A= Adaptor
S1=G652D
S2=G657A1
X= other
0.5M=0.5M
1M=1M
X=other
SU=SC/UPC
SA=SC/APC
FU=FC/UPC
 FA=FC/APC
ST=ST/UPC
LA=LC/APC
LU=LC/UPC
 00=NONE
XX= Other
01,02,03,
04,05

H,L,U,G,X

 Packing Information:
1CH 2/4CH 8CH 16/18/40/48CH
05        01/L/G/U 02/L/G/U 03/L/H/G/U
04

 Package Dimension:
No. Dimension No. Dimension
05 Φ5.5×L38 Stainless steel tube 02 120× 80× 18 Plastic box
04 90 X 20 X 9.5 Plastic box L 150 × 115 × 18 Aluminum box
01 100 × 80 × 10  Plastic box W 150X65X16
H 150 × 115 × 18 Plastic box Y 127X70X11
B Φ5.0×L38 Stainless steel tube U 19’’x=1,2,3,4 U rack mount
G LGX box : 1G, 2G, 3G, 4G X Customized package
03 141× 115 × 18 Plastic box



Optical Specifications:
Parameter Value
Channels Number 2 4 8 16 32 40
Central Wavelength(nm) ITU-T Grid
Channel Spacing(GHZ 100/200
Bandwidth(nm) ITU-T ±0.11/ ITU-T ±0.25
I.L(dB) Typ. 1.2 1.6 2.2 3.2 3.8 5.2
MAX. 1.4 1.8 2.8 5.0 5.6 6.0
Ripple(dB) ≤0.5
PDL(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30 ≤0.30
Isolation(dB) Adjacent Channel ≥25
Non-adjacent Channel ≥45
Directivity(dB) ≥50
R.L(dB) ≥45
Operating Temperature(℃) -5~+75

Storage Temperature(℃)
-40~85
Note: All the data above does not include connectors
