8CH LGX Mux/Demux Optical DWDM, LC Adapter Plug-in DWDM Module with Upg

Item No.: Y-FO-WD-035
LGX DWDM Module, Adapter Plug-in Type, From design to production, every process is carefully controlled, high standards and high quality, trustworthy!
INQUIRY
Description Parameters Company Profile Related Product
Description:
DWDM(Dense Wavelength Division Multiplexing)is a Technology That Puts Data Different Sources Together on an Optical Fiber,with Each Signal
Carried at the Same Time on Its Own Separate Light Wavelength

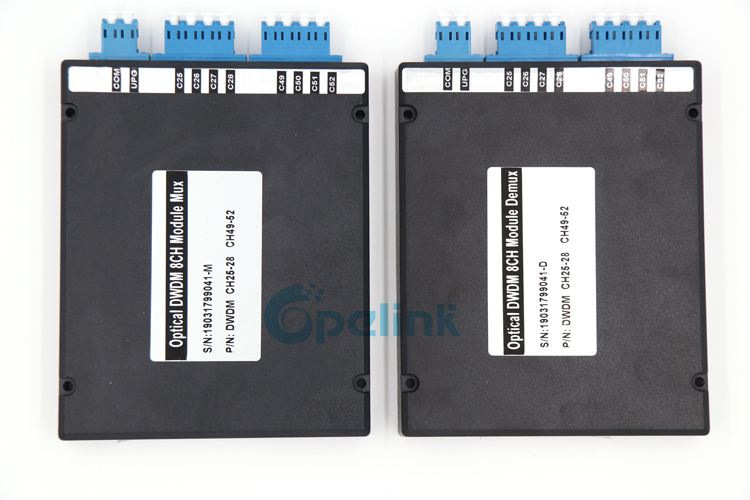

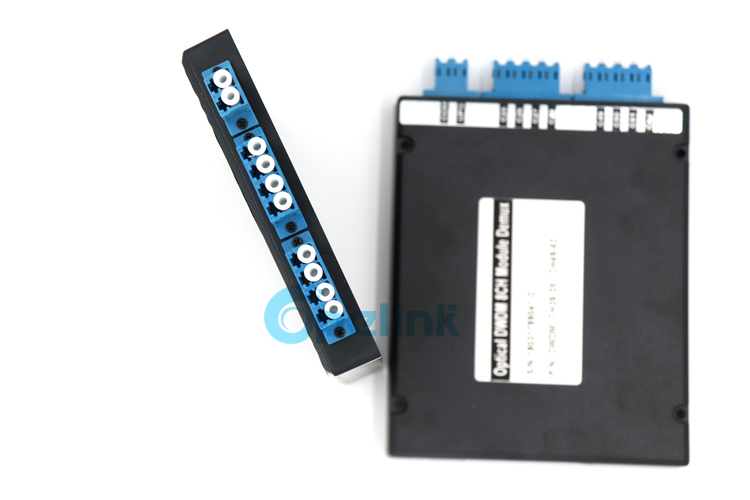

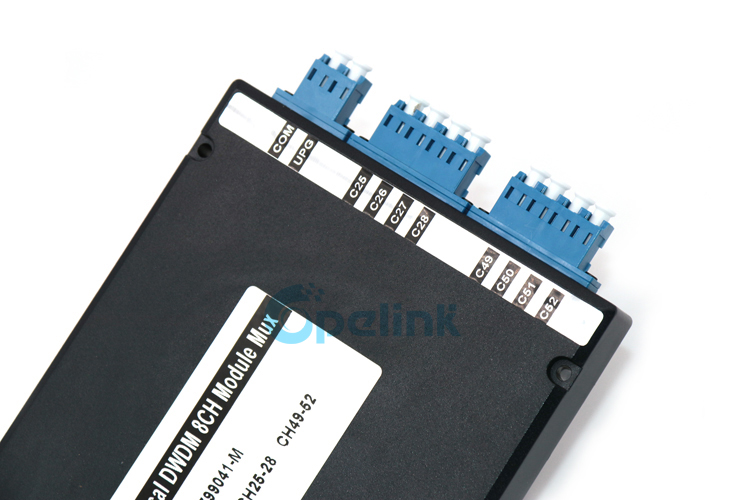

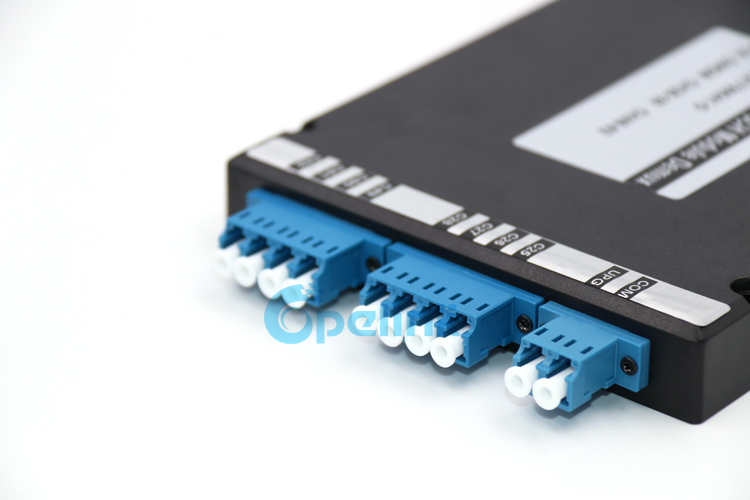

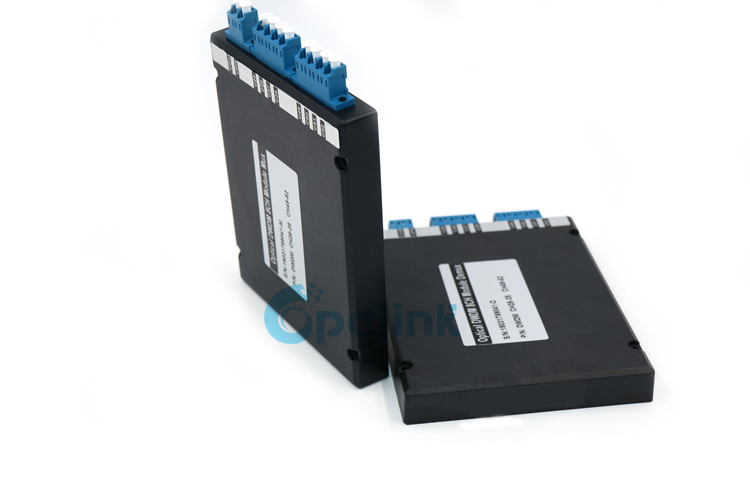

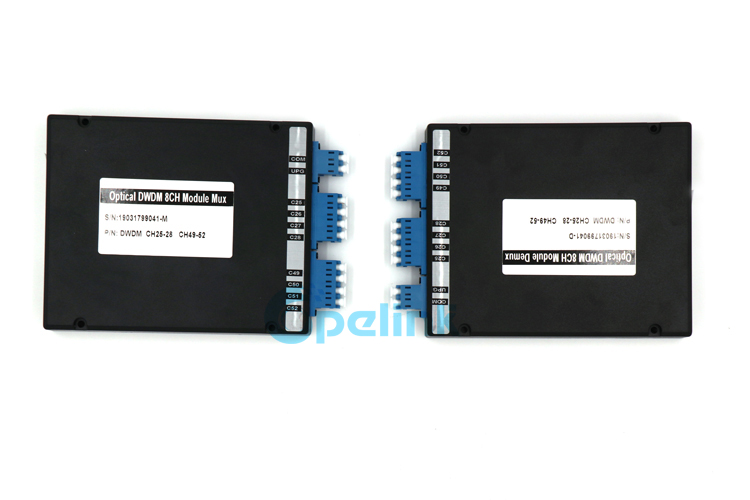

An 8CH Mux/Demux Optical DWDM product in LGX BOX package, SM LC Adapter plug-in
Features:
Low insertion loss, low PDL
High  Isolation
Compact  Design
Good channel-to-channel uniformity
High Reliability and Stability
Application:
Channel Add/Drop
DWDM Network
Wavelength Routing
CATV Fiber Optical System


Optical Specifications:
Parameter Value
Channels Number 2 4 8 16 32 40
Central Wavelength(nm) ITU-T Grid
Channel Spacing(GHZ) 100/200
Bandwidth(nm) ITU-T ±0.11/ ITU-T ±0.25
I.L(dB) Typ. 1.2 1.6 2.2 3.2 3.8 5.2
MAX. 1.4 1.8 2.8 5.0 5.6 6.0
Ripple(dB) ≤0.5
PDL(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30 ≤0.30
Isolation(dB) Adjacent Channel ≥25
Non-adjacent Channel ≥45
Directivity(dB) ≥50
R.L(dB) ≥45
Operating Temperature(℃) -5~+75
Storage Temperature(℃) -40~85
Note:
1.All the data above does not include connectors
2.For more details, please contact our sales
