8+1CH Mux+Demux Optical CWDM Module , ABS Box , 0.9mm LC/PC

Item No.: Y-FO-WD-042
Buy CWDM Module from opelink, cost-effective, Good Prices, Excellent Service, Good Quality, Your choice.
  • Brand Name: OPELINK
  • Description Parameters Company Profile Related Product
    Description:
    Coarse Wavelength Division Multiplexer (CWDM) Utilizes Thin Film Coating Technology and Proprietary Design of Non-flux Metal Bonding Micro Optics Packaging.

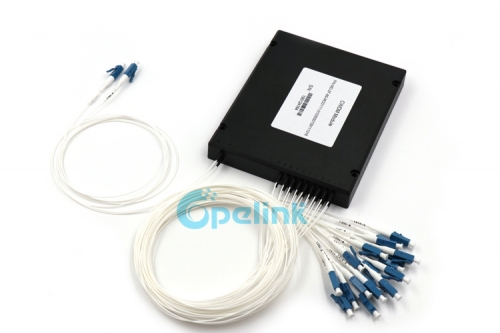

    8CH Mux+Demux Optical CWDM Module, ABS Box, LC/PC connector
    Features:
    Low insertion loss, low PDL
    High  Isolation
    Compact  Design
    Good channel-to-channel uniformity
    High Reliability and Stability
    Compliance with Telcordia GR-1221/1209

    Application:
    CWDM System
    PON NET Works
    CATV LINKS


    Order Information:
    Type Upgrade Port Port Wavelength Pigtail Fiber Length Connector
    (Input-Output)
    Package
    M=Mux
    D=Demux
    M+D=Mux+ Demux


    U= Yes
    0= No
    1002=1X2   1004=1X4
    1008=1X8
    1016=1X16
    XX=other
    27=1270
    47=1470
    49=1490
    61=1610
    Or
    271=1271
    471=1471
    491=1491
    611=1611



    L=900um loose  tube
    2=2.0mm
    3=3.0mm
    B= baare fiber
    A= Adaptor
    S1=G652D
    S2=G657A1
    X= other
    0.5M=0.5M
    1M=1.M
    X=other
    SU=SC/UPC
    SA=SC/APC
    FU=FC/UPC
    FA=FC/APC
    ST=ST/UPC
     LA=LC/APC
    LU=LC/UPC
     00=NONE
    XX= other
    01,02,03,04,05
    H,L,U,G,X



    Optical Specifications:
    Parameter Value
    Channels Number 2 4 8 16 18
    Central Wavelength(nm) ITU-T Grid
    Bandwidth(@0.5dB Pass band)(nm) ITU-T ±6.5
    Channel Pass band(nm) 20
    I.L(dB) Typ. 1.2 1.6 2.2 3.2 3.8
    MAX. 1.4 1.8 2.8 5.0 5.6
    Ripple(dB) ≤0.3
    PDL(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30
    Isolation(dB) Adjacent Channel ≥30
    Non-adjacent Channel ≥45
    Directivity(dB) ≥50
    R.L(dB) ≥45
    Operating Temperature(℃) -5~+75
    Storage Temperature(℃) -40~85
    Note: All the data above does not include connectors
