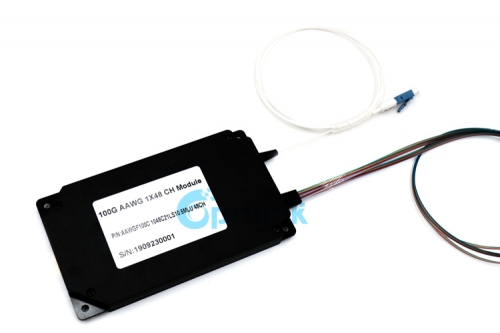

48CH Compact Package Athermal AWG Module, Guassian AAWG DWDM module , High Channel Isolation Flat-top AAWG Use to DWDM Network

Item No.: Y-FO-WD-063
Athermal AWG module  adopts non-hear sensitive structure eliminating the need for chip temperture control. Our products are of compact design, low insertion loss, low PDL, and high channel isolation.
  • Brand Name: OPELINK
  • Place of Origin: Guangdong, China
  • Product name: AAWG
  • Low Price: 350.0 USD
  • Description Parameters Company Profile Related Product
    Description:

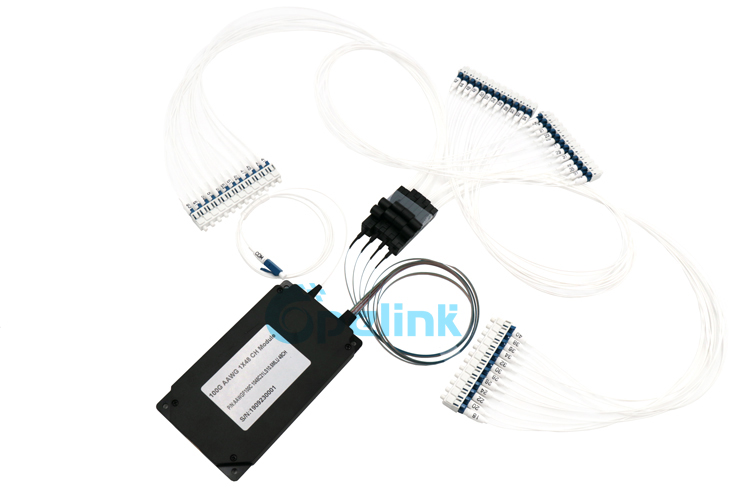

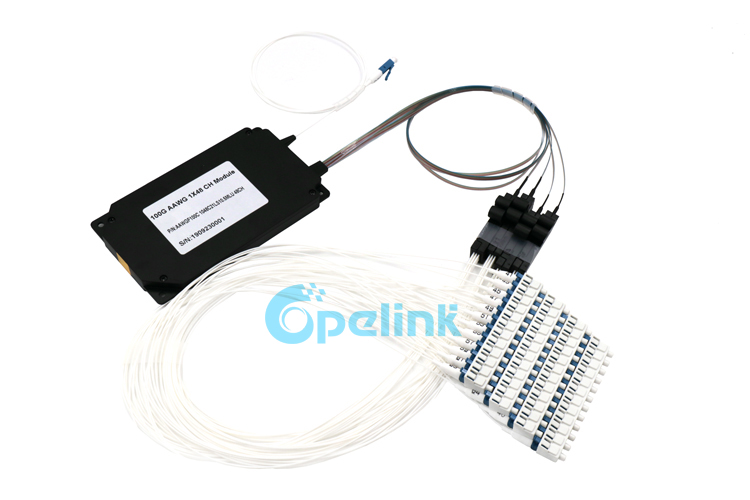

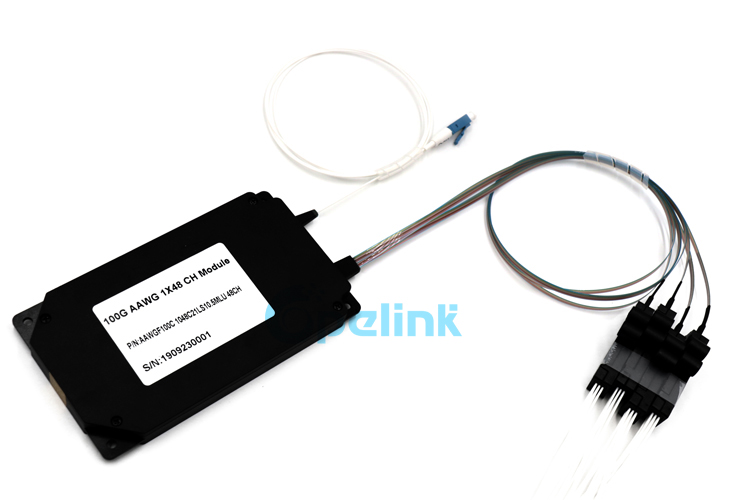

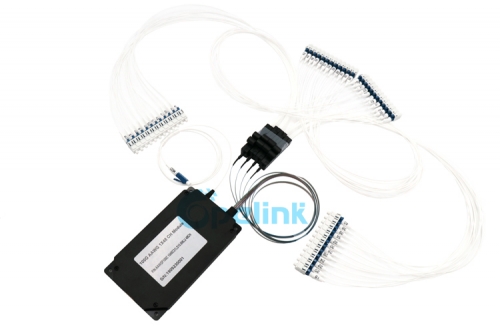

    Athermal AWG (Athermal Arrayed Waveguide Grating) Mux/DeMux Modules are part of a series of high performance products
    based on silica-on-silicon planar technology.

    It operates at 50GHz or 100GHz channel spacing ITU Grid DWDM wavelengths from 1526nm to 1565nm. The AAWG DWDM
    can be used
     to replace the filter-type DWDM for cases where no power is available.

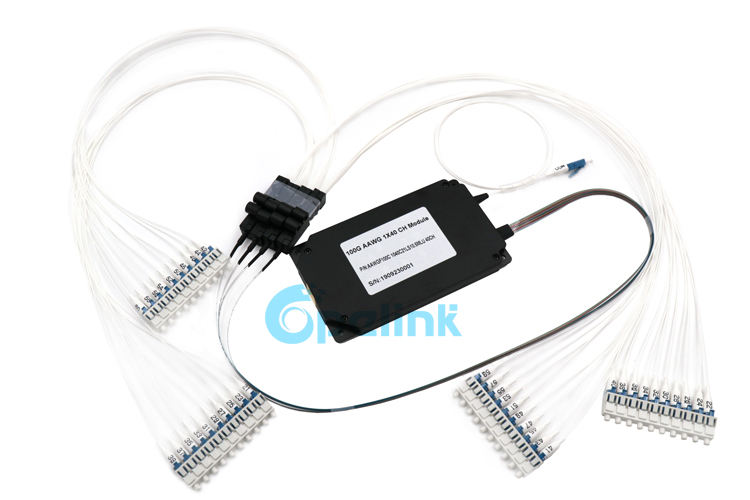

    48CH Guassian AAWG DWDM module, This is a product of Opelink that is highly trusted by customers


    Features
    Compact Package
    Multi-channel Number

    MUX/DEMUX Functionality
    Telcordia GR-1209/1221 compliant
    Athermal Design, Electrical Power is Not Required
    Low Insertion Loss,Low PDL,High Channel Isolation

    Applications
    PON Networks
    DWDM Transmission

    Metro Area Networks
    Long-haul Networks

    Building Blocks for VMUX
    Building Blocks for ROADM


    Order Information

    Filter Mode Channel Spacing Operating Band Channel Number First Channel Common Length Ribbon Fiber Length Connector Type
    F=Flat-top
    G=Gaussian
    B=Broad Gaussian
    100=100GHz
    50=50 GHz
    C=C Band
    L=L Band
    CL=C&L Band
    X=Others
    1016=
    16 channel

    1032=
    32 Channels
    1040=
    40 Channels
    1048=
    48 Channels
    XX=Others
    C21=C21
    C
    22=C22
    L71=L71
     …

    (Refer to ITU Channel Table)
    0.5M=0.5M
    1M=1M
    XX=OTHER

    0.5M=0.5M
    1M=1M
    XX=OTHER

    FU=FC/UPC
    FA=FC/APC
    SU=SC/UPC
    SA=SC/APC
    ST=ST/UPC
    LU=LC/UPC
    LA=LC/APC
    00=None
    X=Others














    Specifications:
    Parameters AAWG DWDM MUX/DEMUX
    Channel Space (GHz) 50GHz 100GHz
    Pass Band Type Flat-top Gaussian Flat-top
    Central Wavelength ITU-T Grid
    Grade Typ Min Typ Min Typ Min
    Channel Number 80/96 32/40/48
    Wavelength Accuracy (nm) ±0.04 ±0.05
    Pass Band @1dB (nm) >0.2 >0.2 >0.4
    Pass Band @3dB (nm) >0.4 >0.4 >0.6
    Insertion Loss (dB) <7.0 <6.0 <4.0 <3.5 <6.5 <5.0
    Adjacent Crosstalk (dB) >26 >26 >23
    Non-Adjacent Crosstalk (dB) >26
    Total Crosstalk (dB) >20 >21
    Return Loss (dB) >40
    Ripple (dB) <1.5 <0.5
    Uniformity (dB) <1.5
    Polarization Dependent Loss (dB) <0.7 <0.6 <0.5 <0.4
    Polarization Mode Dispersion (ps) <0.5
    Chromatic Dispersion (ps/nm) ±30 ±20
    Operating Temperature (℃) -575
    Storage Temperature (℃) -4085
    Note:
    1.All the data above does not include connectors.
    2.For more details, please contact our sales.
