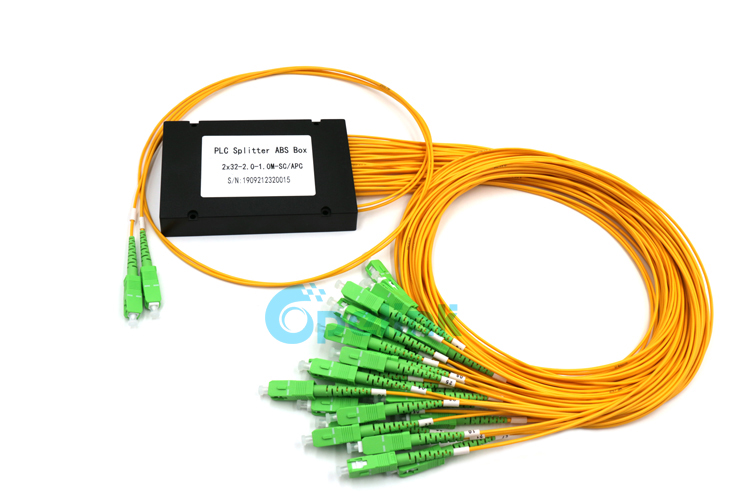

Package Style | ABS Module | Configuration Type | 2x32 |
Fiber Grade | G.652D/ other | Fiber Mode | Singlemode |
Connector Type | SC/APC | Split Ratio | 50/50 |
Input/Output Fiber Diameter | 2.0mm | Input/Output Fiber Length | 1.5m/ other |
Insertion Loss | ≤18.0dB | Return Loss | ≥55dB |
Loss Uniformity | ≤1.8dB | Directivity | ≥55dB |
Polarization Dependent Loss | ≤0.3dB | Temperature Dependent Loss | ≤0.5dB |
Wavelength Dependent Loss | ≤0.5dB | Operating Bandwidth | 1260~1650nm |
Operating | -40 to 85°C | Storage Temperature | -40 to 85°C |
Structure | Package Type |
Pigtail In | Pigtail Out | Connector | Fiber Core | Pigtail Length | Package |
1002=1X2 1004=1X4 1032=1X32 1064=1x64 2002=2X2 2004=2X4 2008=2X8 2032=2X32 2064=2X64 xxxx=other |
M= Miniature Package B= Box package R= Rack Mount P= Blade Package |
B=250um bare fiber L=900um loose tube 2=2.0mm 3=3.0mm A=Adaptor XX= other |
B=250um bare fiber L=900um loose tube 2=2.0mm 3=3.0mm A=Adaptor XX= other |
SU=SC/UPC SA=SC/APC FU=FC/UPC FA=FC/APC ST=ST/UPC LA=LC/APC LU=LC/UPC 00=NONE XX=other |
S1=G652D S2= G657A1 M5=50/125 M6=62.5/125 M3=OM3 M4=OM4 XX=other |
0.5M=0.5M 10M=10M XXX=other |
S1,S2...S12 01,02,03,04 U,G,X |
Plastic Box package/mm | Miniature Package/mm | Blade Package/mm | Rack Mount/mm |
01=100X80X9 02=120X80X18 03=140X114X18 04=90x20x9.5 XX= other |
S1=40X4X4 S2=45X4X4 S3=45X4.5X4 S4=50x7x4 S5=60X7X4 S6=60X12X4 S7=65X7X4 S8=80X12X4 S9=80X20X6 S10=90x20x6 S11=100x40x6 S12=55x7x4 |
21=130X100X25 24=130X100X206 22=130X100X50 25=130X100X284 23=130X100X102 26=130X100X76 XX= other |
XU=19” Rack Mount (X=1,2,3,4,) 31=R Type Mount Box 32=Wall-Mount Type 33=ODF Type XX= other |
Parameter | Value | |||||||
Product Type | 1×2/2x2 | 1×4/2x4 | 1×8/2x8 | 1×16/2x16 | 1×32/2x32 | 1×64/2x64 | 1×128/2x128 | |
Wavelength(nm) | 1260~1650 | |||||||
I.L(dB) | Typ. | 3.6/4.2 | 7.1/7.2 | 10.4/10.6 | 13.6/13.8 | 17.2/17.5 | 20.1/20.5 | 25.0/25.2 |
Max. | 4.3/4.5 | 7.4/7.6 | 10.7/11.0 | 14.0/14.8 | 18.0/18.0 | 21.5/21.5 | 25.8/25.8 | |
Uniformity(Max.)(dB) | 0.5/0.8 | 0.8/1.0 | 1.0/1.2 | 1.4/1.5 | 1.6/1.8 | 2.0/2.5 | 2.6/3.0 | |
PDL(Max.)(dB) | 0.2/0.2 | 0.3/0.3 | 0.3/0.3 | 0.3/0.3 | 0.3/03 | 0.5/0.5 | 0.8/1.0 | |
TDL(Max.)(dB) | 0.5 | |||||||
R.L(dB) | ≥55(APC)/≥55(UPC) | |||||||
Directivity(dB) | ≥55 | |||||||
Operating & Storage Temperature |
-40~+85 | |||||||
Note: All the data above does not include connectors. UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB. |
