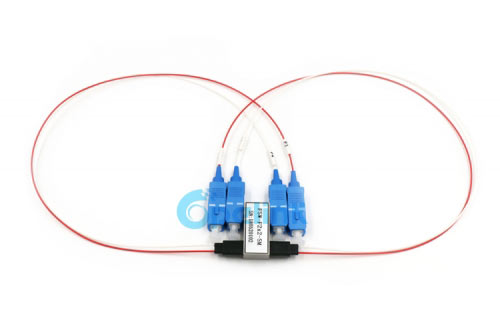

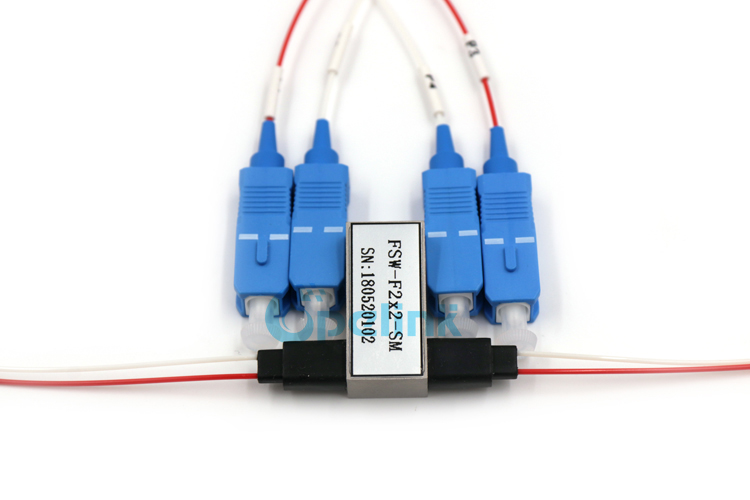

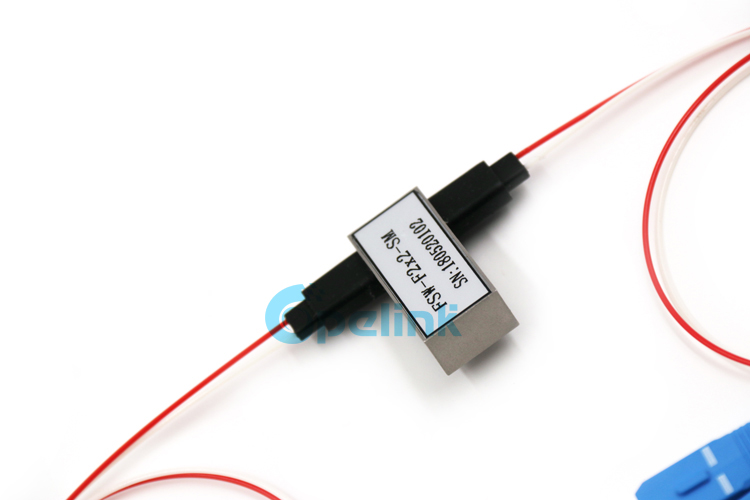

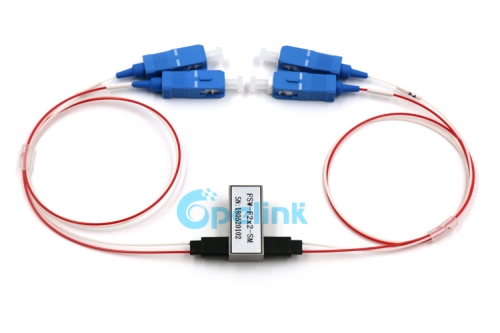

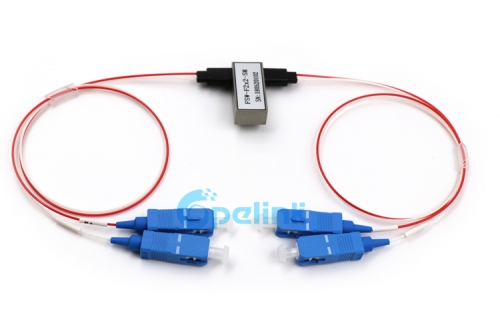

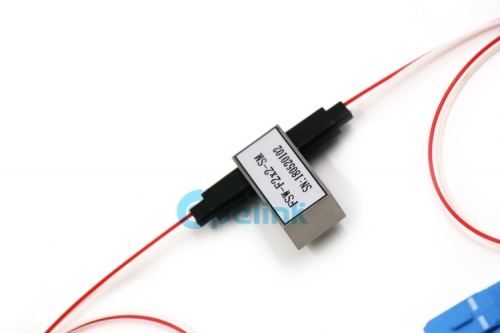

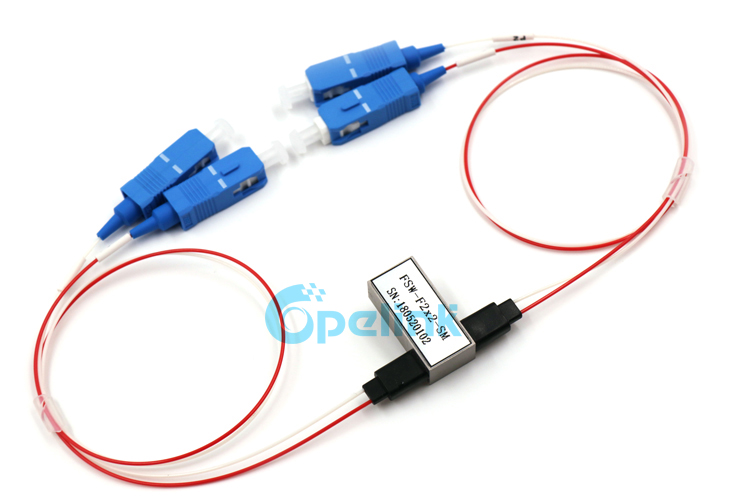

Optical switch is an optical device having one or more optional transmission ports for physically switching or
logically operating an optical signal in an optical transmission line or an integrated optical path.
The switch consists of two ports that selectively transmits, redirects, or blocks optical power in a fiber optic
transmission line. The optical switch must be actuated to select or change between two states.
Furthermore,for the Latching type,it only takes an electrical pulse width with duration >=20msec to change
the state.As a result, it consumes low electric energy to operate the optical switch.
| Parameter | Unit | Multimode | Singlemode |
| Operating Wavelength | nm | 850/1300 | 1280 ~ 1340 / 1520 ~ 1625 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.5 Max:0.8 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | V | 3.0 or 5.0 | |
| Lifetime | Times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20~+70 | |
| Storage Temperature | ℃ | -40~+85 | |
| Type | Pin | Electric Drive | Status sensor | ||||||
| 2×2 | channel | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
| Latching | P1-P4 P2-P3 |
V+ | GND | -- | -- | Open | Close | Close | Open |
| P1-P3 P2-P4 |
-- | -- | GND | V+ | Close | Open | Open | Close | |
| Non-latching | P1-P4 P2-P3 |
V+ | -- | -- | GND | Open | Close | Close | Open |
| P1-P3 P2-P4 |
-- | -- | -- | -- | Close | Open | Open | Close | |
