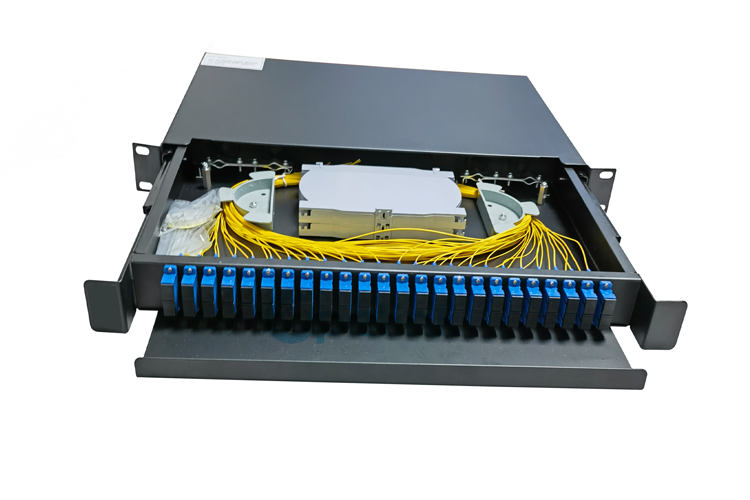

24 Port Optical Distribution Frame Rack Mount ODF

24 Port Optical Distribution Frame Rack Mount ODF

Name: 24 Port Optical Distribution Frame Rack Mount ODF
Brand: OPELINK
SKU: Y-FO-FD-003
Availability: InStock
Rating: 5 (1 reviews)

Item No.: Y-FO-FD-003

This type of ODF is design for large splice tray, excellent armor plate, and has good protection of pigtails. Its box body is made of high quality cold-rolled steel material, and the surface of the product uses smooth electrostatic praying processing.

INQUIRY

Description Parameters Company Profile Related Product

This type of ODF is design for large splice tray, excellent armor plate, and has good protection of pigtails. Its box body is made of high quality cold-rolled steel material, and the surface of the Product uses smooth electrostatic praying processing technology.

This is a standard size 24 port Fiber Optic Distribution Frame made of cold rolled steel

1.Related Product Types:

Rack-mount fixed type
Rack-mount drawer type
Rack mount ODF
indoor wall-mount type
Outdoor waterproof wall-mount type

2. Product Properties:

Suitable for the protective connection between cables and pigtails
Suitable for the connection between optical cables and optical communication device
unique structure, easy installation, for indoor use

3. Product Classification:
Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.

capacity: 12,24,32,48,64,72,96 splices
19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.
Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
Suitable for ribbon and bunchy fiber cable

4. Components:
Cover, inner components, fiber connecting protector Inner components
a.Cover: the cover should be easily opened for easy installation; it should be provided with an outlet device for fiber metal high voltage protective earthing;
b.Inner components as follows:

Bracket: supporting the inner structure.
Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers, with the length being about no less than 1.6m; the curve radius of the coiled spare fiber should be no less than 37.5mm; makes that are easily recognizable should be provided for reconnection of fibers; should have adequate room for convenient operation;
Fixing Device: used for the fixation of fiber protective tubes and the fixation of pigtails.

5. Features and advantages:

Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
The box are Rack Mounted, which is convenient to install and dismantle;
The splice tray could be piled one upon another, flexible to turn;
The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;
The box is of unique structure, reasonable layout, and has adequate room for operation;
Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly;
The indoor type is of excellent seal performance, which could prevent water from entering effectively;

Features:
1. Fiber radius of curvature: ≥30mm
2. Disk remain fiber length: ≥1.6m
3. Fiber maximum capacity: 48cores
4. Suitable temperature range:-40~+60 degree
5. Resistance to pressure: 500N
6. Resistance to impact: 750N

Applications:
Telecommunications subscriber loop
Fiber to the home (FTTH)
Optical acess network (OAN)
Data processing centers
Local area network (LAN)
Cable television (CATV)

Specifications:

Environmental temperature:	-25 - 55°C
Relative humidity:	<85%(when the temperature is below 30°C)
Atmosphere pressure:	70~106Kpa
Insulating resistance:	>2×104 MΩ/500VDC
Voltage-resistance strength:	Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.

1.Related Product Types:

Rack-mount fixed type
Rack-mount drawer type
Rack mount ODF
indoor wall-mount type
Outdoor waterproof wall-mount type

2. Product Properties:

Suitable for the protective connection between cables and pigtails
Suitable for the connection between optical cables and optical communication device
unique structure, easy installation, for indoor use

3. Product Classification:
Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.

capacity: 12,24,32,48,64,72,96 splices
19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.
Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
Suitable for ribbon and bunchy fiber cable

Bracket: supporting the inner structure.
Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers, with the length being about no less than 1.6m; the curve radius of the coiled spare fiber should be no less than 37.5mm; makes that are easily recognizable should be provided for reconnection of fibers; should have adequate room for convenient operation;
Fixing Device: used for the fixation of fiber protective tubes and the fixation of pigtails.

5. Features and advantages:

Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
The box are Rack Mounted, which is convenient to install and dismantle;
The splice tray could be piled one upon another, flexible to turn;
The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;
The box is of unique structure, reasonable layout, and has adequate room for operation;
Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly;
The indoor type is of excellent seal performance, which could prevent water from entering effectively;
