1x4 Mechanical Optical Switch, used to optical fiber sensor multi-point monitoring system fiber optic switch, 0.9mm FC/APC, Singlemode

Item No.: Y-FO-OS-011
1X4 Mechanical Optical Switch target a variety of fiber optic applications, data communications, system monitoring and component testing requirements. This 1×4 Fiber optic switch module has 1 input port, 4 output ports.
INQUIRY
Description Parameters Company Profile Related Product
Description:

1X4 Mechanical Optical Switch target a variety of fiber optic applications, data communications, system monitoring and component testing requirements. This 1×4 Fiber optic switch module has 1 input port, 4 output ports.

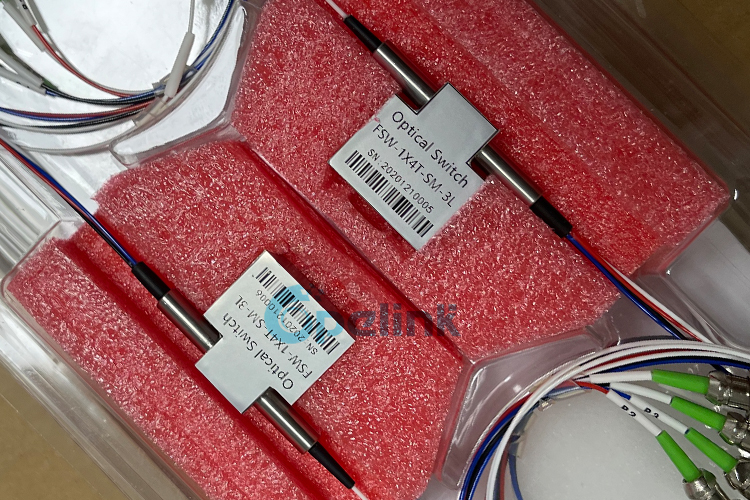

1x4 Mechanical Optical Switch

Features:
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Latching and Non-latching

Applications:
Sub-system Integration
Optical Network Monitoring/Protection
Route Fiber Test System
Re-configurable OADM
Test & Measurement Equipment Manufacturing   Application
Network Test System




Specifications:
Parameters Specifications Unit
Operating Wavelength 1260~1620(SM)850(MM) nm
Insertion Loss ≤0.7 dB
Wavelength Dependent Loss ≤0.25 dB
Polarization Dependent Loss ≤0.05 dB
Temperature Dependent Loss ≤0.25 dB
Return Loss SM≥50  MM≥30 dB
Cross Talk SM≥55  MM≥50 dB
Switch Time ≤8 ms
Repeatability ≤±0.02 dB
Durability ≥107 times
Operating Voltage 3 or 5 V
Switch Type Non-Latching/Latching
Operating Temperature 20~70
Storage Temperature 40~85
Optical Power ≤500 MW
Dimension 23.0L×27.0W×8.2H mm

Optical switch working principle diagram

Pins

Latching Type:
Type Optical
Route
Relay Electric Drive State Sensor
1×4 Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9

Latching
Input- Port 1(Black) Relay1 -- -- GND V Close Open Open Close
Relay2 V GND -- -- Open Close Close Open
Input- Port 2 (red) Relay1 V GND -- -- Open Close Close Open
Relay2 -- -- GND V Close Open Open Close
Input- Port 3(blue) Relay1 -- -- GND V Close Open Open Close
Relay2 -- -- GND V Close Open Open Close
Input- Port 4(White) Relay1 V GND -- -- Open Close Close Open
Relay2 V GND -- -- Open Close Close Open


Non-Latching Type:

Type Optical
Route
Relay Electric Drive State Sensor
1×4 Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9
Non-
Latching
Input- Port 1(Black) Relay1 -- -- -- -- Close Open Open Close
Relay2 V -- -- GND Open Close Close Open
Input- Port 2 (red) Relay1 V -- -- GND Open Close Close
