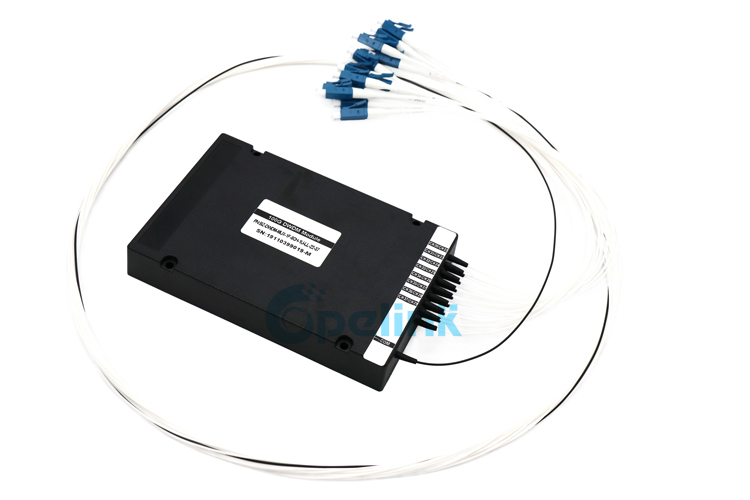

16CH 100G DWDM Mux / Demux Module , Optical DWDM Suppliers

16CH 100G DWDM Mux / Demux Module , Optical DWDM Suppliers

Name: 16CH 100G DWDM Mux / Demux Module , Optical DWDM Suppliers
Brand: OPELINK
SKU: Y-FO-WD-055
Availability: InStock
Rating: 5 (1 reviews)

Item No.: Y-FO-WD-055

16CH 100G DWDM Mux Demux Module, This product has absolute competitive advantage and strength. Considering performance and quality, it is a good choice.

Brand Name: OPELINK

Place of Origin: Guangdong, China

Product name: DWDM Module

Low Price: 590.00 USD

INQUIRY

Description Parameters Company Profile Related Product

Description:

DWDM(Dense Wavelength Division Multiplexing)is a Technology That Puts Data Different Sources Together on an Optical Fiber,
with Each Signal Carried at the Same Time on Its Own Separate Light Wavelength.

We can supply full configuration such as 2CH, 4CH, 8CH, 16CH, A variety of port configurations,wavelength combinations and
special port options can be supported, different package type can be customized.

16CH 100G DWDM Mux / Demux Module, this is a product sold by opelink company

Features:
High Isolation
Compact Design
High Reliability and Stability
Low insertion loss, low PDL
Good channel-to-channel uniformity

Application:
DWDM Network
Wavelength Routing
Channel Add/Drop
CATV Fiber Optical System

Order Information:

Type	Channel Passband	Upgrade Port	Port	First Channel	Pigtail	Fiber	Length	Connector （Input-Output）	Package
M=Mux D=Demux M+D=Mux+ Demux	1=100GHz 2=200GHz	U= Yes 0= No	1002=1X2 1004=1X4 1008=1X8 1016=1X16 XX=other	C21 C22 C23 (Refer to ITU Channel Table)	L=900um loose tube 2=2.0mm 3=3.0mm B= baare fiber A= Adaptor	S1=G652D S2=G657A1 X= other	0.5M=0.5M 1M=1M X=other	SU=SC/UPC SA=SC/APC FU=FC/UPC FA=FC/APC ST=ST/UPC LA=LC/APC LU=LC/UPC 00=NONE XX= Other	01,02,03, 04,05 H,L,U,G,X

Packing Information:

1CH	2/4CH	8CH	16/18/40/48CH
05	01/L/G/U	02/L/G/U	03/L/H/G/U
04

Package Dimension:

No.	Dimension	No.	Dimension
05	Φ5.5×L38 Stainless steel tube	02	120× 80× 18 Plastic box
04	90 X 20 X 9.5 Plastic box	L	150 × 115 × 18 Aluminum box
01	100 × 80 × 10 Plastic box	W	150X65X16
H	150 × 115 × 18 Plastic box	Y	127X70X11
B	Φ5.0×L38 Stainless steel tube	U	19’’x＝1,2,3,4 U rack mount
G	LGX box : 1G, 2G, 3G, 4G	X	Customized package
03	141× 115 × 18 Plastic box

Optical Specifications:

Parameter			Value
Channels Number			2	4	8	16	32	40
Central Wavelength（nm）			ITU-T Grid
Channel Spacing（GHZ）			100/200
Bandwidth（nm）			ITU-T ±0.11/ ITU-T ±0.25
I.L（dB）		Typ.	1.2	1.6	2.2	3.2	3.8	5.2
		MAX.	1.4	1.8	2.8	5.0	5.6	6.0
Ripple（dB）			≤0.5
PDL（dB）			≤0.10	≤0.15	≤0.20	≤0.25	≤0.30	≤0.30
Isolation（dB）	Adjacent Channel		≥25
	Non-adjacent Channel		≥45
Directivity（dB）			≥50
R.L（dB）			≥45
Operating Temperature（℃）			-5~+75
Storage Temperature（℃）			-40~85
Note: All the data above does not include connectors
