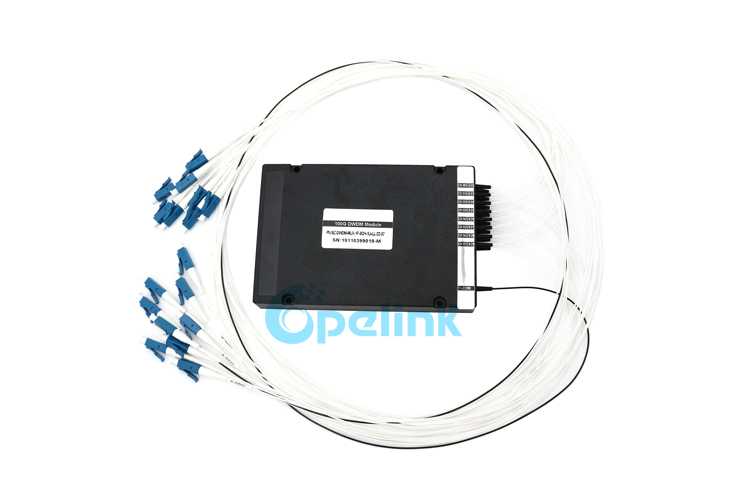

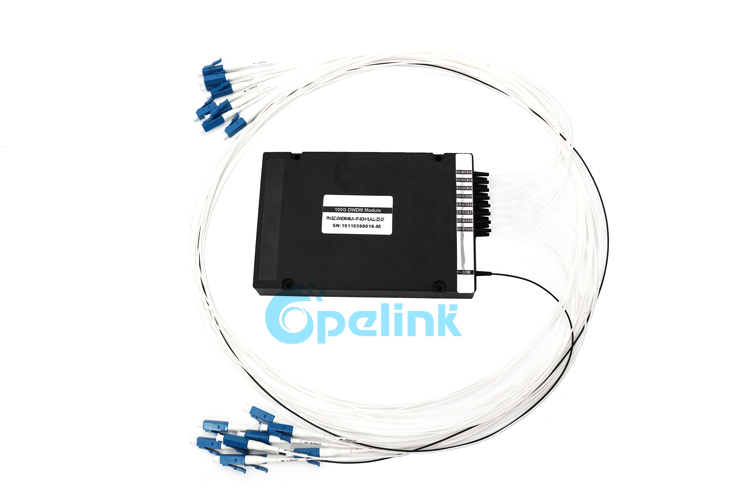

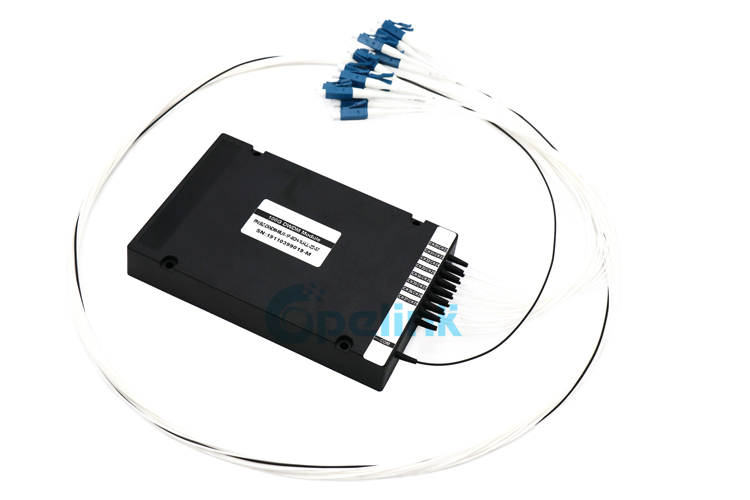

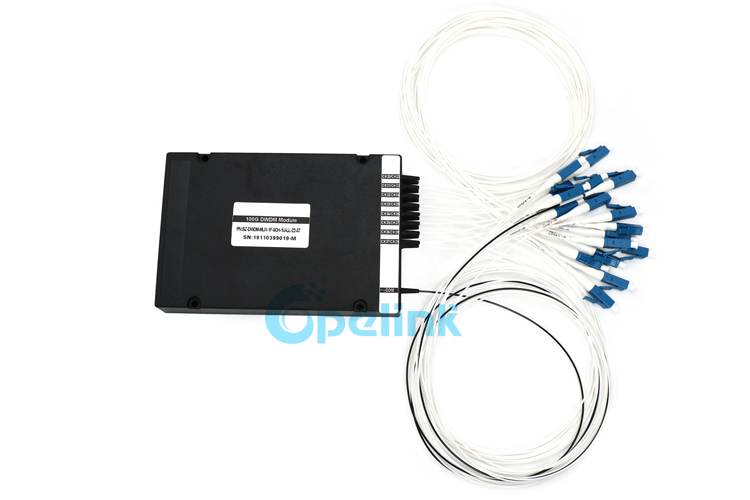

16+1CH 100G DWDM Mux / Demux Module , 0.9mm LC/PC ABS BOX Optical DWDM Module

Item No.: Y-FO-WD-004
Opelink is a leading DWDM Module supplier with standardized and large-scale production, high reliability and stability and economical and win the love of customers.
  • Brand Name: OPELINK
  • Place of Origin: Guangdong, China
  • Product name: DWDM Module
  • Low Price: 590.00 USD
  • Description Parameters Company Profile Related Product
    Description:

              DWDM(Dense Wavelength Division Multiplexing)is a Technology That Puts Data Different Sources Together on an Optical Fiber,
    with Each Signal Carried at the Same Time on Its Own Separate Light Wavelength.

             We can supply full  configuration such as 2CH, 4CH, 8CH, 16CH, A variety of port configurations,wavelength combinations and
    special port options can be supported, different package type can be customized.

    16CH 100G DWDM Mux / Demux Module, LC/PC ABS BOX packaging

    Features:
    High  Isolation
    Compact  Design
    High Reliability and Stability
    Low insertion loss, low PDL

    Good channel-to-channel uniformity

    Application:
    DWDM Network
    Wavelength Routing
    Channel Add/Drop
    CATV Fiber Optical System


    Order Information:
    Type Channel Passband Upgrade Port Port First
    Channel
    Pigtail Fiber Length Connector
    (Input-Output)
    Package
    M=Mux
    D=Demux
    M+D=Mux+ Demux

    1=100GHz
    2=200GHz

    U= Yes
    0= No
    1002=1X2   1004=1X4
    1008=1X8
    1016=1X16
    XX=other
    C21
    C22
    C23
    (Refer to ITU Channel Table)
    L=900um loose  tube
    2=2.0mm
    3=3.0mm
    B= baare fiber
    A= Adaptor
    S1=G652D
    S2=G657A1
    X= other
    0.5M=0.5M
    1M=1M
    X=other
    SU=SC/UPC
    SA=SC/APC
    FU=FC/UPC
     FA=FC/APC
    ST=ST/UPC
    LA=LC/APC
    LU=LC/UPC
     00=NONE
    XX= Other
    01,02,03,
    04,05

    H,L,U,G,X

     Packing Information:
    1CH 2/4CH 8CH 16/18/40/48CH
    05        01/L/G/U 02/L/G/U 03/L/H/G/U
    04

     Package Dimension:
    No. Dimension No. Dimension
    05 Φ5.5×L38 Stainless steel tube 02 120× 80× 18 Plastic box
    04 90 X 20 X 9.5 Plastic box L 150 × 115 × 18 Aluminum box
    01 100 × 80 × 10  Plastic box W 150X65X16
    H 150 × 115 × 18 Plastic box Y 127X70X11
    B Φ5.0×L38 Stainless steel tube U 19’’x=1,2,3,4 U rack mount
    G LGX box : 1G, 2G, 3G, 4G X Customized package
    03 141× 115 × 18 Plastic box


    Optical Specifications:
    Parameter Value
    Channels Number 2 4 8 16 32 40
    Central Wavelength(nm) ITU-T Grid
    Channel Spacing(GHZ 100/200
    Bandwidth(nm) ITU-T ±0.11/ ITU-T ±0.25
    I.L(dB) Typ. 1.2 1.6 2.2 3.2 3.8 5.2
    MAX. 1.4 1.8 2.8 5.0 5.6 6.0
    Ripple(dB) ≤0.5
    PDL(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30 ≤0.30
    Isolation(dB) Adjacent Channel ≥25
    Non-adjacent Channel ≥45
    Directivity(dB) ≥50
    R.L(dB) ≥45
    Operating Temperature(℃) -5~+75

    Storage Temperature(℃)
    -40~85
    Note: All the data above does not include connectors
