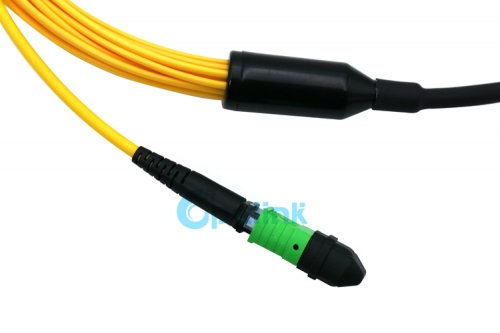

12 Fibers MPO Fanout Cable, MPO Female to 12 LC/APC Breakout Cable, Singlemode, LSZH yellow

Item No.: Y-FO-FP-043
MPO Fanout Cable As called MPO Breakout Cable, Opelink offers all kinds of high-quality and cost-effective MPO Fiber Cables, welcome to inquire.
Description Parameters Company Profile Related Product
Description:
The MPO Breakout cable is an economical solution for a smaller network environment in which you don't need complicated equipment, because the MPO cable allows redistribution of various fibers into one round cable for short distance transmission, it offers 8, 12, 24 and up to 144 fibers for these applications.
MPO Breakout cable cables are your best choice for high density fiber networks. It's specifically designed for fast ethernet, fiber channel, data center and gigabit ethernet applications. The hybrid MPO fiber cables can be mass terminated in combinations of 24~144 fibers ribbon/bunch cables, and the connector includs SC, FC, LC and ST, the cable polish UPC and APC. These high-density MPO patch cords offer significant space savings, while also simplifying network installations.
MPO fanout cable is designed to high density multifibers solutions,fit for different installation environment and easy to install between the trunk line,data centers and buildings, and reduce cable management troubles.

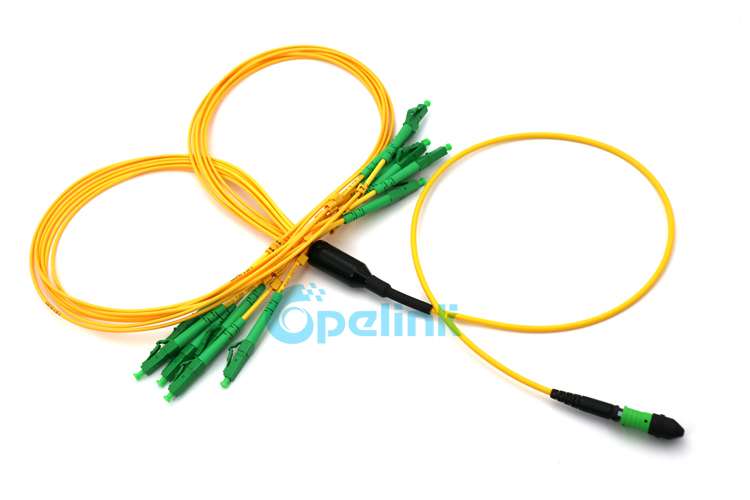

12 Fibers MPO-LC/APC  Fanout Cable, yellow color
Product Details:
Connector A MPO Connector B LC/APC
Wavelength 1310/1550nm Fiber Mode OS2 9/125μm
Polish Type APC to APC Fiber Count 8 Fibers
Insertion Loss A ≤0.35dB Insertion Loss B ≤0.35dB
Return Loss B ≥60dB Return Loss B ≥60dB
Cable Jacket LSZH/PVC Cable Diameter 3.0mm
Installation Tensile Load 66N Fan-Out Diameter 2.0mm
Operating Temperature -20°C to +75°C Storage Temperature -40 to 75°C


MPO Cable Product advantages introduction:
.Our adopt industry's leading high-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
.The industry leading device of 3D interferometer provides verification of MTP/MPO polishing process, the interferometer making all parameters of hte polished MT ferrule complies and exceeds industry standards.
.After the 3D interference detection, the flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.


Features:
.Good durability
.Good exchangeability
.High temperature stability
.Complies with IEC-61754-7 and EIA/TIA-604-5


Application:
.High density wiring system.
.40G and 100G system, QSFP module.
.Data communication network
.Optical system access network
.Storage area network fiber channel
.Wiring in communication base station and distribution case.


Ordering information:
Type Fiber Core Cable Type Cable OD Cable Material Cable
Color
Connector
(A End –B End)
Patchcord
Length
PT=Patchcord
PY=Pigtail
S1=G652D
S2= G657A1
M1=50/125
M2=62.5/125
M3=OM3
M4=OM4
S7=G657A1
S8=G657B3
XX=other
01=simplex
02=Duplex
03=Armoured
04=Distribution
05=Ribbon
06=breakout
07=drop cable
XX=other
L=0.9mm
2=2.0mm
3=3.0mm
XX=other


1=PVC
2=LSZH


01=Blue  02=Orange
03=Green  04=Brown
05=Slate  06=White
07=Red  08=Black
09=Yellow  10=Violet
11=Rose  12=Aqua
13=12Color  XX=other
SU=SC/UPC   SA=SC/APC
FU=FC/UPC    FA=FC/APC
LU=LC/UPC    LA=LC/APC
ST=ST/UPC
MPO=MPO/PC  MPA=MPO/APC
00=NONE
XX=Other


0.5M=0.5M
10M=10M
XXX=other




Optical Specifications(MPO):
Parameter Singlemode Patchcord Multimode Patchcord
Polishing  Type PC APC PC
Insertion loss(dB)  Max. <=0.7dB <=0.7dB <=0.7dB
Typical <=0.35dB <=0.35dB <=0.35dB
Return loss(dB) >=50dB >=60dB ≥20dB
Operating temperature -20ºC~75ºC
Storage Temperature -40ºC~75ºC
500 mating cycles loss I.L changed≤0.2dB
Durability >1000 cycles
Optical Specifications:(Except mpo)
Parameter Singlemode Patchcord/Pigtail Multimode Patchcord/Pigtail
Polishing  Type PC UPC APC PC
Insertion loss(dB) <=0.3dB,MTRJ<=0.5dB <=0.3dB <=0.3dB <=0.3dB,MTRJ<=0.5dB
Return loss(dB) >=45dB,MTRJ>=35dB >=55dB >=65dB
Operating temperature -20ºC~75ºC
Storage Temperature -40ºC~75ºC
100 mating cycles loss I.L changed≤0.1dB
Durability >1000 cycles
Geometric Specification:(Except mpo)
Parameter PC  Polishing APC Polishing
SC Type LC Type
R.O.C 10~25mm 7~25mm 5~12mm
Apex Offset <50um <50um <50um
Fiber Height -125nm-50nm   -100nm-100nm
Polishing Angle     8°± 0.3°
