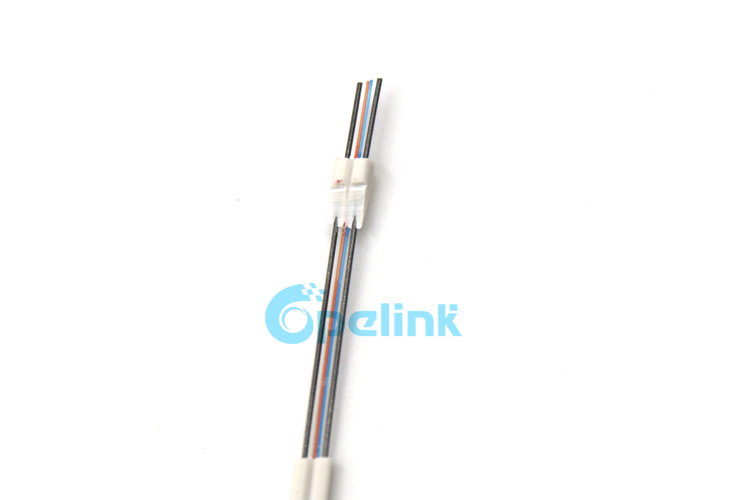

1-4cores G657A1 G657A2 GJXFH FTTH Fiber Cable, Bow-Type Stranded Steel Type Singlemode Drop Fiber Optic Cable GJXH

1-4cores G657A1 G657A2 GJXFH FTTH Fiber Cable, Bow-Type Stranded Steel Type Singlemode Drop Fiber Optic Cable GJXH

Name: 1-4cores G657A1 G657A2 GJXFH FTTH Fiber Cable, Bow-Type Stranded Steel Type Singlemode Drop Fiber Optic Cable GJXH
Brand: OPELINK
SKU: Y-FO-FC-039
Availability: InStock
Rating: 5 (1 reviews)

Item No.: Y-FO-FC-039

GJXFH FTTH Fiber Cable is called Drop Fiber optic Cable, It suitable to FTTH, FTTO, FTTB network. Excellent quality and service make our products loved by customers.

INQUIRY

Description Parameters Company Profile Related product

Description:
FTTH Fiber Cable for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the
section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB) ,and other optical fiber access network
users to introduce the section of the optical cable.The drop FTTH cables are with flame retardant jacket and with supporting wire, there
are strengthen members inside the cables for supporting the whole cables, the whole cable meet the RoHS standards and contains no
harmful components, in general,it is a highly recommended FTTH drop cables for use in the fiber to the home projects.

1-4cores G657A1 G657A2 GJXFH FTTH Fiber Cable

Features：
Adopt fiber with small bending radius (G.657),
offering good bending resistance;
Adopt all-dry structure and fiber with small bending radius,
offering good bending resistance;
Easy cable stripping without need of tools, easy cable fixation
and low cost of installation.

Application：
As FTTH cable,for indoor horizontal and vertical cabling;
Indoor cabling under carpet and along corner.
Outdoor cable suitable as cable extending from outdoor (as aerial cable)to indoor；

Specification：

Outer diameter(mm)		3.1x1.9（2）	4.0x2.0（4）
Nominal Weight(kg/km)		9.0	11
Crush Resistance (N/100mm)Long/Short term		300 1000	300 1000
Tensile Strength(N) Long/Short term		200 600	200 600
Min.Bending Radius(mm)	Dynamic	20H
	static	10H
Temperature Range		-20℃-70℃

Note:For more details, please contact our sales
