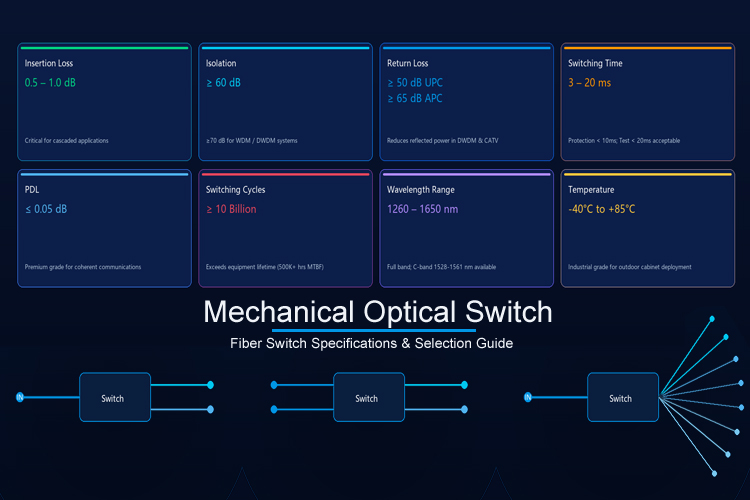

Mechanical Optical Switch: 1x2/2x2 Fiber Switch Specifications & Selection Guide
Introduction
This article comprehensively introduces the working principle of mechanical optical switches (using electromagnets, stepper motors, or voice coil motors to drive optical fibers, prisms, or mirrors to achieve physical switching of optical paths), key performance indicators (insertion loss, isolation, return loss, switching time, etc.), standard configurations (1 × 2, 2 × 2, 1 × N), and their applications in fiber protection, FBG sensing, automated testing, and other fields.
What Is a Mechanical Optical Switch?
A mechanical optical switch redirects an optical beam by physically moving an optical element (fiber, prism, or mirror) using a solenoid, stepper motor, or voice coil actuator. This movement takes 5–15 ms and is completely non-reciprocal: the optical path can be controlled with high precision while maintaining excellent isolation.Mechanical switches are the workhorse of fiber optic switching. They account for 45% of the optical switch market by unit volume (Frost & Sullivan, 2023) because they offer the best combination of performance, reliability, and cost. A properly specified mechanical switch will outlast the equipment it is installed in.
How Mechanical Optical Switches Work
There are three common actuator mechanisms:1. Solenoid-actuated: A magnetic plunger moves the optical element when current is applied to the coil. Fastest response (3–8 ms), most common for 1×2 protection switches. Typical power consumption: 1–3 W during switching, 0 W at steady state (latching type).
2. Stepper motor-actuated: Precise angular positioning of a mirror or prism for multi-port switches (1×4 to 1×16). Switching time: 8–20 ms. Higher positioning accuracy, suitable for stable, high-cycle applications.
3. Voice coil-actuated: Smooth, continuous positioning for high-port-count switches. Used in 1×N (N > 16) matrix switches. Slower but allows flexible port configurations.
Key Specifications Explained
Insertion Loss (IL): 0.5–1.0 dB for 1×2; 0.8–1.5 dB for 1×N. Measured at 1550 nm, 25°C. Lower is better. For cascaded applications, specify <0.8 dB.Isolation: ≥60 dB (typical 65 dB). This is the ratio of power in the OFF state vs. ON state. Higher isolation prevents signal leakage between paths. For WDM applications, specify ≥70 dB.
Return Loss (RL): ≥50 dB (UPC), ≥65 dB (APC). Critical for DWDM and CATV applications where reflected power degrades system performance.
Switching Time: 3–20 ms depending on actuator type. Protection switches: <10 ms. Test automation: <20 ms is acceptable.
Polarization-Dependent Loss (PDL): ≤0.05 dB for premium switches, ≤0.1 dB standard. Critical for coherent communications and DWDM.
Wavelength Range: Standard: 1260–1650 nm (full band). C-band only: 1528–1561 nm. Specify matching your application.
Switching Cycles: ≥10 billion operations (mechanical). This far exceeds the operational lifetime of most equipment.
Operating Temperature: -40°C to +85°C (industrial grade). Extended: -20°C to +70°C (commercial). Verify for outdoor installations.
Drive Voltage/Current: 5 VDC / 12 VDC / 24 VDC depending on model. Latching types consume power only during switching; non-latching types require continuous power.
Standard Configurations
1×2 Bypass Switch: One input, two outputs (Path A / Path B). Used for fiber protection: automatic switch to backup fiber when primary fails. The most common optical switch configuration.2×2 Switch Matrix: Two inputs, two outputs. Enables both protection and traffic re-routing. Used in add-drop nodes and network test access couplers.
1×4 / 1×8 Switch Matrix: One input, N outputs. Used for test automation: one OTDR or power meter tests N fibers sequentially.
1×16 / 1×32 / 1×64: High-port-count matrices for large-scale fiber test systems. Typical in OSP (Outside Plant) fiber monitoring and FTTH network management.
Applications
Fiber Protection Systems: The 1×2 mechanical switch is the standard component for fiber protection units (FPU). When the optical power monitor detects a fiber cut (power drop >3 dB), the switch flips to the backup fiber in <10 ms. Compliant with ITU-T G.8131. Used in telecom backbone, submarine, and enterprise networks.FBG Fiber Optic Sensor Interrogation: A 1×N mechanical switch sequentially addresses multiple FBG sensors on a single fiber. The switch connects each FBG sensor in turn to the broadband source and the interrogator. Typical configuration: 1×8 or 1×16 for structural health monitoring of bridges, dams, and pipelines.
Automated Optical Testing (AOT): 1×64 or 1×128 switch matrices enable a single OTDR to test hundreds of fiber spans automatically. Reduces OTDR equipment cost by 80% in large FTTH networks. Typical insertion loss budget: 1.5–3.0 dB for a 1×64 switch, which fits within OTDR dead zone requirements.
EDFAs and Raman Amplifiers: 1×2 switches divert the optical signal to a bypass path during amplifier maintenance, enabling zero-downtime maintenance (ZDM). Used in undersea optical amplifier stations where downtime is extremely costly.
Optical Time Domain Reflectometry (OTDR) Testing: 1×4 to 1×16 switches enable multi-fiber OTDR testing. The OTDR connects to each fiber in sequence, identifying faults, macrobend losses, and connector degradation across the entire fiber plant.
Selection Criteria for Telecom Equipment Manufacturers
When specifying mechanical optical switches for OEM/ODM telecom equipment, consider:- MTBF ≥ 10 billion cycles at full operating temperature range
- Insertion loss ≤ 0.8 dB (for cascaded applications)
- Isolation ≥ 60 dB (≥70 dB for DWDM)
- Latching drive (zero power consumption at steady state)
- Operating temperature: –40°C to +85°C for outdoor cabinet installations
- IEC 60749-compliant vibration and shock resistance
- RoHS and REACH compliant for EU market
- Individual test report with IL, RL, PDL, and switching time
Conclusion
Mechanical optical switches, with excellent comprehensive performance of ≥ 10 billion switching cycles, low insertion loss (0.5-1.0 dB), and high isolation (≥ 60 dB), are the most cost-effective and reliable switching solutions in fiber optic communication systems. When selecting, attention should be paid to insertion loss, isolation, self-locking drive mode, and industrial grade operating temperature range.Frequently Asked Questions
Q1: What is the lifespan of a mechanical optical switch?
A quality mechanical optical switch is rated for ≥10 billion switching cycles. At 100 switches per day, this translates to 274,000 years of operation — effectively the lifetime of the equipment. MTBF (Mean Time Between Failures) is typically 500,000+ hours (57+ years). The limiting factor is usually the actuator, not the optical performance.Q2: What is the difference between latching and non-latching mechanical switches?
Non-latching switches return to a default position when power is removed (safe-fail to Path A). Latching switches maintain their last position without power. Latching switches consume zero power at steady state (critical for remote outdoor installations), but non-latching switches provide deterministic fail-safe behavior. Most fiber protection systems use non-latching switches for predictable safety behavior.Q3: How do I calculate the power budget for a fiber protection system with a 1x2 switch?
Power budget = Total loss allowed. For a GPON Class B+ link (28 dB budget): switch IL (0.8 dB) + connector losses (2×0.3 = 0.6 dB) + fiber attenuation (20 km × 0.22 dB/km = 4.4 dB) + splice losses (10 × 0.05 = 0.5 dB) = 6.3 dB total. Remaining budget (21.7 dB) accommodates splitter loss and margin. Always specify the switch IL at your exact operating wavelength and temperature.Related Guides
