Introduction to Fiber Optic PLC Splitter and Optical Communication
Fiber optic technology has revolutionized the world of telecommunications and data transmission. It offers high-speed and reliable communication over long distances, making it the preferred choice for various industries. One of the key components in fiber optic systems is the PLC (Planar Lightwave Circuit) splitter. In this article, we will explore the concept of fiber optic PLC splitters and their role in optical communication.
What is a Fiber Optic PLC Splitter?
A fiber optic PLC splitter is a passive optical device that splits a single optical signal into multiple signals. It is commonly used in fiber optic networks to distribute optical signals to different destinations. The splitter is designed to divide the light power from the input fiber into multiple output fibers, allowing multiple devices or users to share the same optical signal.
How Does a Fiber Optic PLC Splitter Work?
A fiber optic PLC splitter utilizes the principle of lightwave interference to split the optical signal. It consists of a carefully designed waveguide circuit on a small chip made of silica glass or other materials. The input optical signal is coupled into the chip, where it is split into multiple output signals based on the splitting ratio of the splitter.
The splitting ratio determines the proportion of light power that is allocated to each output fiber. Common splitting ratios include 1x2, 1x4, 1x8, 1x16, and 1x32, indicating the number of output fibers. For example, a 1x4 splitter will split the input signal into four equal parts, each delivered through a separate output fiber.
Types of Fiber Optic PLC Splitters
Fiber optic PLC splitters come in various types, each suitable for different applications and splitting ratios. Here are some common types of fiber optic PLC splitters:

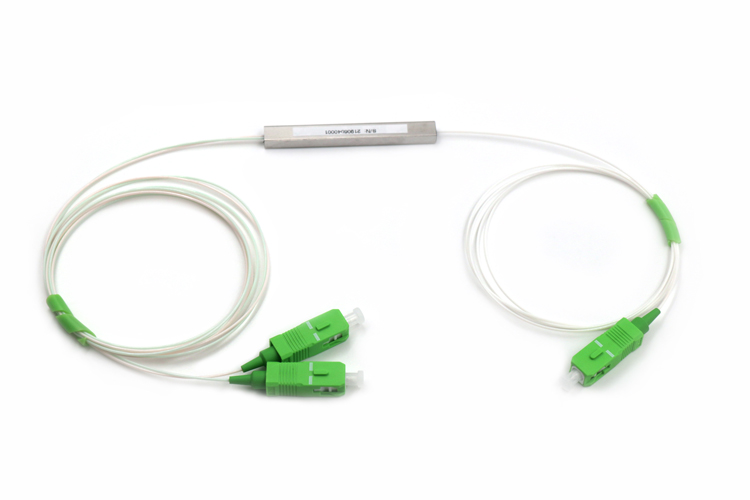

1x2 Fiber Optic PLC Splitter
A 1x2 fiber optic PLC splitter has one input fiber and two output fibers. It splits the input signal into two equal parts, making it suitable for simple point-to-point connections.

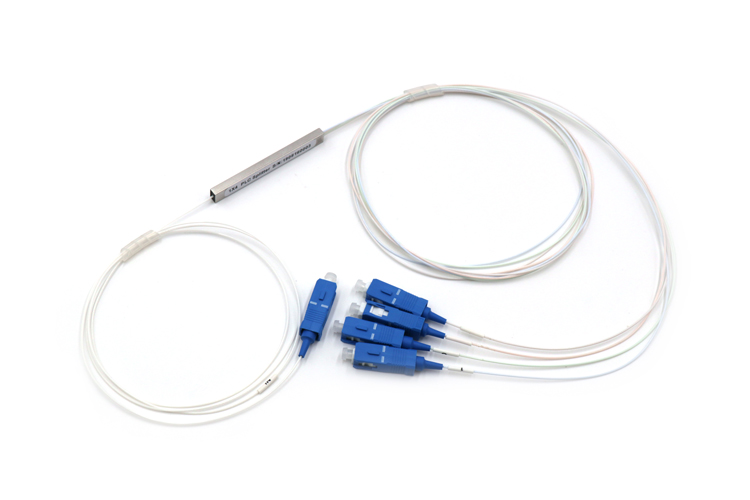

1x4 Fiber Optic PLC Splitter
A 1x4 fiber optic PLC splitter has one input fiber and four output fibers. It splits the input signal into four equal parts, allowing for multiple connections or branching in the network.

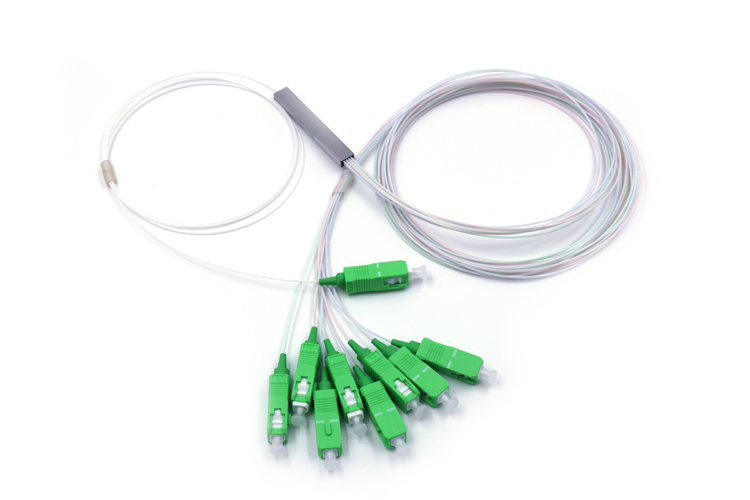

1x8 Fiber Optic PLC Splitter
A 1x8 fiber optic PLC splitter has one input fiber and eight output fibers. It splits the input signal into eight equal parts, providing greater distribution capabilities in the network.

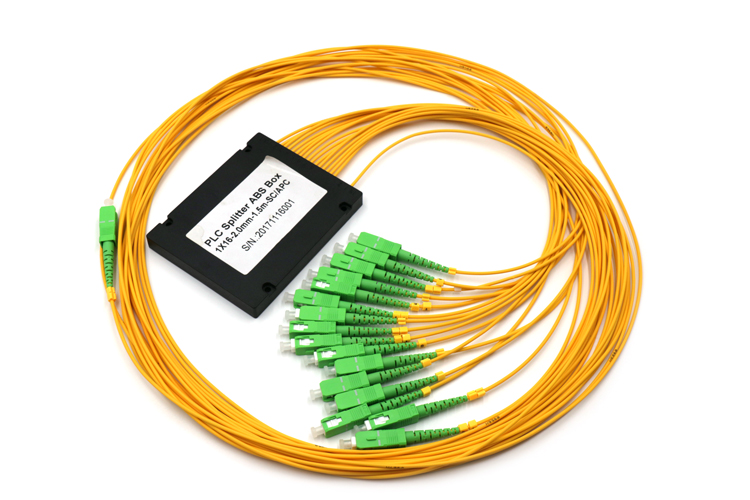

1x16 Fiber Optic PLC Splitter
A 1x16 fiber optic PLC splitter has one input fiber and sixteen output fibers. It splits the input signal into sixteen equal parts, making it suitable for larger-scale distribution and connectivity.

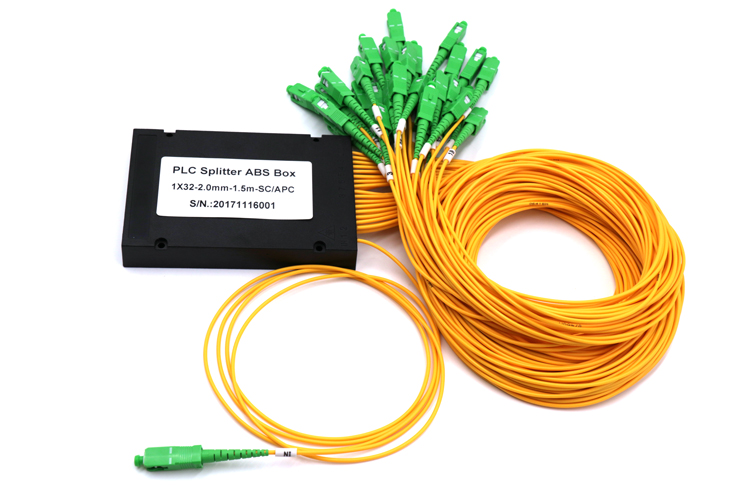

1x32 Fiber Optic PLC Splitter
A 1x32 fiber optic PLC splitter has one input fiber and thirty-two output fibers. It splits the input signal into thirty-two equal parts, allowing for extensive distribution and connectivity in complex networks.
Benefits of Using Fiber Optic PLC Splitters
The use of fiber optic PLC splitters offers several benefits in optical communication systems. Some of the key advantages include:
1.Cost-effective: Fiber optic PLC splitters are cost-effective solutions as they allow multiple devices or users to share the same optical signal, eliminating the need for individual transmitters and receivers.
2.Space-saving: PLC splitters are compact in size and can be integrated into various optical devices, saving valuable space in network installations.
3.Low insertion loss: PLC splitters have low insertion loss, minimizing the power loss in the optical signal distribution process.
4.Wide operating wavelength range: Fiber optic PLC splitters support a wide operating wavelength range, making them compatible with different types of optical fibers and transmission systems.
5.High reliability: PLC splitters are passive devices with no moving parts, resulting in high reliability and long-term performance stability.
Applications of Fiber Optic PLC Splitters
Fiber optic PLC splitters find applications in various industries and network setups. Some common applications include:
1.FTTH (Fiber-to-the-Home): PLC splitters are used in FTTH networks to distribute optical signals to multiple households or users from a central office.
2.PON (Passive Optical Network): PLC splitters play a crucial role in PON systems by splitting the optical signal into multiple fibers to serve multiple subscribers.
3.Telecommunication Networks: Fiber optic PLC splitters are used in telecommunication networks to split and distribute optical signals to different destinations, such as offices, data centers, or cell towers.
4.CATV (Cable TV) Distribution: PLC splitters are used in CATV distribution systems to split the optical signals for multiple TV channels to be delivered to subscribers.
5.Data Centers: Fiber optic PLC splitters are deployed in data centers to distribute optical signals to different racks and servers, ensuring efficient and reliable data transmission.
Introduction to Optical Communication
Optical communication is a method of transmitting information using light signals through optical fibers. It has become the backbone of modern communication systems due to its high bandwidth, low signal loss, and immunity to electromagnetic interference. An optical communication system consists of several key components that work together to transmit and receive optical signals.
Components of an Optical Communication System
An optical communication system comprises the following components:
Optical Transmitter
An optical transmitter converts electrical signals into optical signals that can be transmitted through optical fibers. It typically consists of a laser diode or LED (Light Emitting Diode) that emits light at specific wavelengths.
Optical Receiver
An optical receiver detects the incoming optical signals and converts them back into electrical signals for further processing. It usually consists of a photodiode or photodetector that converts light energy into electrical current.
Optical Fiber
Optical fibers are the medium through which the optical signals travel. They are thin, flexible, and made of highly transparent materials, such as glass or plastic. Optical fibers can transmit light signals over long distances with minimal signal loss.
Optical Amplifiers
Optical amplifiers are used to boost the optical signal strength to compensate for signal loss during transmission. They amplify the optical signals without converting them into electrical signals.
Optical Switches
Optical switches are used to control the routing of optical signals. They can selectively direct the optical signals to different fibers or paths, allowing for flexible and efficient signal routing.
Optical Attenuators
Optical attenuators are used to reduce the power level of optical signals. They are used to match the signal power to the receiver's sensitivity or to balance the power levels in a network.
How Does Optical Communication Work?
In optical communication, the optical transmitter converts electrical signals into optical signals, which are then transmitted through the optical fiber. The optical signals travel through the fiber by undergoing total internal reflection, bouncing off the inner walls of the fiber due to the difference in refractive indices between the core and the cladding.
At the receiving end, the optical receiver detects the incoming optical signals and converts them back into electrical signals. The electrical signals can then be processed, decoded, and used to retrieve the original information.
Advantages of Optical Communication
Optical communication offers several advantages over traditional copper-based communication systems. Some of the key advantages include:
1.High Bandwidth: Optical fibers have a much higher bandwidth compared to copper wires, allowing for the transmission of large amounts of data at high speeds.
2.Low Signal Loss: Optical fibers have minimal signal loss over long distances, ensuring reliable and high-quality data transmission.
3.Immunity to Electromagnetic Interference: Unlike copper wires, optical fibers are immune to electromagnetic interference, making them ideal for use in environments with high electrical noise.
4.Secure Data Transmission: Optical signals are difficult to tap or intercept, providing a higher level of security compared to electrical signals.
5.Long Transmission Distances: Optical fibers can transmit signals over long distances without the need for signal repeaters, reducing the complexity and cost of network installations.
Challenges in Optical Communication
While optical communication offers numerous advantages, it also faces several challenges. Some of the key challenges include:
1.Fiber Attenuation: Optical signals can experience attenuation or loss of signal strength due to various factors, such as fiber impurities or bending losses.
2.Dispersion: Dispersion occurs when different wavelengths of light travel at different speeds through the fiber, causing distortion and reducing signal quality.
3.Fiber Splicing and Connectors: Proper splicing and connectorization of optical fibers are critical for maintaining signal integrity and minimizing losses.
4.Cost: The initial cost of deploying optical communication systems can be higher compared to traditional copper-based systems. However, the long-term benefits outweigh the initial investment.
Future Trends in Fiber Optic PLC Splitters and Optical Communication
The field of fiber optic PLC splitters and optical communication is continuously evolving, driven by advancements in technology and increasing demand for high-speed data transmission. Some future trends in this field include:
1.Increased Splitting Ratios: Fiber optic PLC splitters with higher splitting ratios, such as 1x64 or 1x128, will enable even greater distribution capabilities in large-scale networks.
2.Wavelength Division Multiplexing (WDM): WDM technology allows multiple optical signals of different wavelengths to be transmitted simultaneously through a single fiber, maximizing the utilization of the fiber's bandwidth.
3.Higher Data Rates: Advancements in optical transmission technology will lead to higher data rates, enabling faster and more efficient communication networks.
4.Integration of PLC Splitters: PLC splitters will be further integrated into optical devices and systems, reducing overall system complexity and cost.
5.Advancements in Fiber Optic Technology: Ongoing research and development in fiber optic technology will lead to improvements in fiber quality, signal amplification, and transmission distances.
Conclusion
Fiber optic PLC splitters play a crucial role in optical communication systems by splitting optical signals and distributing them to different destinations. They offer cost-effective and space-saving solutions for sharing optical signals among multiple devices or users. Optical communication, on the other hand, enables high-speed and reliable data transmission over long distances. It offers numerous advantages over traditional copper-based systems, including high bandwidth, low signal loss, and immunity to electromagnetic interference. Despite the challenges it faces, optical communication continues to evolve, driven by technological advancements and increasing demand for faster and more efficient communication networks.
FAQs
Q1.What is the purpose of a fiber optic PLC splitter?
A fiber optic PLC splitter is used to split a single optical signal into multiple signals, allowing for the distribution of the signal to different destinations or devices.
Q2.What are the different types of fiber optic PLC splitters?
Common types of fiber optic PLC splitters include 1x2, 1x4, 1x8, 1x16, and 1x32 splitters, which split the input signal into different numbers of output fibers.
Q3.What are the benefits of using fiber optic PLC splitters?
Fiber optic PLC splitters are cost-effective, space-saving, and have low insertion loss. They support a wide operating wavelength range and offer high reliability in optical signal distribution.
Q4.What are some common applications of fiber optic PLC splitters?
Fiber optic PLC splitters are used in FTTH networks, PON systems, telecommunication networks, CATV distribution, and data centers for optical signal distribution and connectivity.
Q5.What are the advantages of optical communication over traditional copper-based systems?
Optical communication offers high bandwidth, low signal loss, immunity to electromagnetic interference, secure data transmission, and long transmission distances compared to copper-based systems.
