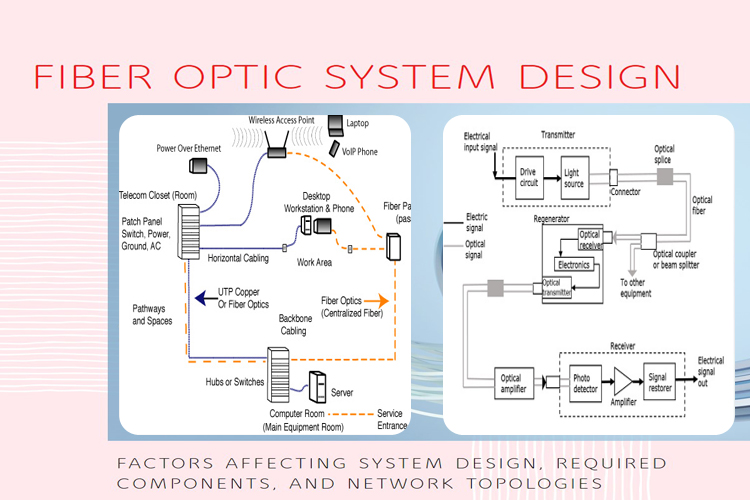

Fiber Optic System Design: Factors Affecting System Design, Required Components, and Network Topolog

Fiber Optic System Design: Factors Affecting System Design, Required Components, and Network Topologies

Fiber optic systems are widely employed in the telecommunications industry because they provide high-speed data transmission with low signal loss. In designing a fiber optic system, several factors must be considered to ensure its efficiency and reliability. This article will explore the three main aspects of fiber optic system design: factors affecting system design, components required for a complete fiber optic network, and the topologies of fiber optic networks.

1.Factors Affecting System Design
Several factors must be considered while designing a fiber optic system to ensure that it meets the requirements of the intended application. These factors include:

Transmission Distance
The transmission distance is the distance between the transmitter and receiver of the optical signal. The transmission distance determines the type of fiber optic cable required based on the attenuation of the signal. Single-mode fiber optic cables are used for long-distance transmission, whereas multimode fiber optic cables are used for shorter distances.

Bandwidth
Bandwidth is the measure of data that can be transmitted through a fiber optic cable in a given time. A higher bandwidth is required for applications that require high-speed data transmission.

Signal Loss
Signal loss is the amount of light lost as it travels through the fiber optic cable. The signal loss should be kept to a minimum to ensure the efficient transmission of data.

Interference
Interference can occur when other signals are present in the fiber optic cable, causing signal degradation. The design of the fiber optic system should minimize the effects of interference.

Cost
The cost of implementing a fiber optic system is an important factor to consider. The cost of the components, installation, and maintenance should be balanced against the benefits of the system.


2.Components Required for a Complete Fiber Optic Network
A complete fiber optic network comprises several components that work together to ensure the efficient transmission of data. The components required for a complete fiber optic network include:

Transmitter
The transmitter is responsible for converting an electrical signal into an optical signal that can be transmitted through the fiber optic cable.

Fiber Optic Cable
The fiber optic cable is the medium through which the optical signal is transmitted. The type of fiber optic cable used depends on the transmission distance and bandwidth requirements.

Receiver
The receiver is responsible for converting the optical signal back into an electrical signal that can be processed by the end device.

Fiber Optic Connectors
Fiber Optic Connectors are used to connect the fiber optic cable to the transmitter and receiver. There are several types of connectors available, including SC, LC, and ST.

Repeaters
Repeaters are used to boost the signal strength and extend the transmission distance in long-distance fiber optic systems.

Switches
Switches are used to connect multiple fiber optic cables and devices in a network, allowing for efficient data transmission between devices.

3.Topologies of Fiber Optic Networks

The topology of a fiber optic network defines the way in which the components are connected to each other. The three main topologies of fiber optic networks are:

Point-to-Point Topology
In a point-to-point topology, a single fiber optic cable connects two devices, such as a computer and a server. This topology is simple and easy to implement but is not scalable.

Star Topology
In a star topology, all devices in the network are connected to a central switch using fiber optic cables. This topology is scalable and allows for efficient data transmission between devices.

Ring Topology
In a ring topology, the fiber optic cables form a closed loop, with each device connected to the cable. This topology is highly reliable and can support large networks.

In conclusion, designing a fiber optic system requires a thorough understanding of the factors that affect its efficiency and reliability, the components necessary for a complete fiber optic network, and the different topologies of fiber optic networks. By considering these factors, organizations can design and implement efficient and reliable fiber optic systems that meet their specific requirements.

FAQs
Q1. What is the transmission distance required for single-mode fiber optic cables?
Single-mode fiber optic cables are used for long-distance transmission.

Q2. What is the measure of data that can be transmitted through a fiber optic cable in a given time?
Bandwidth is the measure of data that can be transmitted through a fiber optic cable in a given time.

Q3. What is the role of the transmitter in a fiber optic system?

The transmitter is responsible for converting an electrical signal into an optical signal that can be transmitted through the fiber optic cable.

Q4. What type of connector is used to connect the fiber optic cable to the transmitter and receiver?
There are several types of connectors available, including SC, LC, and ST.

Q5. What is the topology of a fiber optic network that forms a closed loop?
A ring topology forms a closed loop, with each device connected to the cable.

Key Words´╝ÜFiber optic system, Transmission distance, Bandwidth, Signal loss, Interference
Cost, Transmitter, Fiber optic cable, Receiver, Connectors, Repeaters, Switches, Point-to-Point Topology, Star Topology, Ring Topology
