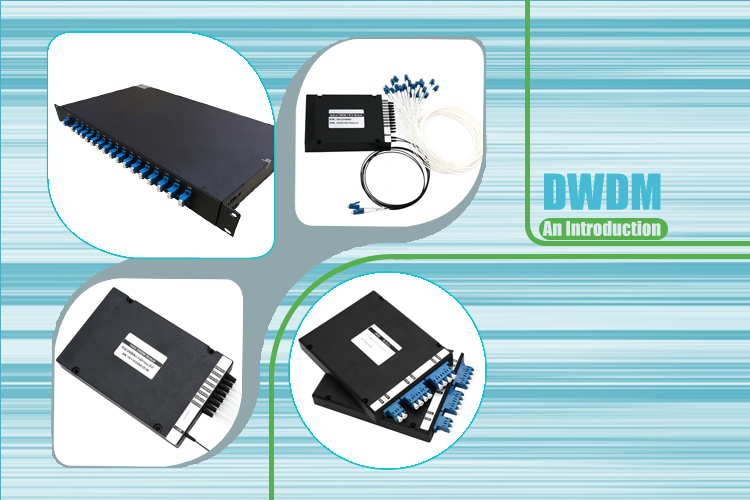

An Introduction to Optical Dense Wavelength Division Multiplexing(DWDM)
Optical Dense Wavelength Division Multiplexing, or DWDM, is a technology that has revolutionized high-capacity fiber optic communications. DWDM allows the transmission of multiple separate wavelengths over a single optical fiber, enabling a massive increase in bandwidth. Each wavelength operates as its own channel, carrying its own data stream separate from the others. By using DWDM, a single fiber can carry up to 160 individual wavelengths, multiplying its capacity many times over.
How DWDM Works
To understand DWDM, we first need to understand some basics about fiber optic transmission. Fiber optic cables transmit data using pulses of light generated by lasers. The lasers emit light within a specific range of wavelengths measured in nanometers (nm). For fiber optics, wavelengths in the infrared spectrum from 1270 nm to 1650 nm are commonly used. Within this range, there are specific wavelengths that experience lower signal loss over long distances. These wavelengths are known as the C-band (1530 to 1565 nm) and L-band (1570 to 1610 nm).
DWDM works by combining and transmitting multiple laser signals at once, with each signal using a slightly different wavelength. The signals are combined into a single optical fiber using a multiplexer. At the receiving end, a demultiplexer is used to separate the individual wavelengths and send them to detectors that convert the light signals back into electronic signals.
The key to DWDM is that each wavelength is transmitted at a different frequency, so they do not interfere with each other. By spacing the wavelengths at a dense enough frequency spacing, typically 0.8 nm, separate data streams on each wavelength can be transmitted over the same fiber without crosstalk. The tighter spacing enables many more wavelengths to be combined, increasing the total bandwidth.
Bandwidth and Channel Definitions
The bandwidth available for signal transmission depends on several factors, including the frequency range used, channel spacing, and protocols used to encode the data on each channel. Typical DWDM systems have a frequency range of 1270 nm to 1610 nm and a channel spacing of 0.8 nm. Within this range, the C-band from 1530 to 1565 nm and L-band from 1570 to 1610 nm are the most commonly used since they have lower signal loss.
Using a channel spacing of 0.8 nm across the C-band and L-band provides up to 160 channels with a total bandwidth of more than 40 terabits per second (Tbps) over a single fiber. DWDM channel plans are standardized by the ITU (International Telecommunication Union) as grids defining the specific center frequency of each channel. Common grids include the 100 GHz grid with 0.8 nm spacing for metro networks and 50 GHz grid with 0.4 nm spacing for long-haul networks.
Dense wavelength division multiplexing offers a cost-effective solution for multiplying the capacity of fiber optic networks. By transmitting separate signals over multiple wavelengths through a single optical fiber, DWDM provides a massive increase in bandwidth to meet the growing demands for fast, high-capacity global communication networks. With continued improvements in technologies like tunable lasers and reconfigurable optical add-drop multiplexers (ROADMs), DWDM will continue to advance to power tomorrow’s fiber optic infrastructure.
FAQs
Q1.What is optical DWDM?
DWDM stands for Dense Wavelength Division Multiplexing. It is a technology that allows multiple optical signals of different wavelengths to be combined into a single optical fiber. By using different wavelengths, DWDM can massively increase the transmission capacity of fiber networks.
Q2.How does DWDM work?
DWDM works by combining multiple laser light sources of different wavelengths into a single fiber optic cable. At the transmitting end, a multiplexer combines the different wavelength signals into one fiber. At the receiving end, a demultiplexer separates the different wavelengths and detects the signals individually. By spacing the wavelengths closely together, DWDM can combine up to 160 signals on a single fiber.
Q3.What is channel spacing and how does it relate to bandwidth?
Channel spacing refers to the frequency difference between DWDM channels. Typical spacings are 0.8 nm or 0.4 nm. Closer channel spacing means more channels can be combined, increasing the total bandwidth. A 0.8 nm channel plan provides up to 40 Tbps of bandwidth over a single fiber.
Q4.What are the ITU grids?
The ITU (International Telecommunication Union) has standardized DWDM channel plans, known as ITU grids. The grids define the precise center frequency of each DWDM channel. The most common grids are the 100 GHz grid with 0.8 nm spacing and 50 GHz grid with 0.4 nm spacing. These grids allow DWDM equipment from different vendors to operate on the same network.
Q5.What new technologies are enabling further advances in DWDM?
Continued progress in tunable lasers, reconfigurable optical add-drop multiplexers (ROADMs), and new modulation techniques like quadrature amplitude modulation (QAM) are enabling more advanced DWDM networks. Tunable lasers allow new channels to be added without replacing existing lasers. ROADMs make DWDM networks more flexible and reconfigurable. Higher order QAM modulation formats increase the data capacity of each DWDM channel. These technologies will continue to drive more powerful DWDM networks.
