Fiber optic patch cord: Let you know more about it
Fiber optic patch cord: Let you know more about itFiber Optic patch cord, this series of products, has become a universal product in optical fiber communication engineering and has been widely used since its development. Due to the different language habits of users in different regions, the names of fiber optic patch cord is different, such as: fiber optic patch cable, fiber optic patch lead, fiber optic patch cord, fiber optic jumper, and so on.
Fiber Optic patch cord products are currently in strong demand, but the competition is fierce. As a member of fiber optic patch cord supplier, OPELINK actively participates in market competition. We give top priority to the quality of our products and provide customers with high-quality services. At the same time, we let customers feel that fiber optic patch cord china is a good product with high cost performance, and also let customers realize that the quality of fiber optic patch cord manufacturer china is first-class. Is trustworthy.
What is Fiber Optic patch cord?

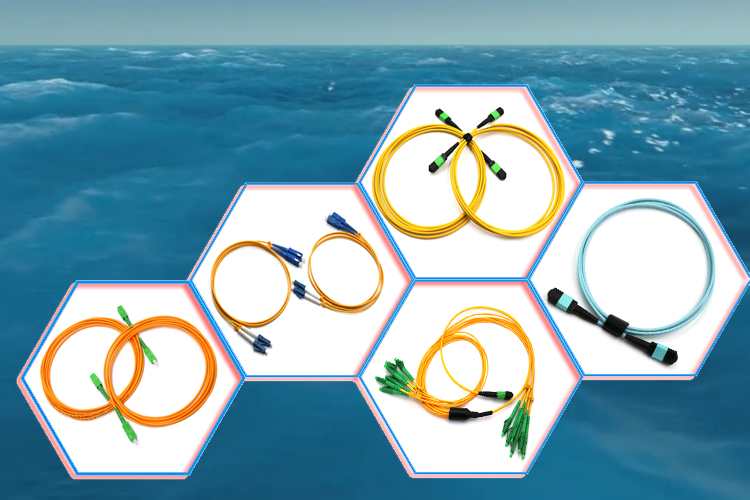

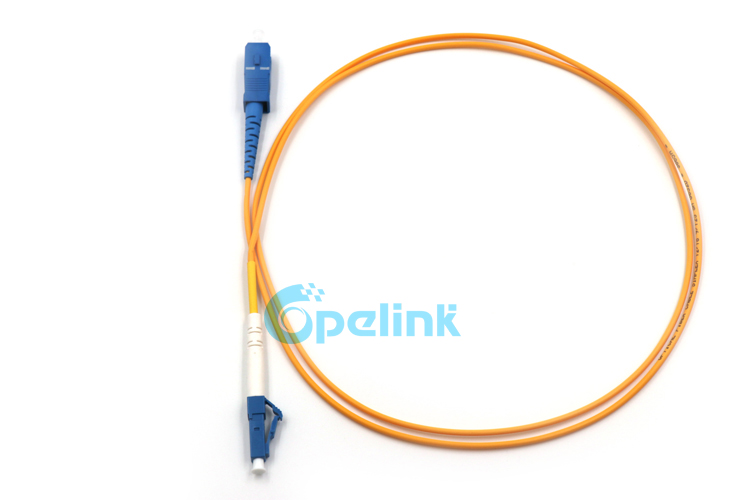

The so-called Fiber Optic patch cord is to assemble the fiber optic connector at both ends of a section of optical fiber or optical fiber cable through the inherent Fiber Optic patch cord manufacturer process. At present, the commonly used fiber optic connectors include SC type, LC type, St type, FC type, MPO type, etc. For example, after we assemble SC connector and LC connector on both ends of a 2m long indoor optical cable, what do we call it? It is usually like this: SC to LC Fiber Optic patch cord After this introduction, you should have a preliminary understanding of Fiber Optic patch cord.
You may ask, what is the process of fiber optic patch cord manufacturer?
Let's introduce the process of fiber optic patch cord manufacturer.
Step 1: cut the optical fiber cable to the required length.
Step 2: insert the components of fiber optic connector at both ends of the optical cable in turn.
Step 3: remove the outer part of the optical fiber with special scissors for stripping the optical fiber to expose the 125um bare optical fiber.
Step 4: cure ferrule with special fiber optic epoxy glue. First inject the adhesive into ferrule,and then put it into the curing furnace for curing.
Step 5: ferrule degumming and grinding. Fiber optic lapping film is required here. After 5 grinding processes, the grinding process is 30um, 9um, 3um, 1um and 0.02um.Among them, the important machinery and equipment is also used, that is, the Fiber Optic Polishing Machine.
Step 6: Test the end face of Ferrule after grinding to see if the end face is damaged or dirty. The test equipment required for this process is the Fiber Optic End Face Inspection Microscope.
Step 7: Assemble the components of the fiber optic connector into a complete connector.
Step 8: Test the optical characteristics of the processed fiber optic patch cord products to ensure that the products meet the quality requirements. The key equipment required for this process is the Optical Tester. The last step is packaging and shipping.
The above introduction is the process of fiber optic patch cord manufacturer.

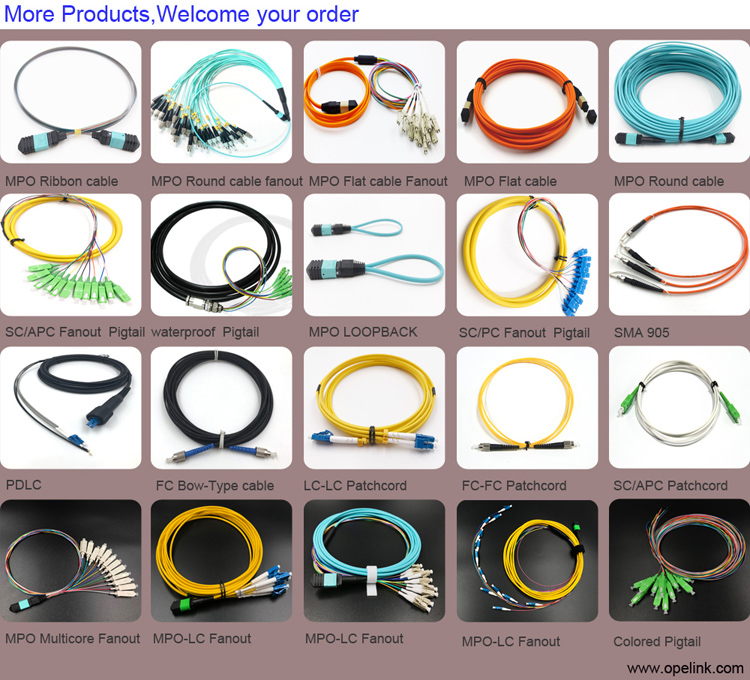

What are the types of Fiber optic patch cords?
The classification of Fiber optic patch cord is determined by the type of fiber optic cable. There are two main types of fiber: single-mode fiber and multi-mode fiber. After a single type of optical fiber is cabled, it can be subdivided into many types according to the usage scenario, such as single-mode indoor optical cable, single-core optical cable, dual-core optical cable, multi-core optical cable and so on. Commonly used single-core optical cables: 0.9mm, 2.0mm, 3.0mm and other sizes; common double-core optical cables: 1.6x3.2mm, 2.0x4.2mm, 2.9x6.0mm, special and customized types;
Commonly used multi-core optical cables: multi-core distribution structure, multi-core breakout structure, multi-core Ribbon structure. With these multi-core products, we call it distribution Fiber optic patch cord, breakout Fiber optic patch cord, MPO Fiber optic patch cord; there is another type of product, which is waterproof Fiber optic patch cord. In addition to the above, I will not list them one by one. If there is a demand in the market, there will be the participation of Fiber optic patch cord manufacturer china.
What are the main parameters of Fiber optic patch cord?
1. Physical characteristics: Insertion loss(dB); Return loss(dB); Operating temperature; Storage Temperature; 100 mating cycles loss; Durability;
2. Geometric characteristics: R.O.C; Apex Offset; Fiber Height; Polishing Angle
What are the application areas of Fiber optic patch cord?
A brief introduction to the application areas of different types of Fiber optic patch cords is given.
1. Application fields of MPO Fiber optic patch cord:
High density wiring system; 40G and 100G system, QSFP module; Data communication network; Wiring in communication base station and distribution case.
2. Application fields of waterproof Fiber optic patch cord:
FTTA,FTTH; BBU,RRU,RRH; Indoor Horizontal and Vertical Wiring; wireless base station (BS); Used in connecting communication equipment.
3. Common Fiber optic patch cord application fields:
Test Equipment; CCTV networks; Access Wiring; Optical Access Network; Fiber optic data transmission; Local Area Network (LAN); Optical Distribution Fram; Telecommunications networks; Optical Fiber Communication Systems.
OPELINK is a professional fiber optic patch cord manufacturer, and at the same time, we are also a reliable fiber optic patch cord supplier. Our products are sold all over the world, and we win customers with high quality and cost-effective products and excellent service.
Recommended Reading：Fiber optic Cable and Connector Standards
