By goodvin | 02 April 2026 | 0 Comments

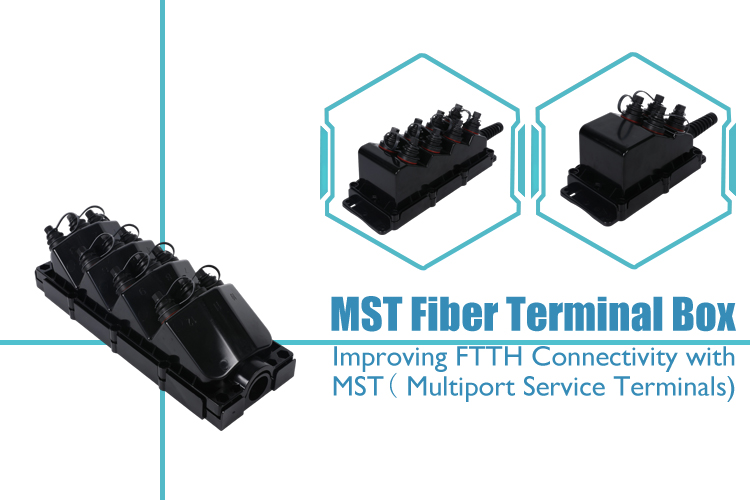

MST Fiber Terminal Box: Improving FTTH Connectivity with Multiport Service Terminals
In the fast-evolving world of fiber-to-the-home (FTTH) networks, reliable connectivity is key to delivering high-speed internet to homes and businesses. The MST Fiber Terminal Box, a robust multiport service terminal enclosure, stands out as an essential hub for seamless fiber optic connections. Designed to bridge feeder cables with drop lines, this pre-connectorized terminal ensures minimal signal loss and maximum durability, making it ideal for outdoor deployments in challenging environments. Whether you're an installer, network operator, or telecom provider, understanding the features and benefits of the MST Fiber Terminal Box can optimize your infrastructure.
Key Features of the MST Fiber Terminal Box
The MST Fiber Terminal Box is engineered for plug-and-play installation, simplifying deployment in FTTH applications. Here's what makes it a top choice:
.Pre-Connectorized Design: With up to 48 fibers in the input port using SC-APC assemblies made from G.657.A1 bend-insensitive fiber, it achieves a low 0.2 dB loss for exceptional signal transmission. Factory-terminated OS2 LC connectors ensure 0.15 dB insertion loss per connector, compliant with GR-326 standards
.Multiple Port Configurations: Offering 4, 8, 12, or 16 output ports, each supporting single-mode G.652.D fibers with SC/UPC hardened connectors. It includes versatile options like 2×8 splitter setups and 2 mid-span access ports for added flexibility . High-capacity models support 24-fiber configurations via 12 duplex SC/APC ports and two 1×12 PLC splitters with 0.3 dB insertion loss
.PLC Splitter Integration: Built-in planar lightwave circuit (PLC) splitters in ratios such as 1:4, 1:8, 1:16, or 1:32 divide signals efficiently, with polarization dependent loss as low as 0.2 dB. This supports operational wavelengths from 1260 nm to 1650 nm, covering PON standards at 1310 nm, 1490 nm, and 1550 nm
.Plug-and-Play and Tool-Less Installation: Features 4 OptiTap-compatible ports and a tool-less gel-sealed closure for quick field setup, saving time on maintenance. The removable internal splice tray holds up to 24 fibers or 12 splices, with 36 inches of slack storage for drop cables.
These features make the MST Fiber Terminal Box perfect for aerial, wall, or pole mounting, supporting up to 500 pounds tensile load and distances up to 2000 meters while maintaining signal integrity

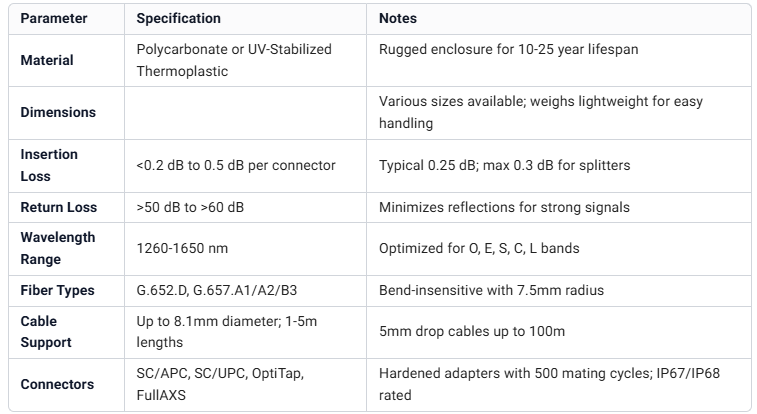

Technical Specifications for Optimal Performance
For network engineers seeking precision, the MST Fiber Terminal Box delivers impressive specs tailored for single-mode fiber optics:
Durability and Comprehensive Testing
Deployed outdoors, the MST Fiber Terminal Box withstands harsh conditions thanks to its polycarbonate construction and mechanical seals. It's UV-stabilized for a 10-year minimum lifespan and supports aerial loads up to 500 pounds
Quality assurance is rigorous:
.IEC 61300 Compliance: Endures 500 mating cycles with <0.2 dB loss, 200 N cable retention, and temperature cycling from -40°C to +75°C
.Telcordia GR-326 Tested: Passes optical performance tests under extreme thermal conditions, managing up to 4 fibers reliably
.Salt Spray and Environmental Tests: Withstands 96 hours of 5% NaCl exposure per ASTM B117 and thermal cycling per IEC 61300-2-22, ideal for coastal or variable climates
These tests confirm the box's resilience, reducing downtime and maintenance costs in real-world FTTH networks
Why Choose MST Fiber Terminal Box for Your Network?
.The MST Fiber Terminal Box combines innovation, reliability, and ease of use to future-proof your FTTH infrastructure. With its compact design, low-loss performance, and proven durability, it's a smart investment for scalable connectivity.
.Elevate your network—deploy the MST Fiber Terminal Box and experience superior fiber optic performance.
Keywords: Fiber MST Box, FTTH terminal, multiport service enclosure, PLC splitter, pre-connectorized fiber optic box, IP68 fiber terminal
