The Basics of Fiber Optic Transmission
The Basics of Fiber Optic Transmission
Fiber optic transmission is a method of data communication that uses optical fibers to transmit information. These fibers are made of glass or plastic and are designed to transmit light signals over long distances. In this article, we will cover the basics of fiber optic transmission, including the concept of total internal reflection, signal transmission, single mode and multimode fibers, and graded index and step index fibers.

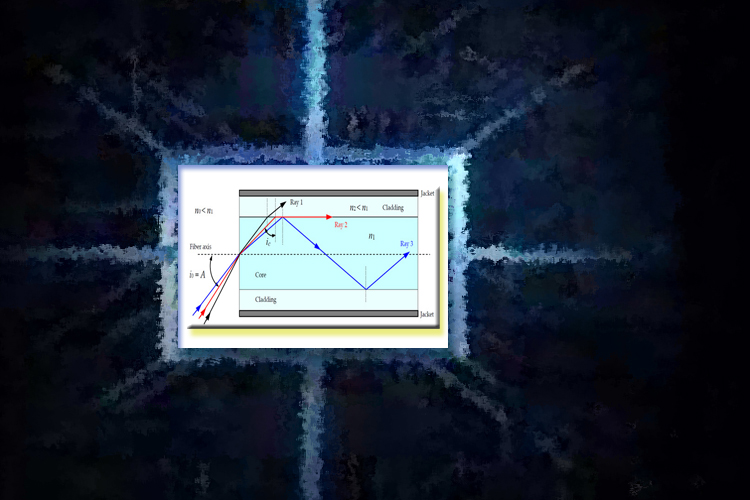

Total Internal Reflection Concept
The concept of total internal reflection is the basis of fiber optic transmission. When light travels through a medium, it can be refracted, or bent, at the boundary between two media. The amount of refraction depends on the angle of incidence and the refractive indices of the two media. When the angle of incidence is greater than the critical angle, the light is reflected back into the same medium. This is known as total internal reflection.
In fiber optic transmission, this phenomenon is used to guide light through the fiber. The fiber is designed with a core made of a material with a higher refractive index than the cladding, which surrounds the core. When light enters the core at an angle greater than the critical angle, it is reflected back into the core and continues to propagate down the fiber.
Signal Transmission in Fiber Optic
Signals are transmitted through fiber optic cables using light. The light source can be either a light-emitting diode (LED) or a laser. The light is transmitted down the fiber by bouncing off the walls of the core due to total internal reflection. The signal is encoded onto the light using a process called modulation. The light can be modulated by varying its intensity or frequency to represent the data being transmitted.
At the receiving end, the light is detected by a photodiode, which converts the light signal back into an electrical signal. The electrical signal is then decoded to retrieve the original data.
Single Mode and Multimode Fibers
Fiber optic cables come in two types: single mode and multimode. Single mode fibers have a smaller core diameter and only allow one mode of light to travel down the fiber. This allows for higher bandwidth and longer distances, but the fibers are more expensive. Multimode fibers have a larger core diameter and allow multiple modes of light to travel down the fiber. This makes them less expensive, but they have lower bandwidth and shorter distances.
Graded Index and Step Index Fibers
Fiber optic cables can also be classified based on the refractive index profile of the core. Graded index fibers have a core with a varying refractive index that decreases towards the edges of the core. This allows for better control of the dispersion of the light signal and allows for higher bandwidth over longer distances. Step index fibers have a core with a uniform refractive index and are simpler to manufacture, but have lower bandwidth and shorter distances.
In conclusion, fiber optic transmission is a reliable and efficient method of data communication. Understanding the basics of total internal reflection, signal transmission, single mode and multimode fibers, and graded index and step index fibers is essential for working with fiber optic cables.
