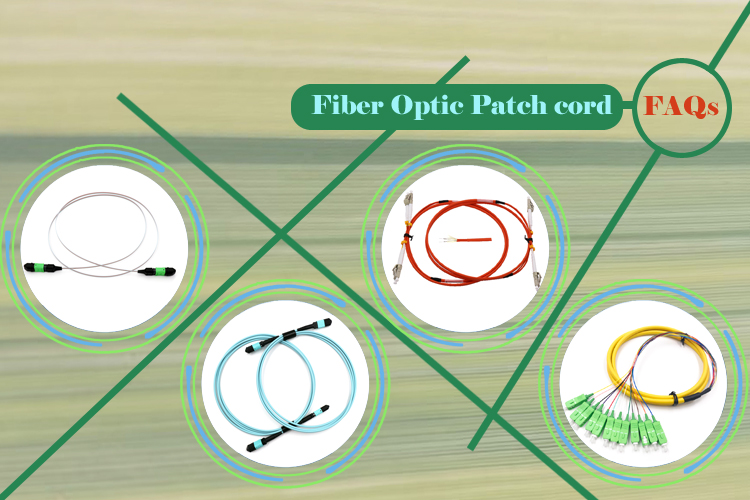

Fiber Optic patch cord FAQs

Fiber Optic patch cord FAQs

In today's rapidly advancing technological landscape, the demand for faster and more efficient communication systems has never been greater. The fiber optic patch cord, a vital component in the transmission of data through fiber optic cables, has emerged as a key player in enabling high-speed and reliable communication networks.

1. what is the Fiber Optic patch cord?
A fiber optic patch cord is a short cable used to connect two fiber optic devices or components. It typically consists of connectorized fiber optic cables with two fiber optic connectors attached to each end. Some key points about fiber optic patch cords:

• They are made of optical fiber cables with durable buffers and coatings for flexibility and protection. The fiber type can be multimode, singlemode or hybrid. Common types are OM2, OM3, OS1, OS2, etc.

• Patch cords are terminated with fiber optic connectors at each end to allow connection between two mating connectors. Popular connector types are LC, SC, ST, FC, MTP, etc. The connectors must be properly matched between the patch cord ends and devices.

• They are used to connect and temporarily join two fiber optic devices like switches, transceivers, transmitters, receivers, routers, patch panels, etc. Patch cords enable fast and easy reconfiguration of fiber connections in optical circuits.

• Available lengths typically range from 1 meter up to 10 meters. Longer speciality patch cords can also be purchased for certain applications. Shorter patch cords around 1-2m are common for equipment connectivity.

• Duplex (2 fiber) and multi-fiber (4, 6, 12 fiber) patch cords are available for applications requiring multiple fiber connectivity. Duplex cords are more mainstream.

• Key attributes include low attenuation, low reflection, minimum bending loss, tensile strength, crush resistance, temperature rating, etc. depending on the exact fiber and cable construction. These ensure minimal signal loss and ensure reliable performance.

• Patch cords come in a range of performance and price points based on fiber type, cable construction, connectors used, and quality. Higher performance cables will have lower loss, higher durability and broader temperature range but at a higher cost.

• Industry standards help ensure interoperability between various equipment and components. But proper testing is still needed to validate low loss before deploying in live optical circuits.



2. What are some common applications for fiber optic patch cords?
Fiber optic patch cords have a wide range of applications in optical networks and systems. Some of the most common ones are:

• Connecting optical transceivers to patch panels or equipment ports. Patch cords are used to link transceivers inside routers, switches, wavelength division multiplexers, etc. to the patch panels where fibers are terminated and patched together. This simplifies reconfiguration of connections.

• Temporarily extending or rerouting optical fibers. Patch cords provide quick connectors to easily extend, move or reroute optical fibers between two termination points. This is useful for testing, troubleshooting or reconfiguration of fiber optic linkies.

• Pigtailing optical devices. Patch cords with the appropriate fiber type and connectors are often used to "pigtail" or directly connect optical components like lasers, detectors, modulators, etc. The patch cord links the device to other optical circuit elements.

• Patching optical demux/mux modules. Patch cords facilitate quick and easy reconfiguration of add/drop ports in optical add-drop multiplexers (OADMs) and wavelength selective switches (WSS). Channels can be dropped or passed through at different points.

• Providing slack or extra cable length. When extra cable length is needed at a interconnection point, patch cords give the required slack while still using connectors. This is important for applications where equipment may move or require specialized mounting.

• Connecting reel cartridges or cases. Optical fiber reels are often stored in cases or cartridges that must be connected together during unwinding and use. Patch cords with appropriate connectors link the reels/cartridges together.

• Cascading multiple optical devices. By linking output ports to input ports using patch cords, optical devices like switches, routers, couplers, splitters, etc can be cascaded to create more complex configurations and functionality.

• Multi-fiber and trunk cable connectivity. For applications requiring parallel transmission over multiple fibers, patch cords with high fiber count connectors (MTP, MXC, etc.) and cable are used to link multi-fiber trunk cables with high port count equipment.

• Fiber re-arrangement within a cable. Sometimes optical fibers need to be rearranged or cross-connected within a multi-fiber cable. Patch cords provide the means to physically rearrange fibers and create different connections between cable ends.


3. How do I know which type of fiber optic patch cord to use for my application?
To select the right type of fiber optic patch cord for your application, you need to consider the following factors:
a.Connector Type: Fiber optic patch cords are available with different types of connectors, such as LC, SC, ST, and MTP/MPO. You need to choose a connector that is compatible with your equipment or network.
b.Fiber Type: Fiber optic patch cords can have different types of fibers, such as single-mode (SM) or multimode (MM), and different core diameters. The choice of fiber type depends on the distance and bandwidth requirements of your application.
c.Cable Length: The length of the patch cord should be sufficient to connect your equipment or devices without excessive slack.
d.Environmental Factors: You may need to consider environmental factors, such as temperature range, humidity, and exposure to chemicals or water when choosing a patch cord.
e.Application: You need to consider the specific application for which you are using the patch cord. For example, if you are using the patch cord for high-speed data transmission, you may need to choose a cable with low attenuation and dispersion.
To choose the right type of fiber optic patch cord for your application, you need to consider the connector type, fiber type, cable length, environmental factors, and application-specific requirements.


4. What are the applications of fiber optical patch core in high-capacity data centers?
Fiber optic patch cords are a crucial component in high-capacity data centers, where they are used to interconnect various active and passive network equipment such as switches, routers, servers, storage devices, and optical transceivers. The applications of fiber optic patch cords in high-capacity data centers are many, and some of the prominent ones are discussed below:

a.High-Speed Data Transmission: Fiber optic patch cords are the preferred choice for high-speed data transmission in data centers due to their ability to carry large amounts of data over long distances with minimal signal degradation. With the increasing demand for bandwidth-hungry applications such as cloud computing, video streaming, and big data analytics, fiber optic patch cords provide a reliable and scalable solution for high-speed data transmission.
b.Flexibility: In data centers, patch cords are used to connect equipment that needs to be moved or reconfigured frequently, such as servers and switches. Using fiber optic patch cords enables quick and easy modifications to the network infrastructure without requiring any major changes to the cabling.
c.Space Optimization: High-capacity data centers require a large number of cables to connect the various components of the network. Fiber optic patch cords are much smaller and more flexible than copper cables, allowing for higher density cabling and increased space optimization within the data center.
d.Interoperability: Fiber optic patch cords come in different types of connectors that make interoperability between different equipment and vendors easier. This allows for greater flexibility in designing and upgrading data center networks.
e.Reliability: Fiber optic patch cords have a much lower failure rate compared to copper cables, making them highly reliable for mission-critical applications in data centers. They are also less susceptible to electromagnetic interference (EMI), crosstalk, and attenuation, providing more stable and consistent performance.

Fiber optic patch cords are a critical component in high-capacity data centers, providing high-speed data transmission, flexibility, space optimization, interoperability, and reliability. As data center networks continue to grow in complexity, the importance of fiber optic patch cords will only increase as they provide a scalable and efficient solution for interconnecting various network components.


5. What issues should be noted when using fiber optic patch cords?
When using fiber optic patch cords, several issues should be noted to ensure proper performance and avoid potential problems. Some of the key issues are:
a.Connector Compatibility: It is important to ensure that the patch cord connector type is compatible with the equipment or devices it is being connected to. Using incompatible connectors can result in poor performance or even damage to the equipment.
b.Fiber Type: The choice of fiber type should be based on the application and equipment requirements. For example, single-mode fibers are suitable for long-distance transmission due to their low attenuation, while multimode fibers are better for short distances due to their larger core size.
c.Cable Length: It is crucial to use the appropriate cable length for the application to minimize signal loss and ensure proper transmission quality. Excessively long cables can cause excessive attenuation, while excessively short cables can cause signal reflections.
d.Bend Radius: Fiber optic patch cords have a minimum bend radius that must be observed during installation to prevent damage to the fiber. Bending the cable too much can cause microcracks in the fiber, leading to signal loss or failure.
e.Mechanical Stress: Fiber optic patch cords can be damaged by mechanical stress from pulling, twisting, or crushing. Proper strain relief and cable management should be used to avoid putting undue stress on the cable.
f.Contamination: Dust, oil, and other contaminants can accumulate on the end faces of the connectors, causing signal degradation or loss. It is essential to keep the connectors clean and inspect them regularly for signs of contamination.
g.Temperature Range: Fiber optic patch cords may have different temperature ratings depending on the materials used for the jacketing and other components. It is important to choose a patch cord that is rated for the temperature range of the application to avoid damage or failure.

To ensure proper performance and avoid issues when using fiber optic patch cords, it is important to consider connector compatibility, fiber type, cable length, bend radius, mechanical stress, contamination, and temperature range. By following these guidelines, users can minimize signal loss and maintain the reliability and performance of their fiber optic networks.

Fiber optic patch cords have revolutionized the way we transmit and receive data. Their construction, functionality, and applications make them an essential component in modern communication networks. As technology continues to advance, the demand for faster and more reliable communication systems will only increase, further solidifying the importance of fiber optic patch cords in enabling seamless connectivity.
