Fiber Optic Adapter FAQs

Fiber Optic Adapter FAQs

In today's fast-paced digital world, the demand for high-speed and reliable internet connections has become increasingly important. With the ever-growing need for faster data transmission, fiber optic technology has emerged as the go-to solution. Fiber optic cables have revolutionized the way data is transmitted, allowing for faster and more efficient communication. However, to fully utilize the benefits of fiber optic technology, the use of fiber optic adapters is crucial.

1. What is a fiber optic adapter?
A fiber optic adapter is a passive fiber optic interconnect device used to connect two fiber optic cables together to create a longer cable or to change the connector type. Fiber optic adapters allow fiber optic signals and light to pass through while providing reliable connections between fiber optic components. It typically consists of two female connectors that can be joined together to form a connection between two male connectors on separate fibers. Adapters may also provide compatibility between different types of fiber optic connectors, allowing users to connect cables with different connector types.

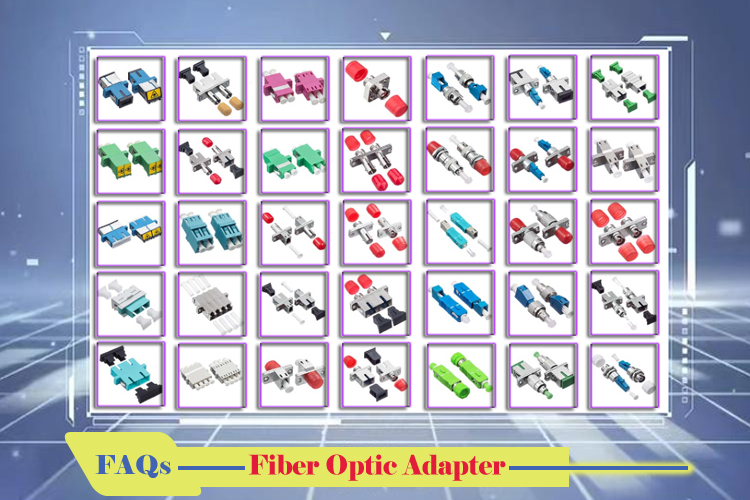

2. What are the common types of fiber optic adapters?
 The common types of fiber optic adapters include:
• LC adapters: miniature high-density adapters, ideal for tight spaces.
• SC adapters: most popular fiber optic adapters, good combination of size and performance.
• ST adapters: diameter similar to BNC connectors, provides good power handling capability.
• FC adapters: very durable with high-speed/low-loss performance, commonly used for long-distance networks.
• MPO adapters: high-fiber count adapters for connecting fiber optic cables with 12, 24 or 48 fibers. Used in data centers and trunk lines.
The differences between them lie in their interface structures, and the choice should be based on the specific needs of the network.


3. How do you choose the right fiber optic adapter?
Choosing the right fiber optic adapter depends on several factors, including the type of connector used in your fiber optic cable, the type of equipment you are connecting, and the environment in which the adapter will be used.

First, you need to identify the type of connector used in your fiber optic cable. There are several types of connectors, including LC, SC, ST, FC, and MTRJ. Each connector type has a corresponding adapter that is designed to mate with it.

Next, you need to consider the type of equipment you are connecting. For example, if you are connecting two switches, you may need a duplex adapter that can accommodate two connectors. If you are connecting a patch cable to a transceiver, you may need a simplex adapter that can accommodate one connector.

Finally, you need to consider the environment in which the adapter will be used. If the adapter will be used in a harsh environment, such as outdoors or in an industrial setting, you may need a ruggedized adapter that is designed to withstand extreme temperatures, moisture, and vibration.

In summary, to choose the right fiber optic adapter, you need to identify the type of connector used in your fiber optic cable, consider the type of equipment you are connecting, and consider the environment in which the adapter will be used.


4. What are the technical specifications of fiber optic adapters?
The technical specifications of fiber optic adapters can vary depending on the specific type and model of the adapter. However, some common technical specifications include:

Connector type: The connector type of the adapter should match the connector type of the fiber optic cable being used.

Insertion loss: This is the amount of signal loss that occurs when light passes through the adapter. The lower the insertion loss, the better the adapter.

Return loss: This is the amount of light that is reflected back towards the source due to imperfections in the adapter. The higher the return loss, the better the adapter.

Operating temperature range: This is the range of temperatures in which the adapter can operate without being damaged or experiencing performance issues.

Durability: This refers to the ability of the adapter to withstand repeated mating and unmating cycles without being damaged.

Compatibility: The adapter should be compatible with the specific type of fiber optic cable and equipment being used.

Housing material: The material used to construct the adapter can affect its durability and performance.

Color coding: Some adapters may be color-coded to help identify the connector type or polarity.

It's important to note that the technical specifications of fiber optic adapters can vary depending on the manufacturer and model. It's always a good idea to consult the manufacturer's specifications to ensure that the adapter meets your specific needs.


5. What tests are needed for fiber optic adapters?
There are several tests that can be performed on fiber optic adapters to ensure their performance and reliability. Some of the most common tests include:

Insertion loss testing: This test measures the amount of signal loss that occurs when light passes through the adapter. It is typically performed using an optical power meter and a calibrated light source.

Return loss testing: This test measures the amount of light that is reflected back towards the source due to imperfections in the adapter. It is typically performed using an optical time-domain reflectometer (OTDR).

Durability testing: This test involves repeatedly mating and unmating the adapter to ensure that it can withstand repeated use without being damaged.

Temperature cycling testing: This test involves subjecting the adapter to a range of temperatures to ensure that it can operate reliably in different environments.

Vibration testing: This test involves subjecting the adapter to vibration to ensure that it can withstand the rigors of use in industrial or outdoor environments.

Environmental testing: This test involves subjecting the adapter to various environmental conditions, such as humidity, dust, and temperature extremes, to ensure that it can operate reliably in harsh conditions.

It's important to note that the specific tests required for a fiber optic adapter may vary depending on the application and the manufacturer's specifications. It's always a good idea to consult the manufacturer's documentation to determine the appropriate testing procedures for a particular adapter.

Fiber optic adapters play a vital role in enabling efficient data transmission in fiber optic networks. These adapters provide a secure and reliable connection between fiber optic cables, minimizing signal loss and ensuring the integrity of the transmitted data. With various types available, each with its own unique features and advantages, it is important to choose the right adapter for the specific application. By doing so, businesses and individuals can fully harness the benefits of fiber optic technology and enjoy faster and more reliable internet connections.
